Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle

Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle
Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle

Large Image :  Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-PA535
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000 PCS Per 7 Days
Contact Now

Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle

Description
Cable Diameter: 2-8mm Clamp Type: 1 - 2 Pair Drop Wire Clamp
Suitable: Outdoor Use Clamp Capacity: 1-4 Fibers
Mounting Type: Pole Mount Conduit Box Material: Nylon (UV Resistance)
Highlight:

Outdoor Suspension Cable Clamp

,

Outdoor Flat Drop Cable Clamp

,

Single Suspension Cable Clamp

Outdoor Single Cable Drop Wire Suspension Clamp Thermoplastic Handle

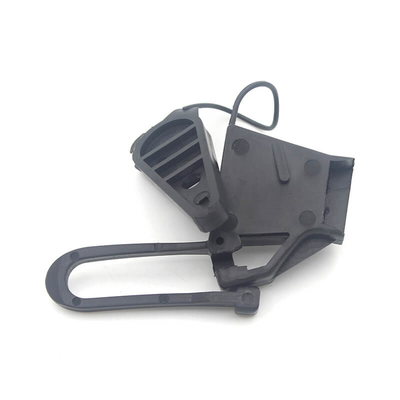

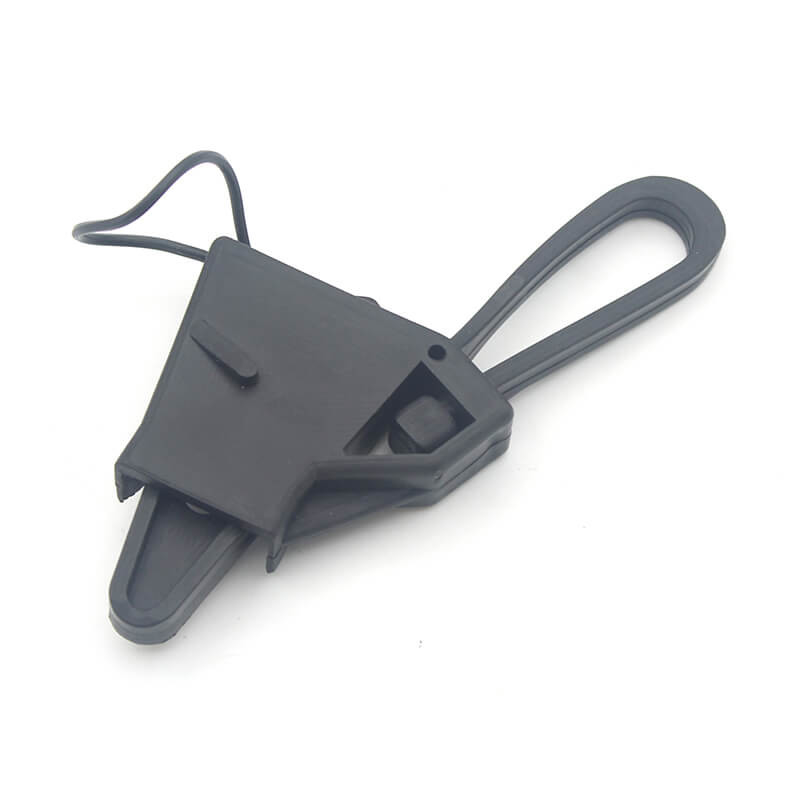

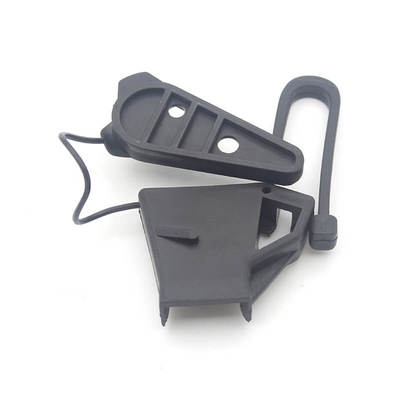

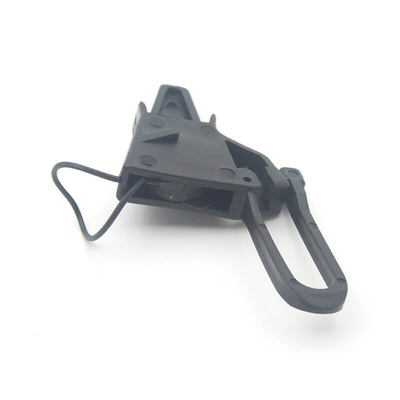

Dead-ending and suspension of flat drop wires 5/9 et 5/99. Single piece thermoplastic drop clamp, designed with a closed conical body shape, a flat wedge connected to the body, through a flexible link ensuring its captivity and an opening bail.

Specification:

1.1 May be re-entered and reused.

1.2 Easy cable slack adjustment to apply proper tension.
1.3 Weather and corrosion resistant plastic components.
1.4 No special tools required for installation.
Application:
2.1 Pass the free end of the plastic bail through the ring or cross-arm,lock the bail into the clamp body.
2.2 Form a loop with the drop wire. Pass this loop through the stretched end of the clamp body. Place the clamp wedge into the loop.
2.3 Adjust the drop wire load, sag by pulling the dropwire through the wedge of the clamp.
2.4 Cable tie and suspension for copper to TE1SE cable. Ideal for flat cables of 8x3 mm or round cables Ø7 mm.
Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle 0
Dimension
Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle 1
Our Package
Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle 2
Production Flow
Outdoor Single Suspension Cable Clamp Flat Drop Cable Clamp Thermoplastic Handle 3
