Product Details:
|
| Mode Type: | SM, MM | Fiber Type: | G652D/G657A |
|---|---|---|---|
| Connector Type: | SC, LC, FC, ST, E2000N, MTRJN, MPO | Jacket: | PVC, LSZH |

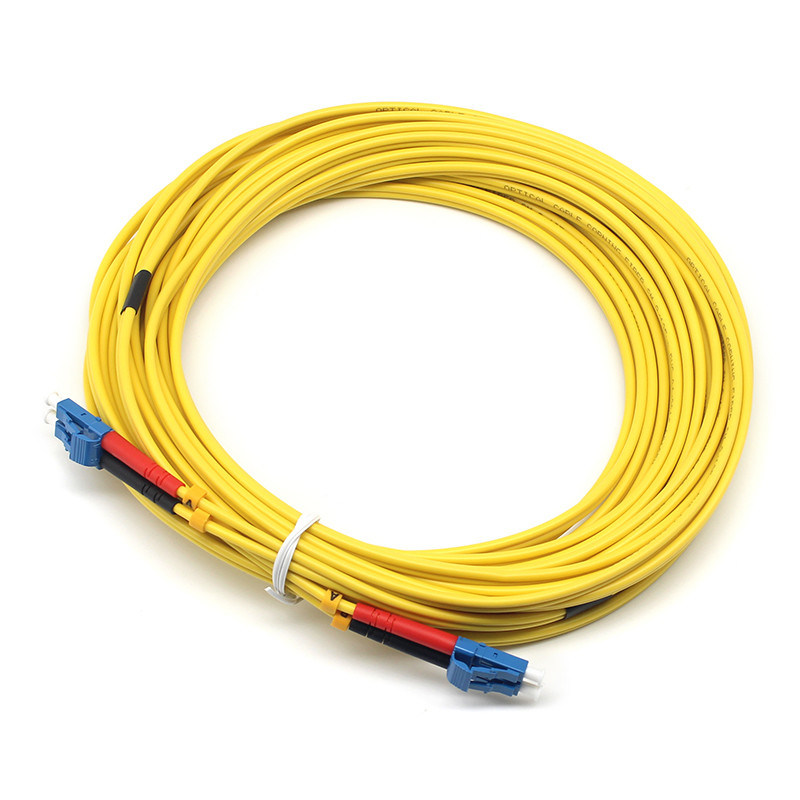

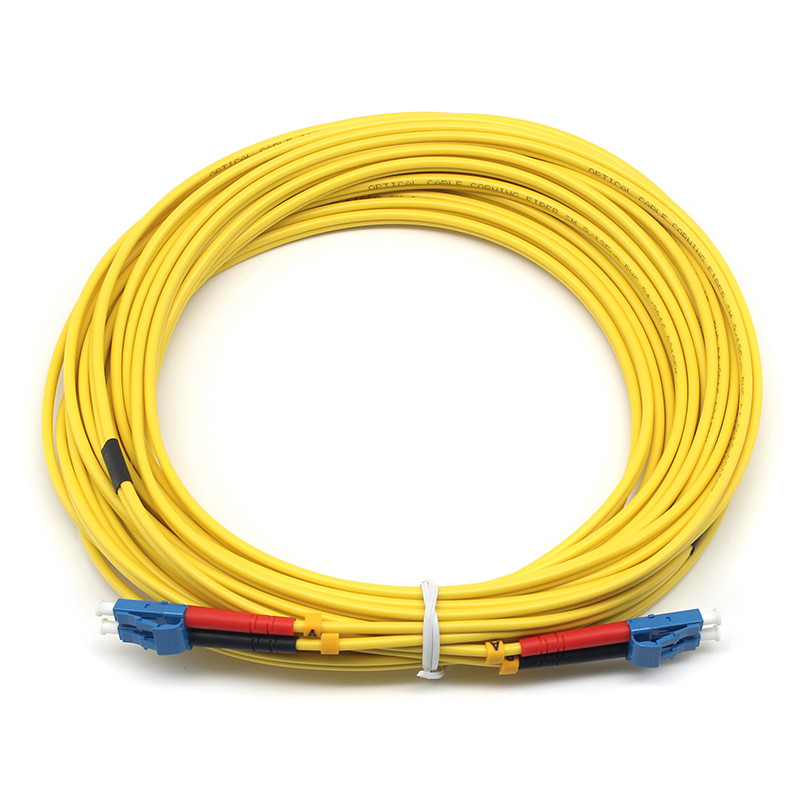

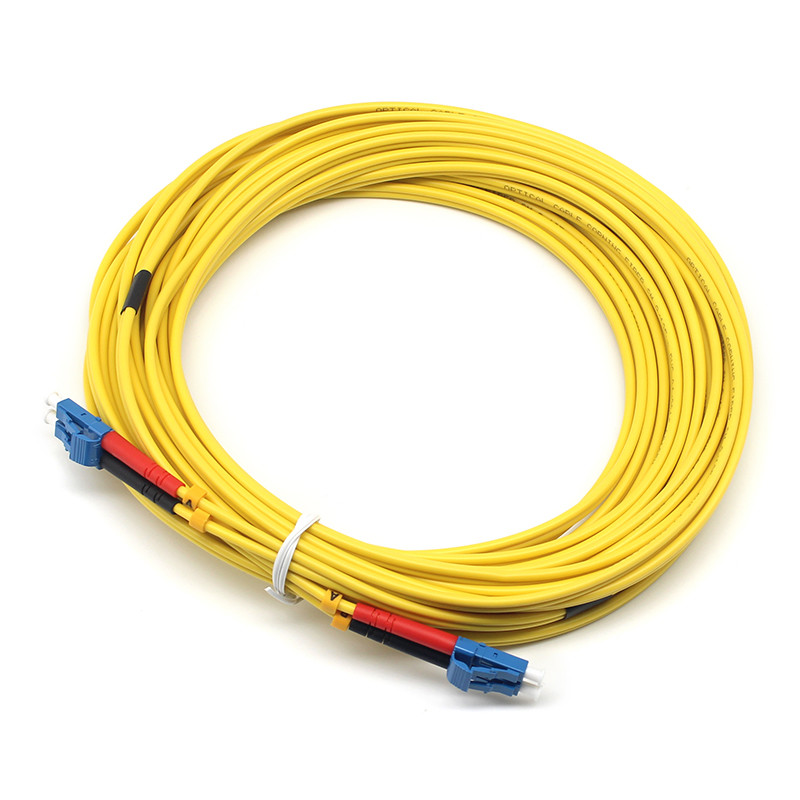

DX LC UPC to LC UPC SM G657A1 3.0MM Fiber Optic Patch Cord
Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.
Specification
| Parameter | Unit | Mode | PC | UPC | APC |
| Type | |||||
| Insertion Loss | dB | SM | <0.3 | <0.3 | <0.3 |
| MM | <0.3 | <0.3 | |||
| Return Loss | dB | SM | >50 | >50 | >60 |
| MM | >35 | >35 | |||
| Repeatability | dB | Additional loss<0.1db, return loss< 5 dB | |||
| Interchangeability | dB | Additional loss<0.1db, return loss< 5 dB | |||
| Connection Times | times | >1000 | |||
| Operating Temperature | °C | -40 C- +75 C | |||
| Storage Temperature | °C | -40 C- +85 C | |||

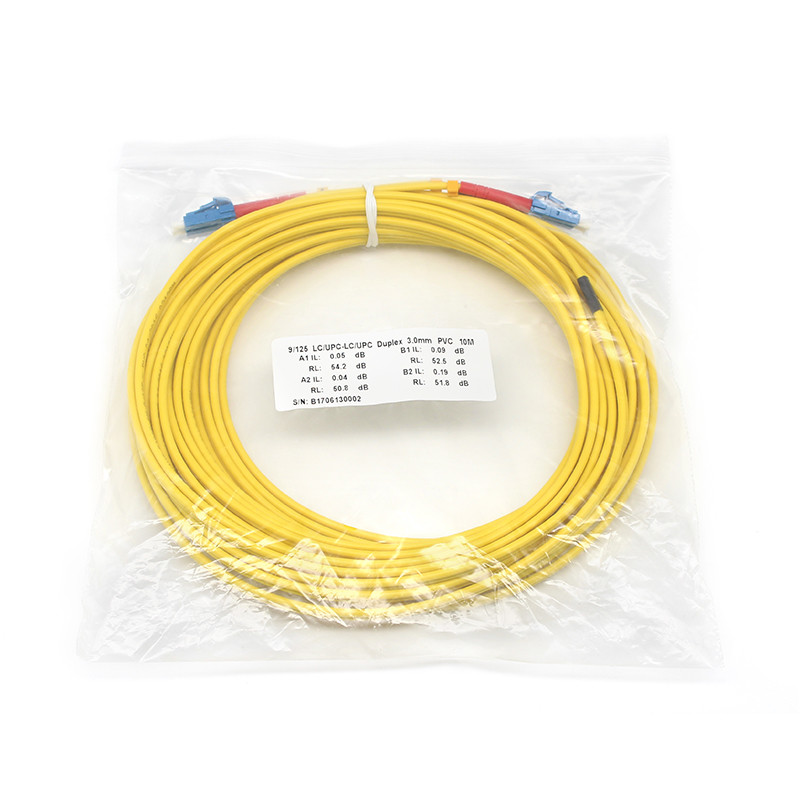

Package
1. Plastic Bag
2. Inner Box
3. Outer Box
Application
1. Telecommunication Network
2. Fiber Broad Band Network
3. CATV system
4. LAN and WAN system
5. FTTP
