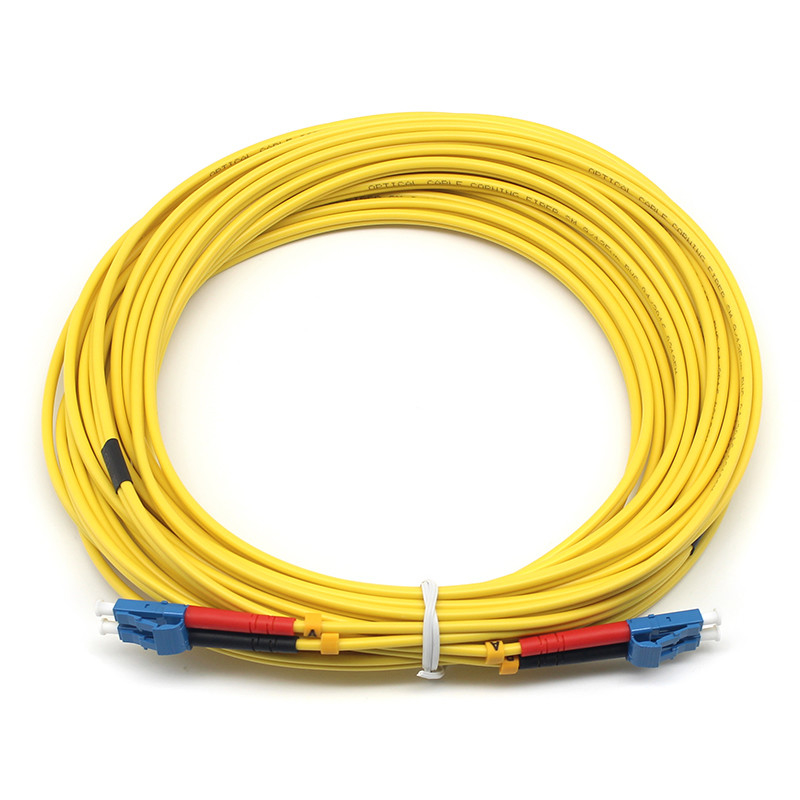

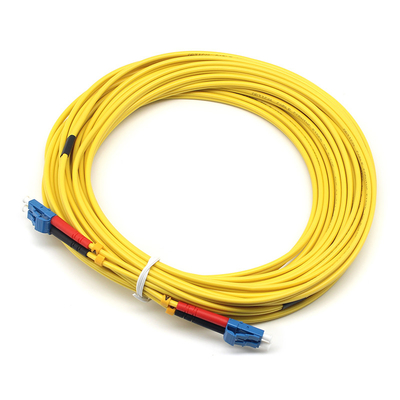

3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex

3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex
3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex
3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex 3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex 3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex 3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex

Large Image :  3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Certification: CE
Model Number: DW-LUD-LUD
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex

Description
Mode Type: SM, MM Fiber Type: G652D/G657A
Connector Type: SC, LC, FC, ST, E2000N, MTRJN, MPO Jacket: PVC, LSZH
Highlight:

3.0mm Multimode Patch Cable

,

Simplex Multimode Patch Cable

,

Simplex Single Mode Fibre Patch Leads

DX LC UPC to LC UPC SM G657A1 3.0MM Fiber Optic Patch Cord

Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

Specification

Parameter Unit Mode PC UPC APC
Type
Insertion Loss dB SM <0.3 <0.3 <0.3
MM <0.3 <0.3
Return Loss dB SM >50 >50 >60
MM >35 >35
Repeatability dB Additional loss<0.1db, return loss< 5 dB
Interchangeability dB Additional loss<0.1db, return loss< 5 dB
Connection Times times >1000
Operating Temperature °C -40 C- +75 C
Storage Temperature °C -40 C- +85 C

Package

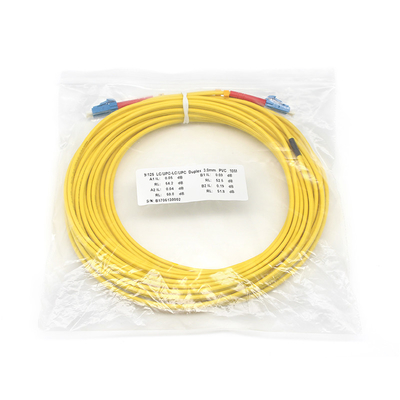

1. Plastic Bag

3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex 0

2. Inner Box

3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex 1

3. Outer Box

3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex 2

Application

1. Telecommunication Network
2. Fiber Broad Band Network
3. CATV system
4. LAN and WAN system
5. FTTP

3.0mm Multimode Patch Cable Single Mode Fibre Patch Leads Simplex 3
