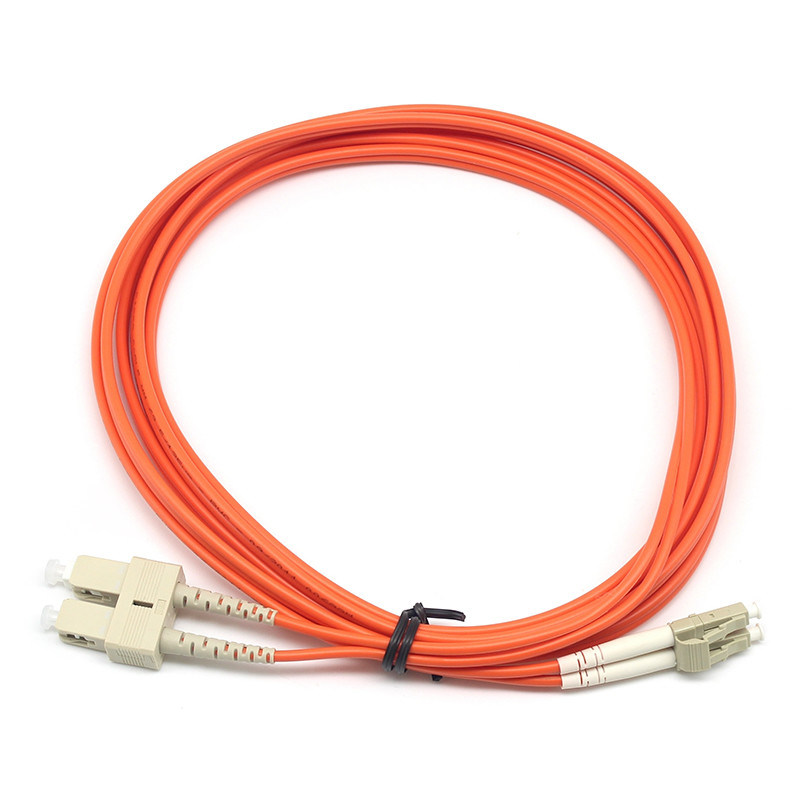

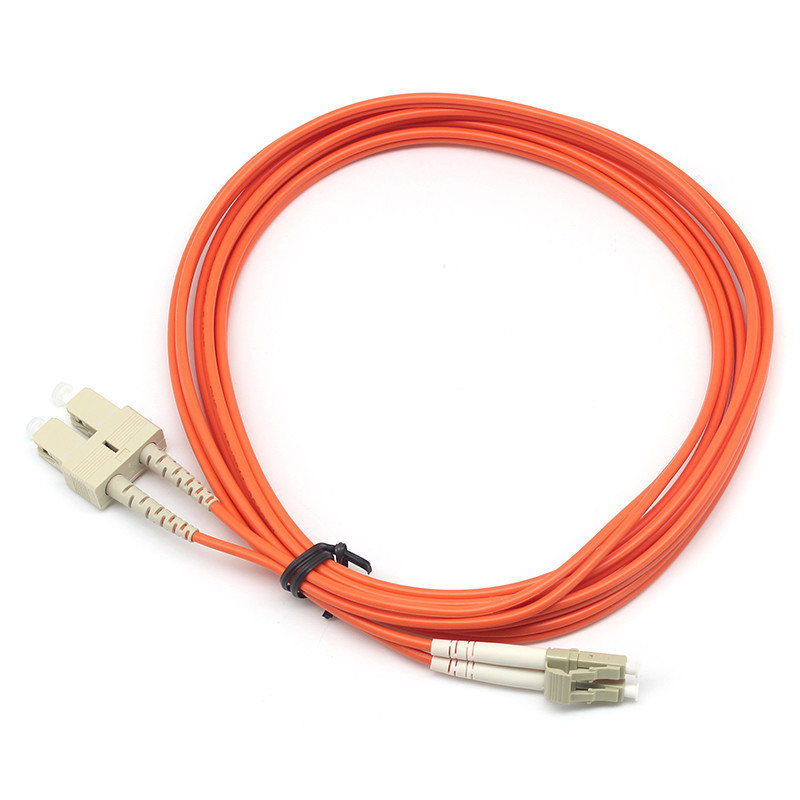

High-Performance Duplex Fiber Optic Patch Cord LC PC to SC PC

High-Performance Duplex Fiber Optic Patch Cord LC PC to SC PC
High-Performance Duplex Fiber Optic Patch Cord LC PC to SC PC
High-Performance Duplex Fiber Optic Patch Cord LC PC to SC PC High-Performance Duplex Fiber Optic Patch Cord LC PC to SC PC High-Performance Duplex Fiber Optic Patch Cord LC PC to SC PC High-Performance Duplex Fiber Optic Patch Cord LC PC to SC PC

Large Image :  High-Performance Duplex Fiber Optic Patch Cord LC PC to SC PC

Product Details:
Place of Origin: China
Brand Name: DOWELL
Certification: CE
Model Number: DW-LPD-SPD-M1
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

High-Performance Duplex Fiber Optic Patch Cord LC PC to SC PC

Description
Mode: SM, MM Fiber: G652D/G657A
Connector: SC, LC, FC, ST, E2000N, MTRJN, MPO Jacket: PVC, LSZH
Length: Any Length Is Customizable Color: Yellow Or Cusomized
Highlight:

Outdoor Fiber Optic Patch Cord

,

Outdoor sc fiber cable

,

High Speed Fiber Optic Patch Cord

Duplex LC PC to SC PC OM1 MM Fiber Optic Patch Cord

Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

Specification:

Parameter Unit Mode PC UPC APC
Type
Insertion Loss dB SM <0.3 <0.3 <0.3
MM <0.3 <0.3
Return Loss dB SM >50 >50 >60
MM >35 >35
Repeatability dB Additional loss<0.1db, return loss< 5 dB
Interchangeability dB Additional loss<0.1db, return loss< 5 dB
Connection Times times >1000
Operating Temperature °C -40 C- +75 C
Storage Temperature °C -40 C- +85 C

Application:

1.1 CATV System
1.2 Telecommunications
1.3 Optical Nteworks
1.4 FTTH (Fiber to the Home)
1.5 High speed transmission Systems
1.6 Testing / Measurement In struments

Package:

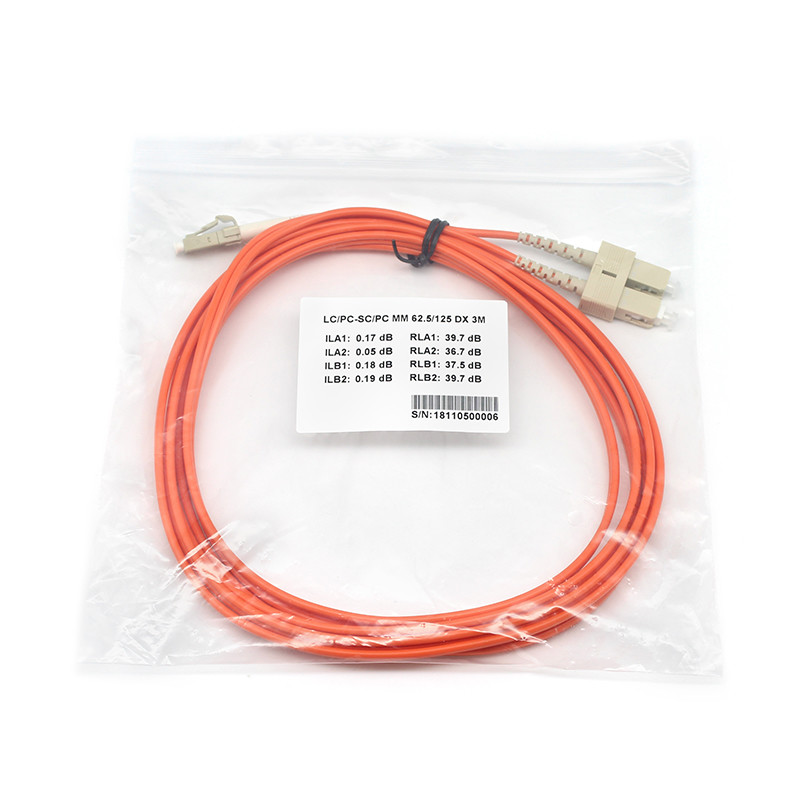

1. Plastic bag

High-Performance Duplex Fiber Optic Patch Cord LC PC to SC PC 0

2. Inner Box

High-Performance Duplex Fiber Optic Patch Cord LC PC to SC PC 1

3. Outer Box

High-Performance Duplex Fiber Optic Patch Cord LC PC to SC PC 2
