LSZH PVC Om4 Patch Cable Multimode Fibre Patch Leads 0.9mm 2.0mm 3.0mm

LSZH PVC Om4 Patch Cable Multimode Fibre Patch Leads 0.9mm 2.0mm 3.0mm
LSZH PVC Om4 Patch Cable Multimode Fibre Patch Leads 0.9mm 2.0mm 3.0mm
LSZH PVC Om4 Patch Cable Multimode Fibre Patch Leads 0.9mm 2.0mm 3.0mm LSZH PVC Om4 Patch Cable Multimode Fibre Patch Leads 0.9mm 2.0mm 3.0mm LSZH PVC Om4 Patch Cable Multimode Fibre Patch Leads 0.9mm 2.0mm 3.0mm LSZH PVC Om4 Patch Cable Multimode Fibre Patch Leads 0.9mm 2.0mm 3.0mm

Large Image :  LSZH PVC Om4 Patch Cable Multimode Fibre Patch Leads 0.9mm 2.0mm 3.0mm

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Certification: CE
Model Number: DW-LUS-MUS
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

LSZH PVC Om4 Patch Cable Multimode Fibre Patch Leads 0.9mm 2.0mm 3.0mm

Description
Interface: SC SC Simplex Cable Dimension: 0.9mm, 2.0mm,3.0mm
Length: Customized Color: Yellow Or Cusomized
Connector Type: LC, SC, SC LC FC ST MU Fiber Type: Simplex And Duplex, G652D, G655, Anything, SM Or MM
Highlight:

LSZH Om4 Patch Cable

,

PVC Om4 Patch Cable

,

PVC Multimode Fibre Patch Leads

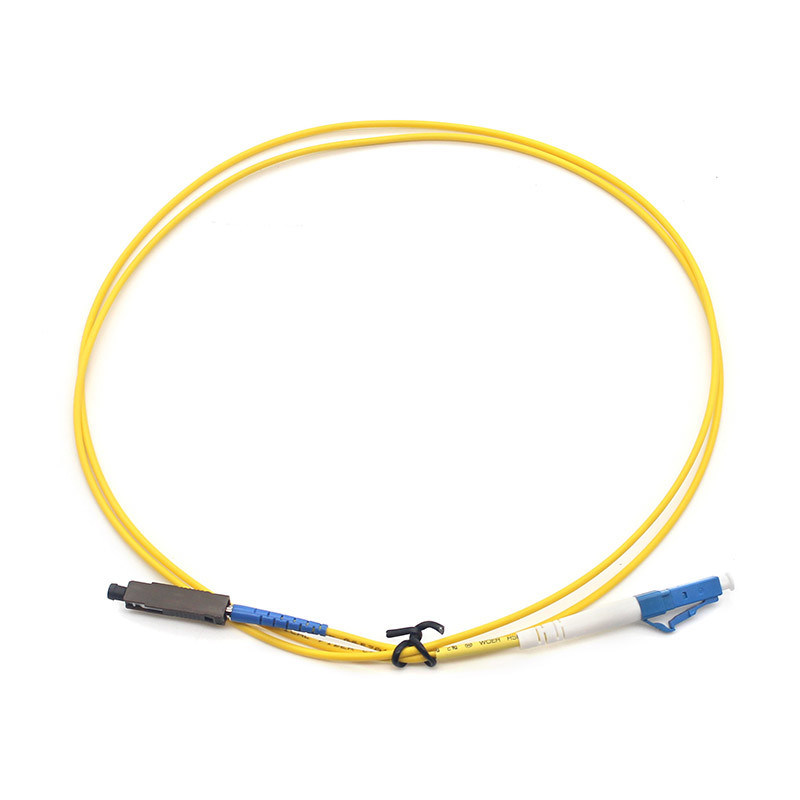

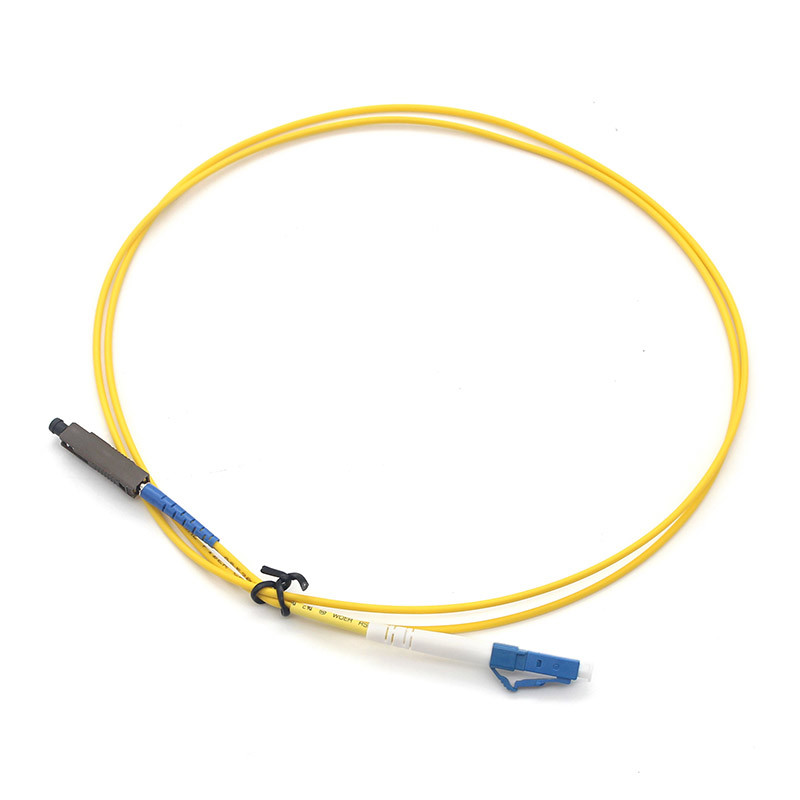

Simplex LC UPC to MU UPC SM LSZH PVC Fiber Optic Patch Cord

Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

Specification:

Parameter Unit Mode PC UPC APC
Type
Insertion Loss dB SM <0.3 <0.3 <0.3
MM <0.3 <0.3
Return Loss dB SM >50 >50 >60
MM >35 >35
Repeatability dB Additional loss<0.1db, return loss< 5 dB
Interchangeability dB Additional loss<0.1db, return loss< 5 dB
Connection Times times >1000
Operating Temperature °C -40 C- +75 C
Storage Temperature °C -40 C- +85 C

Application:

1. Telecommunication Network
2. Fiber Broad Band Network
3. CATV system
4. LAN and WAN system
5. FTTP

LSZH PVC Om4 Patch Cable Multimode Fibre Patch Leads 0.9mm 2.0mm 3.0mm 0

Production Flow:

LSZH PVC Om4 Patch Cable Multimode Fibre Patch Leads 0.9mm 2.0mm 3.0mm 1

Our Package:

 LSZH PVC Om4 Patch Cable Multimode Fibre Patch Leads 0.9mm 2.0mm 3.0mm 2

Tag:

fibre patch leads,

fiber jumper cables,

multimode patch cable
