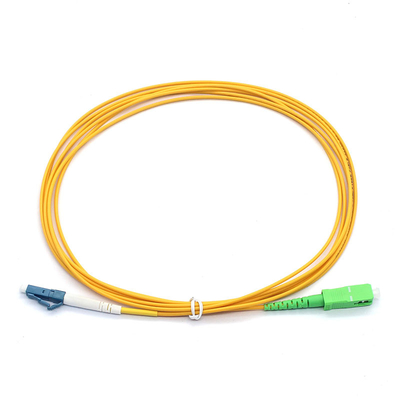

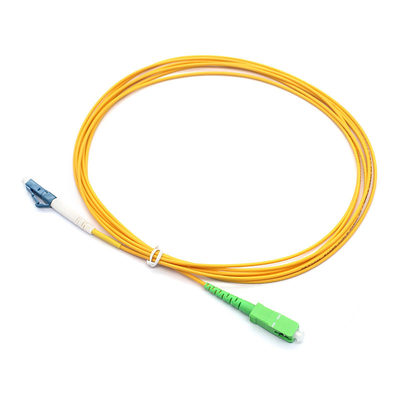

Simplex 9/125µM St Fiber Patch Cable SC APC To LC UPC SM Fiber Broad Band Network

Simplex 9/125µM St Fiber Patch Cable SC APC To LC UPC SM Fiber Broad Band Network
Simplex 9/125µM St Fiber Patch Cable SC APC To LC UPC SM Fiber Broad Band Network
Simplex 9/125µM St Fiber Patch Cable SC APC To LC UPC SM Fiber Broad Band Network Simplex 9/125µM St Fiber Patch Cable SC APC To LC UPC SM Fiber Broad Band Network Simplex 9/125µM St Fiber Patch Cable SC APC To LC UPC SM Fiber Broad Band Network Simplex 9/125µM St Fiber Patch Cable SC APC To LC UPC SM Fiber Broad Band Network

Large Image :  Simplex 9/125µM St Fiber Patch Cable SC APC To LC UPC SM Fiber Broad Band Network

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Certification: CE
Model Number: DW-SAS-LUS
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

Simplex 9/125µM St Fiber Patch Cable SC APC To LC UPC SM Fiber Broad Band Network

Description
Mode Type: SM, MM Fiber Type: G652D/G657A
Connector: SC, LC, FC, ST, E2000N, MTRJN, MPO Jacket: PVC, LSZH
Color: Yellow Or Cusomized Length: Any Length Is Customizable
Highlight:

SC St Fiber Patch Cable

,

SC multimode fiber jumpers

,

SM St Fiber Patch Cable

Simplex SC APC to LC UPC SM Fiber Optic Patch Cord

Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

Specification:

Parameter Unit Mode PC UPC APC
Type
Insertion Loss dB SM <0.3 <0.3 <0.3
MM <0.3 <0.3
Return Loss dB SM >50 >50 >60
MM >35 >35
Repeatability dB Additional loss<0.1db, return loss< 5 dB
Interchangeability dB Additional loss<0.1db, return loss< 5 dB
Connection Times times >1000
Operating Temperature °C -40 C- +75 C
Storage Temperature °C -40 C- +85 C

Application:

1. Telecommunication Network
2. Fiber Broad Band Network
3. CATV system
4. LAN and WAN system
5. FTTP

Production Flow:

Simplex 9/125µM St Fiber Patch Cable SC APC To LC UPC SM Fiber Broad Band Network 0

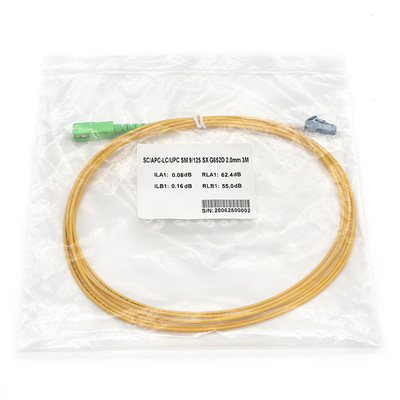

Our Package:

Simplex 9/125µM St Fiber Patch Cable SC APC To LC UPC SM Fiber Broad Band Network 1
