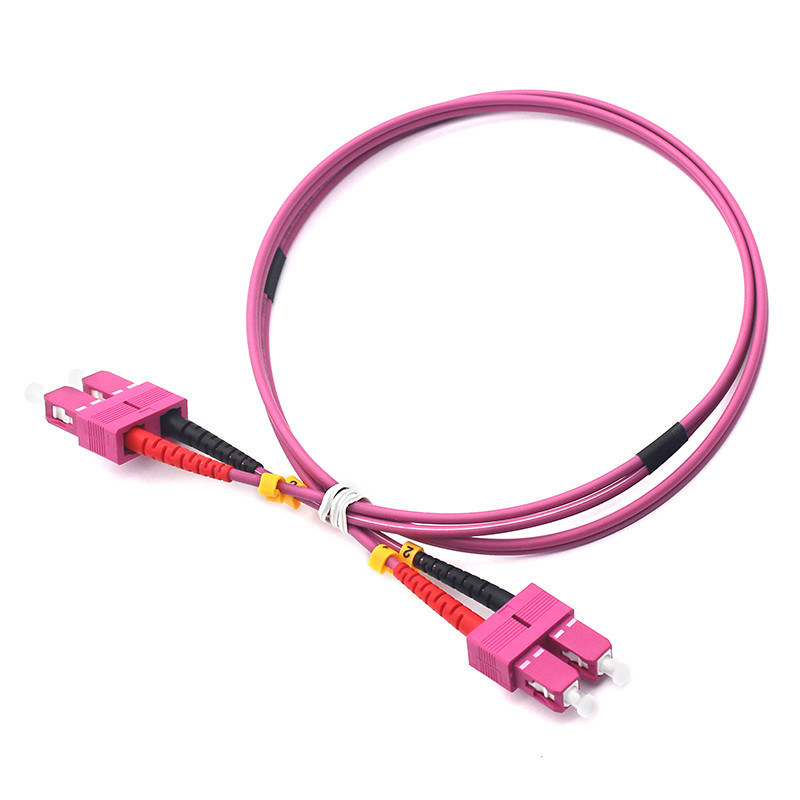

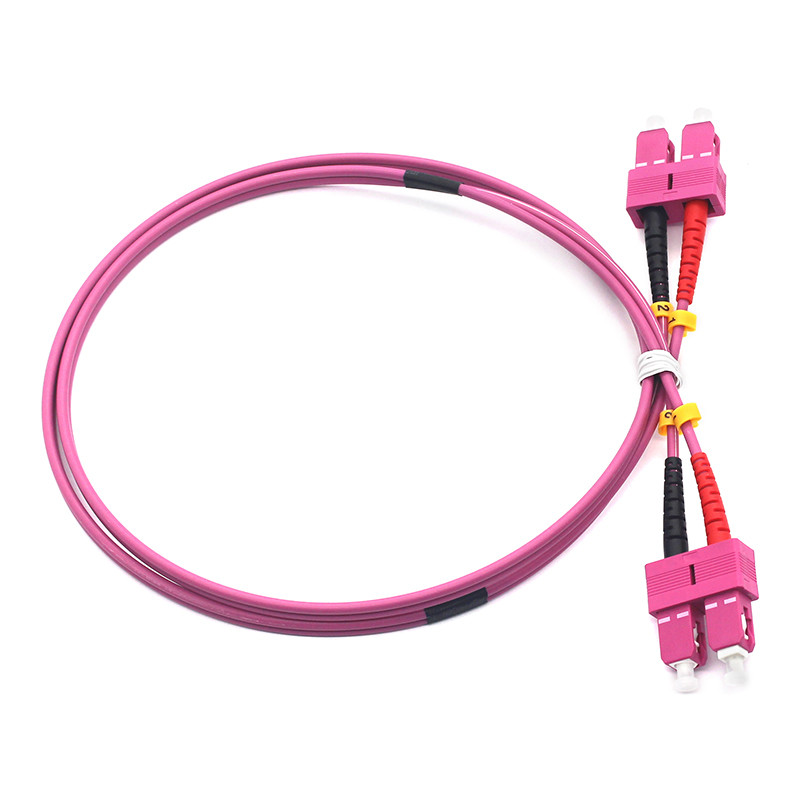

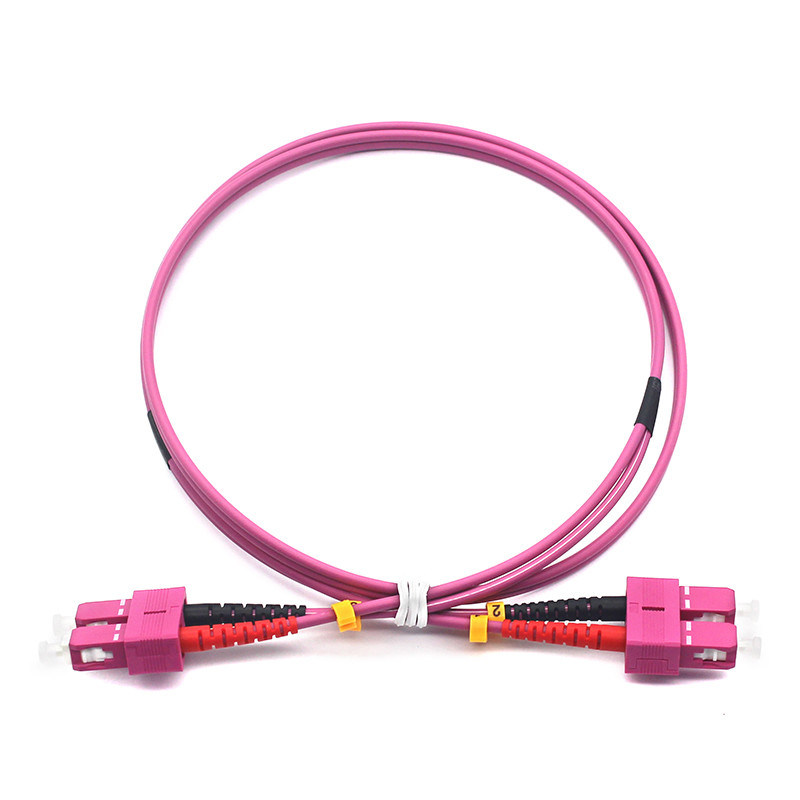

High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission

High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission
High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission
High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission

Large Image :  High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Certification: CE
Model Number: DW-SPD-SPD-M4
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission

Description
Mode: SM, MM Fiber: G652D/G657A
Jacket: PVC, LSZH Connector: SC, LC, FC, ST, E2000N, MTRJN, MPO
Length: Any Length Is Customizable Color: Yellow Or Cusomized
Highlight:

FTTH St To Lc Patch Cable

,

FTTH Multimode Fiber Patch Cable

,

OM4 St To Lc Patch Cable

High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission

Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

Specification:

Parameter Unit Mode PC UPC APC
Type
Insertion Loss dB SM <0.3 <0.3 <0.3
MM <0.3 <0.3
Return Loss dB SM >50 >50 >60
MM >35 >35
Repeatability dB Additional loss<0.1db, return loss< 5 dB
Interchangeability dB Additional loss<0.1db, return loss< 5 dB
Connection Times times >1000
Operating Temperature °C -40 C- +75 C
Storage Temperature °C -40 C- +85 C

Application:

1. Telecommunication Network
2. Fiber Broad Band Network
3. CATV system
4. LAN and WAN system
5. FTTP

High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission 0

Production Flow:

High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission 1

Our Package:

High-Performance OM4 MM Fiber Optic Patch Cord SC PC to SC PC for Seamless Data Transmission 2

Tag:

fibre patch leads,

fiber jumper cables,

multimode patch cable
