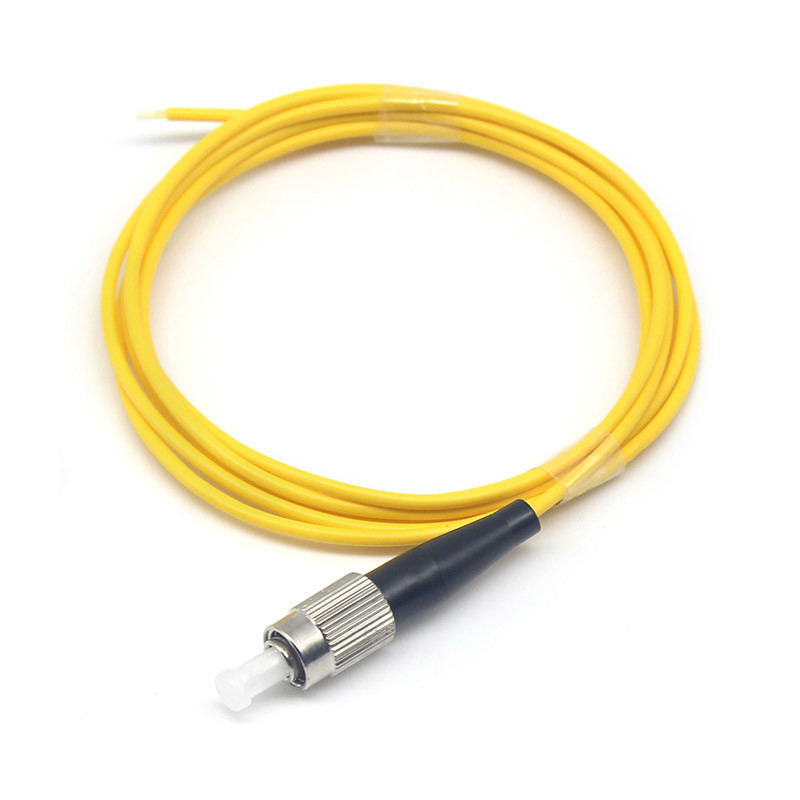

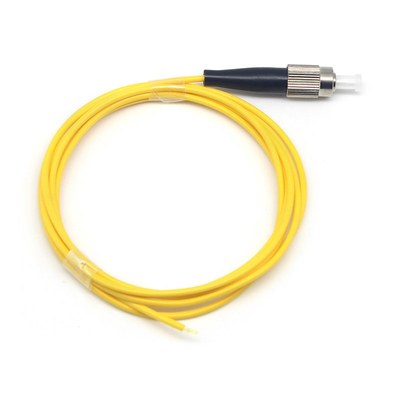

Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector

Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector
Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector
Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector

Large Image :  Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Certification: CE
Model Number: DW-PFU
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector

Description
Mode Type: SM, MM Fiber Type: G652D/G657A
Connector Type: LC, SC, ST And FC Jacket: PVC, LSZH
Length: Any Length Is Customizable Color: Yellow Or Cusomized
Highlight:

SX Sc Apc Fiber Optic Cable

,

Multimode Sc Apc Fiber Optic Cable

,

Multimode lc sc fiber patch cable

Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector

Fiber optic pigtail assemblies are utilized in terminating fiber optic cables via fusion or mechanical splicing. High-quality pigtails combined with correct fusion splicing practices offer the best performance possible for fiber optic cable terminations. We manufacture and distribute a broad range of factory terminated and tested fiber optic pigtail assemblies. These assemblies are available in various fiber types, fiber/cable constructions and connector options.

Specification:

CONNECTOR PERFORMANCE
LC, SC, ST and FC connectors
  Multimode Singlemode
  at 850 and 1300 nm UPC at 1310 and 1550 nm APC at 1310 and 1550 nm
  Typical Typical Typical
Insertion Loss (dB) 0.25 0.25 0.25
Return Loss (dB) - 55 65

Application:

1.1 Telecommunication Network

1.2 Fiber Broad Band Network

1.3 CATV system

1.4 LAN and WAN system

1.5 FTTP

More Types:

Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector 0

Production Flow:

Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector 1

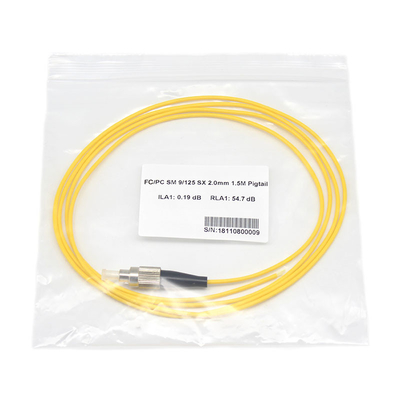

Package:

Multimode and Singlemode Fiber Optic Pigtail Assembly with FC UPC Connector 2
