LSZH Duplex Sc Fiber Patch Cable Lc Fiber Jumper SC/UPC To FC/UPC

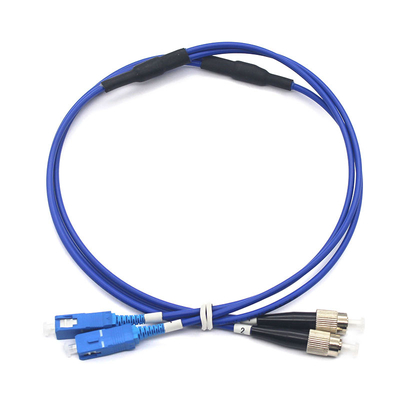

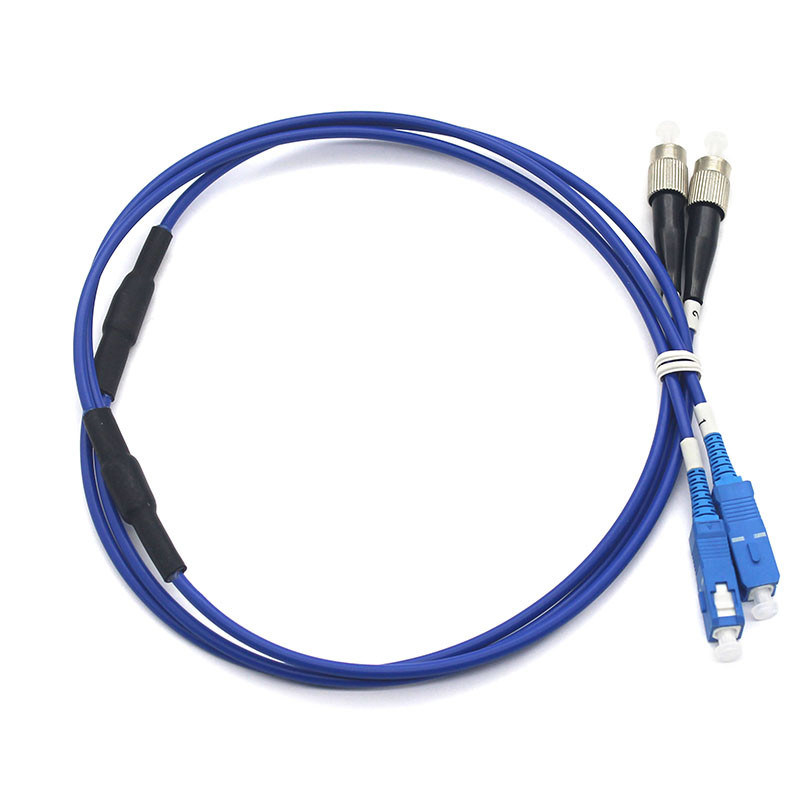

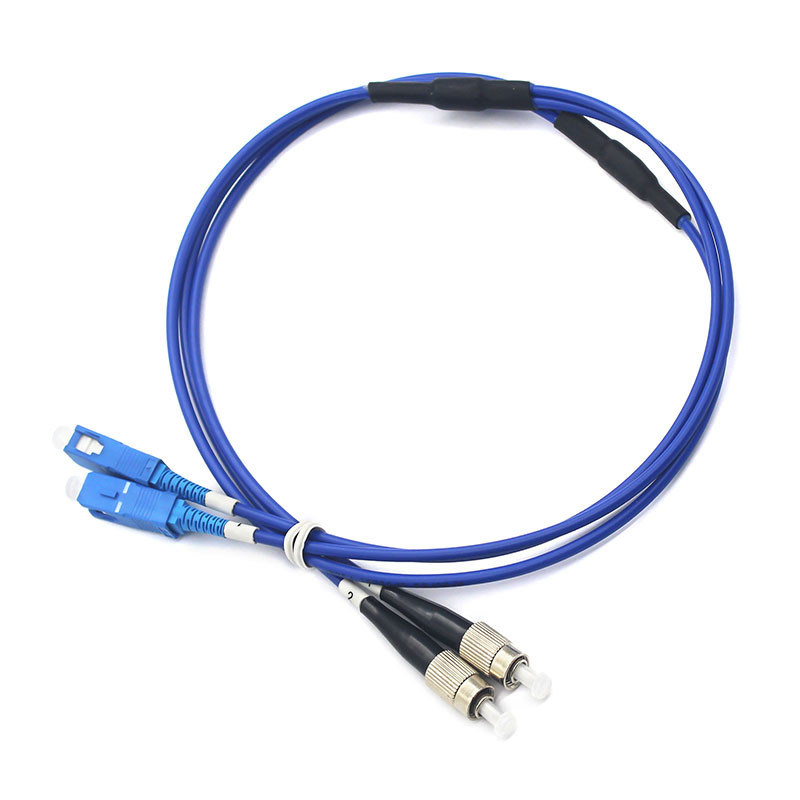

LSZH Duplex SC/UPC to FC/UPC SM Fiber Optic Patch Cord

Fiber patch cord have different fiber connector type : LC, SC,FC,ST,MTP/MPO etc. If you connect two devices with the same interfaces, you can use LC-LC, SC-SC patch cord with the same interface at both ends. If there are two devices with different interfaces, you can choose patch cord with different ends,such as LC-SC or LC-FC etc. Commonly used end face type are APC and UPC. Because the optical fiber loss of APC type is lower than UPC type,so the optical performance of APC type is better than UPC type.The APC type are widely used in FTTX,PON and WDM fiber optic equipment that is more sensitive to return loss. But APC type are usually expensive than UPC type,so you should consider use APC or UPC according to your actual situation.

Specification:

Application:

1.1 CATV

1.2 Computer networks

1.3 Telecommunication networks

1.4 ODF of optical transmission system

1.5 High speed data transmission network

1.6 High quality graphic transmission network

1.7 Connection of optical transmission device

Selection Considerations:

2.1 Distance & Bandwidth: Choose SMF for long-haul, MMF for short-range.

2.2 Environment: Armored or ruggedized for industrial use.

2.3 Connector Compatibility: Match existing equipment (LC/SC/MPO).

2.4 Polish Type: APC for analog/CATV, UPC for digital.

Features:
3.1 Various connector type available
3.2 Low back reflection loss
3.3 Compact size
