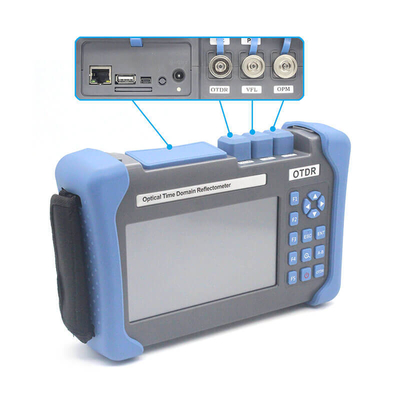

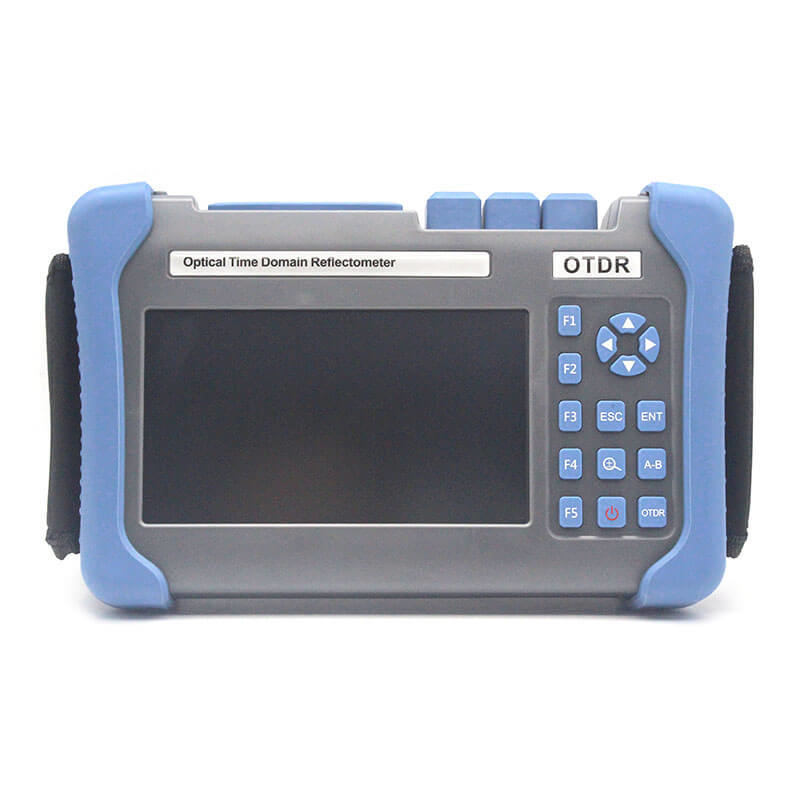

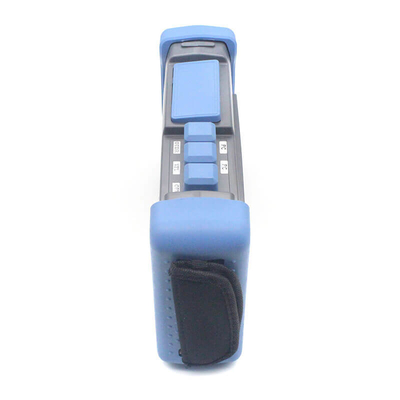

Fiber Optic Muti-function OTDR 7-inch Anti-reflection LCD Screen

Fiber Optic Muti-function OTDR 7-inch Anti-reflection LCD Screen
Fiber Optic Muti-function OTDR 7-inch Anti-reflection LCD Screen Fiber Optic Muti-function OTDR 7-inch Anti-reflection LCD Screen Fiber Optic Muti-function OTDR 7-inch Anti-reflection LCD Screen Fiber Optic Muti-function OTDR 7-inch Anti-reflection LCD Screen

Large Image :  Fiber Optic Muti-function OTDR 7-inch Anti-reflection LCD Screen

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-OTDR
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10 PCS Per 7 Days
Contact Now

Fiber Optic Muti-function OTDR 7-inch Anti-reflection LCD Screen

Description
Type: Cable Tester Use: FTTX FTTH FTTB FTTP
Network: None Dimension: 253X168X73.6mm 1.5kg (battery Included)
Display: 7 Inch TFT-LCD With LED Backlight (touch Screen Function Is Optional) Interface: 1XRJ45 Port, 3XUSB Port (USB 2.0, Type A USBX2, Type B USBX1)
Highlight:

ftth adsl vdsl tester

,

fttx adsl vdsl tester

,

ftth network cable crimping tools

Fiber Optic Muti-function OTDR 7-inch Anti-reflection LCD Screen
OTDR series Optical Time Domain Reflectometer is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; OTDR is specially designed for that kind of application. It's economic, having outstanding performance.
Specification:
Dimension
253×168×73.6mm
1.5kg (battery included)
Display
7 inch TFT-LCD with LED backlight (touch screen function is optional)
Interface
1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1)
Power Supply
10V(dc), 100V(ac) to 240V(ac), 50~60Hz
Battery
7.4V(dc)/4.4Ah lithium battery (with air traffic certification)
Operating time: 12 hours, Telcordia GR-196-CORE
Charging time: <4 hours (power off)
Power Saving
Backlight off: Disable/1 to 99 minutes
Auto shutdown: Disable/1 to 99 minutes
Data Storage
Internal memory: 4GB (about 40,000 groups of curves)
Language
User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for
availability of others)
Environmental Conditions
Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation)
Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)
Proof: IP65 (IEC60529)
Accessories
Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case
Optional: SC/ST/LC adapter, Bare fiber adapter


Type
Testing Wavelength
(MM: ±20nm, SM: ±10nm)
Dynamic Range (dB)
Event Dead-zone (m)
Attenuation Dead-zone (m)
OTDR-S1
1310/1550
32/30
1
8/8
OTDR-S2
1310/1550
37/35
1
8/8
OTDR-S3
1310/1550
42/40
0.8
8/8
OTDR-S4
1310/1550
45/42
0.8
8/8
OTDR-T1
1310/1490/1550
30/28/28
1.5
8/8/8
OTDR-T2
1310/1550/1625
30/28/28
1.5
8/8/8
OTDR-T3
1310/1490/1550
37/36/36
0.8
8/8/8
OTDR-T4
1310/1550/1625
37/36/36
0.8
8/8/8
OTDR-T5
1310/1550/1625
42/40/40
0.8
8/8/8
OTDR-MM/SM
850/1300/1310/1550
28/26/37/36
0.8
8/8/8/8

Application:

1.1 FTTX test with PON networks
1.2 CATV network testing
1.3 Access network testing
1.4 LAN network testing
1.5 Metro network testing
Fiber Optic Muti-function OTDR 7-inch Anti-reflection LCD Screen 0
Package:
Fiber Optic Muti-function OTDR 7-inch Anti-reflection LCD Screen 1
Fiber Optic Muti-function OTDR 7-inch Anti-reflection LCD Screen 2
