Product Details:
|
| Type: | Fiber Optic Patch Cord | Use: | FTTP,CATV |
|---|---|---|---|
| Warranty Time: | 1 Year | Network: | Wireless Lan, Wired LAN, 4g, GSM, 3G, FTTH |

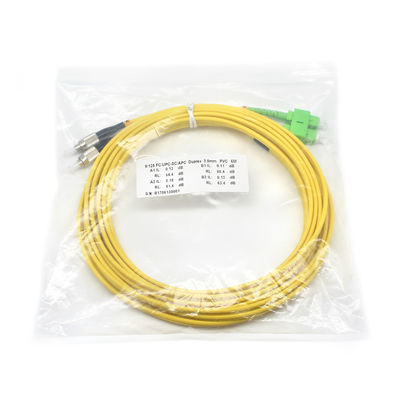

| Product Name: | Duplex FC/UPC To SC/APC SM Fiber Optic Patch Cord | Length: | 3M Or As Your Request |
| Operation Temp: | -40 To +75° C | Warranty: | 1 Year |
| No. Of Fiber: | 2. | Port: | Ningbo |
Parameter | Unit | Mode Type | PC | UPC | APC | |||
Insertion Loss | dB | SM | <0.3 | <0.3 | <0.3 | |||
MM | <0.3 | <0.3 | ||||||
Return Loss | dB | SM | >50 | >50 | >60 | |||
MM | >35 | >35 | ||||||
Repeatability | dB | Additional loss< 0.1, return loss< 5 | ||||||
Interchangeability | dB | Additional loss< 0.1, return loss< 5 | ||||||
Connection Times | times | >1000 | ||||||
Operating Temperature | °C | -40 ~ +75 | ||||||
Storage Temperature | °C | -40 ~ +85 | ||||||
Test Item | Test Condition and Test Result |
Wet-resistance | Condition: under temperature:85°C, relative humidity 85% for 14days. Result: insertion losss0.1dB |
Temperature Change | Condition: under temperature -40°C~+75°C, relative humidity 10 % -80 % , 42 times repetition for 14days. Result: insertion losss0.1dB |
Put in Water | Condition: under temperature 43C, PH5.5 for 7days Result: insertion losss0.1dB |
Vibrancy | Condition: Swing1.52mm, frequency 10Hz~55Hz, X, Y, Z three directions:2 hours Result: insertion losss0.1dB |
Load Bend | Condition: 0.454kg load, 100 circles Result: insertion losss0.1dB |
Load Torsion | Condition: 0.454kgload, 10 circles Result: insertion loss s0.1dB |
Tensibility | Condition: 0.23kg pull (bare fiber), 1.0kg (with shell) Result: insertions0.1dB |
Strike | Condition: High 1.8m, three directions ,8 in each direction Result: insertion losss0.1dB |
Reference Standard | BELLCORE TA-NWT-001209, IEC, GR-326-CORE standard |
