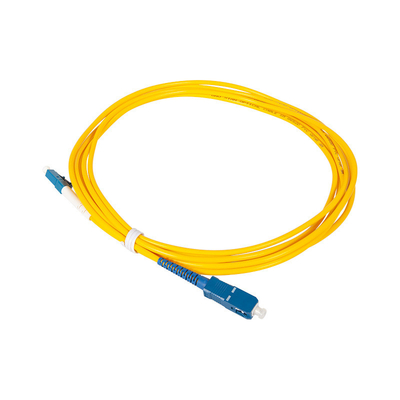

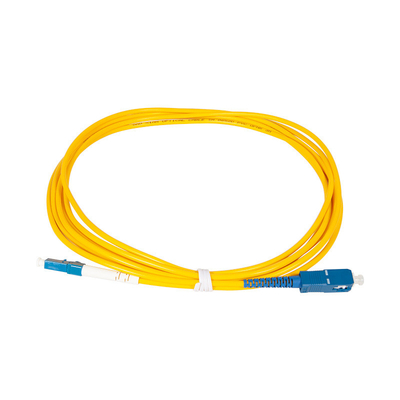

Customizable Length LC UPC To SC UPC Optical Patch Cord SM SX 3M, 5M,10M

Customizable Length LC UPC To SC UPC Optical Patch Cord SM SX 3M, 5M,10M
Customizable Length LC UPC To SC UPC Optical Patch Cord SM SX 3M, 5M,10M
Customizable Length LC UPC To SC UPC Optical Patch Cord SM SX 3M, 5M,10M Customizable Length LC UPC To SC UPC Optical Patch Cord SM SX 3M, 5M,10M Customizable Length LC UPC To SC UPC Optical Patch Cord SM SX 3M, 5M,10M

Large Image :  Customizable Length LC UPC To SC UPC Optical Patch Cord SM SX 3M, 5M,10M

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-LCU-SCU
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000PCS Per 7 Days
Contact Now

Customizable Length LC UPC To SC UPC Optical Patch Cord SM SX 3M, 5M,10M

Description
Insertion Loss: ≤ 0.3 DB For SM Return Loss: ≥ 45 DB (PC)
Repeat Ability: 0.2 DB (500 Cycle Passed) Humidity: 95% RH (Non Packaging)
Operating Temp Range: - 40°C To +75°C Storage Temp Range: - 40°C To +85°C
Highlight:

duplex adsl vdsl tester

,

duplex network cable crimping tools

,

sc adsl vdsl tester

Customizable Length LC UPC To SC UPC Optical Patch Cord SM SX 3M, 5M,10M

Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

Specification:

Parameter Unit Mode PC UPC APC
Type
Insertion Loss dB SM <0.3 <0.3 <0.3
    MM <0.3 <0.3
Return Loss dB SM >50 >50 >60
    MM >35 >35
Repeatability dB Additional loss<0.1db, return loss< 5 dB
Interchangeability dB Additional loss<0.1db, return loss< 5 dB
Connection Times times >1000
Operating Temperature °C -40 C- +75 C
Storage Temperature °C -40 C- +85 C

Features:

1.1 Using high precision ceramic ferrule

1.2 Low insertion loss and high return loss

1.3 Excellent stability and high repetition

1.4 100% Optic test (Insertion Loss & Return Loss)

Application:

2.1 Telecommunication Network

2.2 Fiber Broad Band Network

2.3 CATV system

2.4 LAN and WAN system

2.5 FTTP

Package:

Customizable Length LC UPC To SC UPC Optical Patch Cord SM SX 3M, 5M,10M 0
