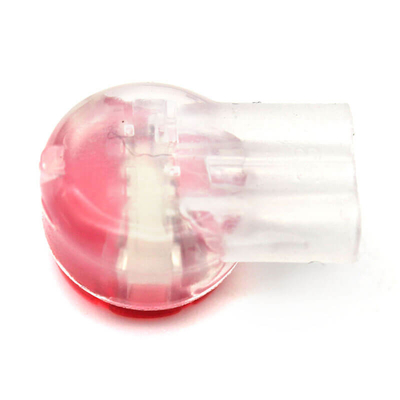

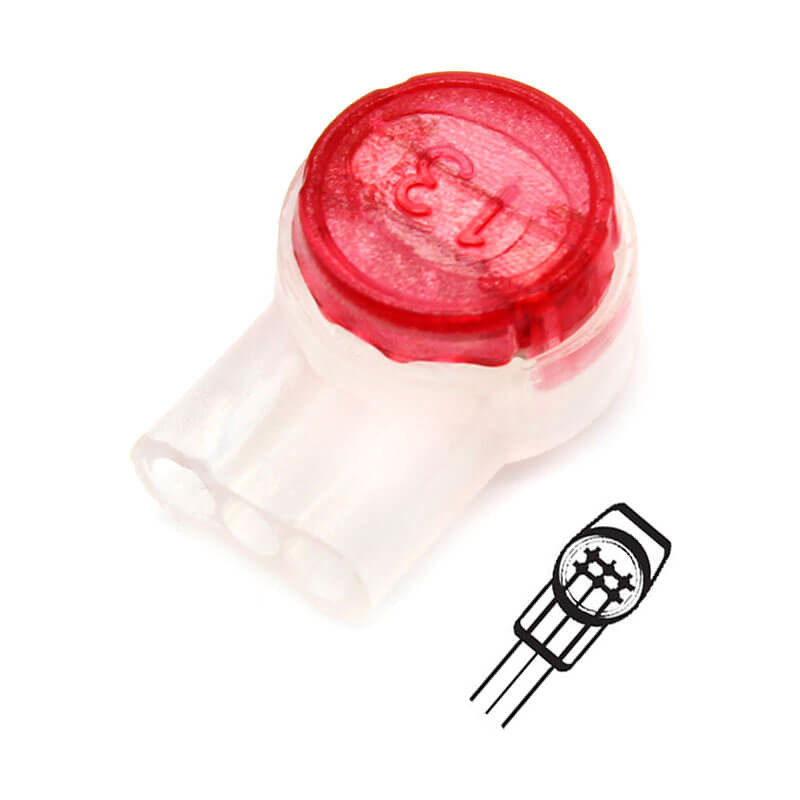

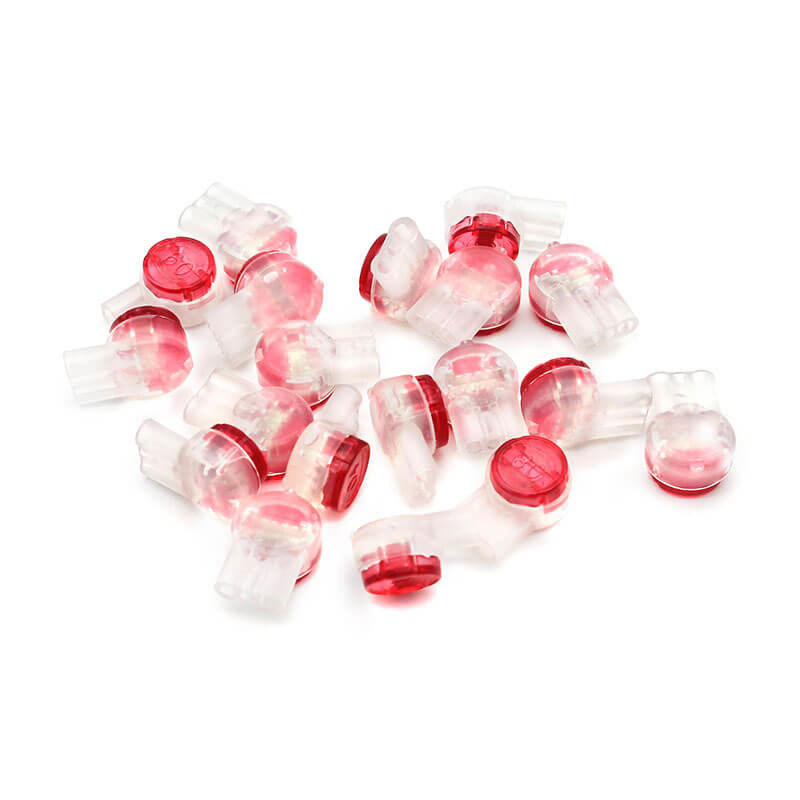

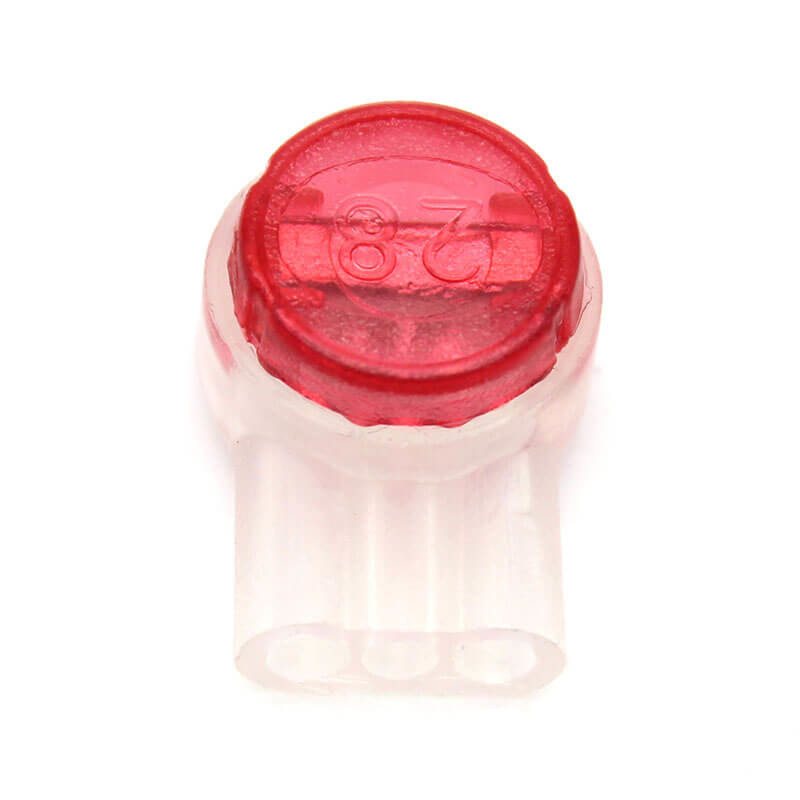

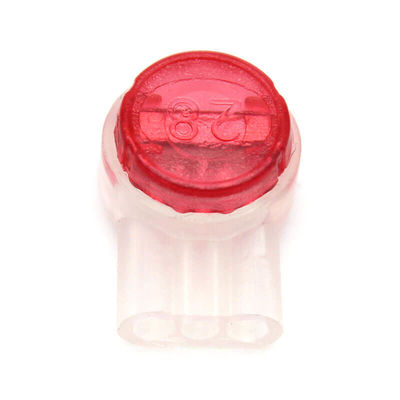

19-26AWG Red UR2 Butt Connector

Large Image : 19-26AWG Red UR2 Butt Connector

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-5023

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100000 PCS Per 7 Days

Contact Now

19-26AWG Red UR2 Butt Connector

Description

Accessory Type:	Butt	Maximum Insulation:	2.08mm (0.082”)
Color Identification:	Amber	AWG (mm²) Wire Range:	0.9-0.4 Mm (19-26AWG) Cable
Carton Size:	45x28.5x22cm	Carton G.W.:	11.6kg(25.6 Lbs.)/cs
Highlight:	26awg wire butt splice , 26awg scotchlok butt connector , red wire butt splice

19-26AWG Red UR2 Butt Connector

UR2 solvent resistant connectors reduce the splicing bundle O.D. to a minimum. Their two ports accept two solid copper conductors that can be of different wire gauges. Factory insertedsealant insulates the connections, protects against corrosion, and seals out moisture. The UR2 Connector is easily installed and crimped by using our DW-8021 Connector Crimping Plier.

Specification:

Accessory Type	Butt	Special Feature	Gel-filled for moisture resistance
Maximum Insulation	2.08mm (0.082”)	AWG (mm²) Wire Range	0.9-0.4 mm (19-26AWG) air core 0.65-0.4mm (22-26AWG) filled cable
Color Identification	Amber

Application:

1. Splicing
2. Voice
3. Data
4. Premise Wiring

Package:

Packing: 100pcs/bag, 1000pcs/box, 10000pcs/cs.

Size: 45*28.5*22cm

G.W.: 11.6kg(25.6 lbs.)/cs.

3M Telecom Connection System:
