SC/FC/ST/LC-APC/UPC OTDR Launch Cable Ring From 500m To 2KM

SC/FC/ST/LC-APC/UPC OTDR Launch Cable Ring From 500m To 2KM
SC/FC/ST/LC-APC/UPC OTDR Launch Cable Ring From 500m To 2KM SC/FC/ST/LC-APC/UPC OTDR Launch Cable Ring From 500m To 2KM SC/FC/ST/LC-APC/UPC OTDR Launch Cable Ring From 500m To 2KM SC/FC/ST/LC-APC/UPC OTDR Launch Cable Ring From 500m To 2KM

Large Image :  SC/FC/ST/LC-APC/UPC OTDR Launch Cable Ring From 500m To 2KM

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-LCR
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 PCS Per 7 Days
Contact Now

SC/FC/ST/LC-APC/UPC OTDR Launch Cable Ring From 500m To 2KM

Description
Connector Type: SC, LC, ST, FC, E2000. MPO Etc Material: SR Polypropylene
Color: Black Type Of Fiber: YOFC G652D SMF-28
Length: From 500m To 2KM Dimension: 13cm* 12.1cm *2.5cm
Highlight:

ftth adsl vdsl tester

,

ftth network cable crimping tools

,

lc adsl vdsl tester

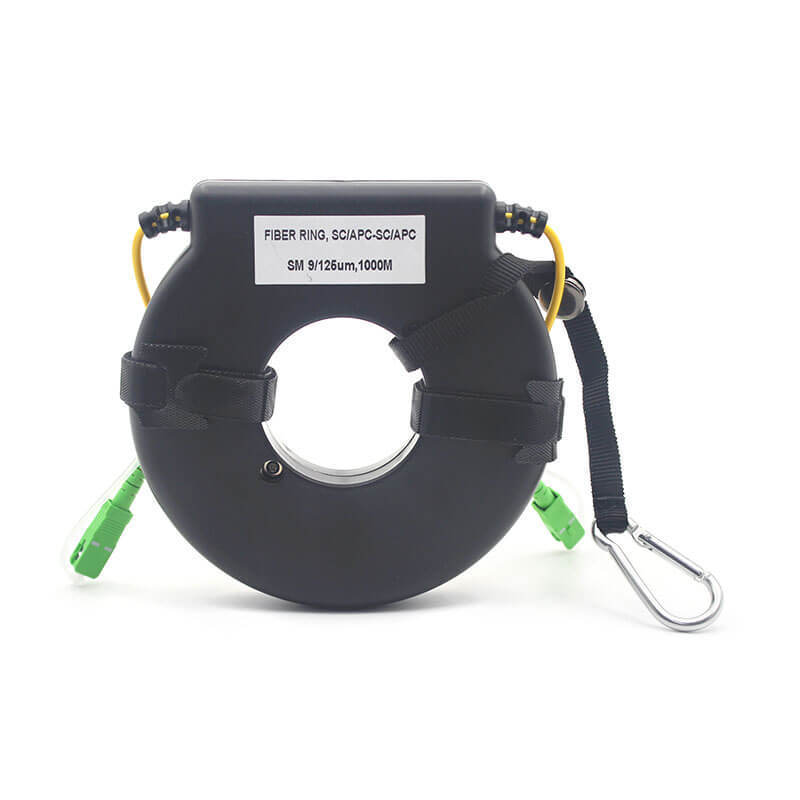

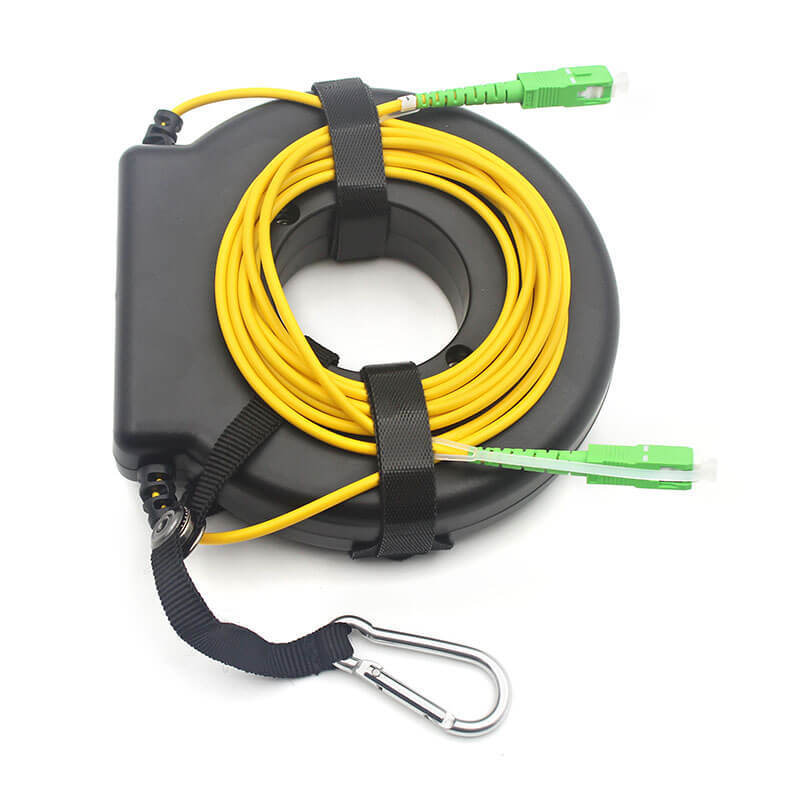

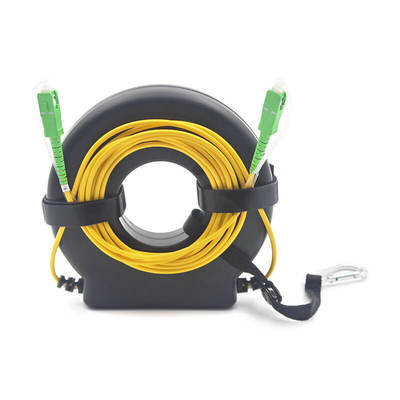

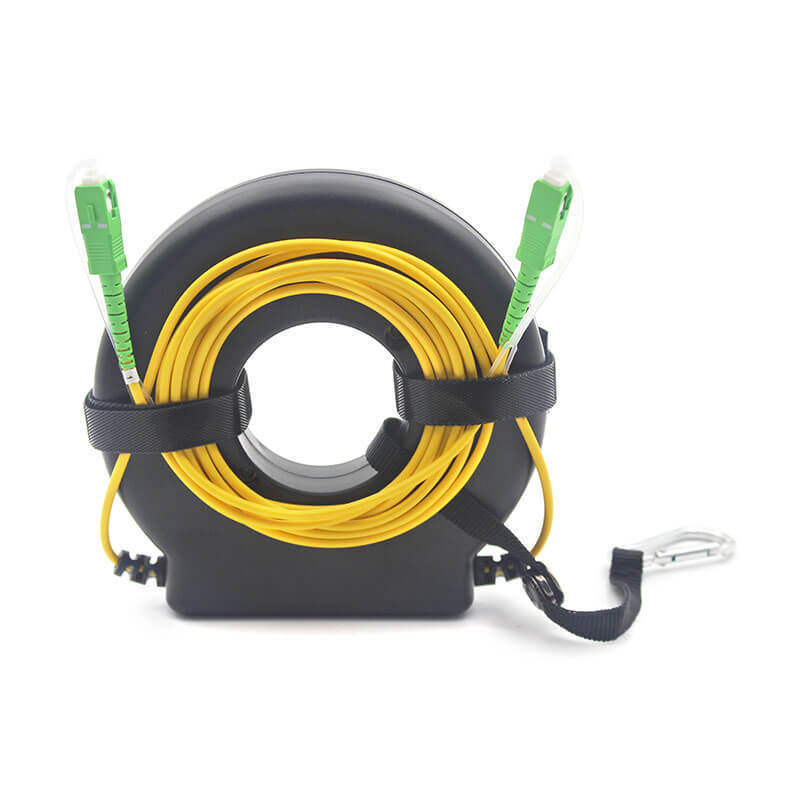

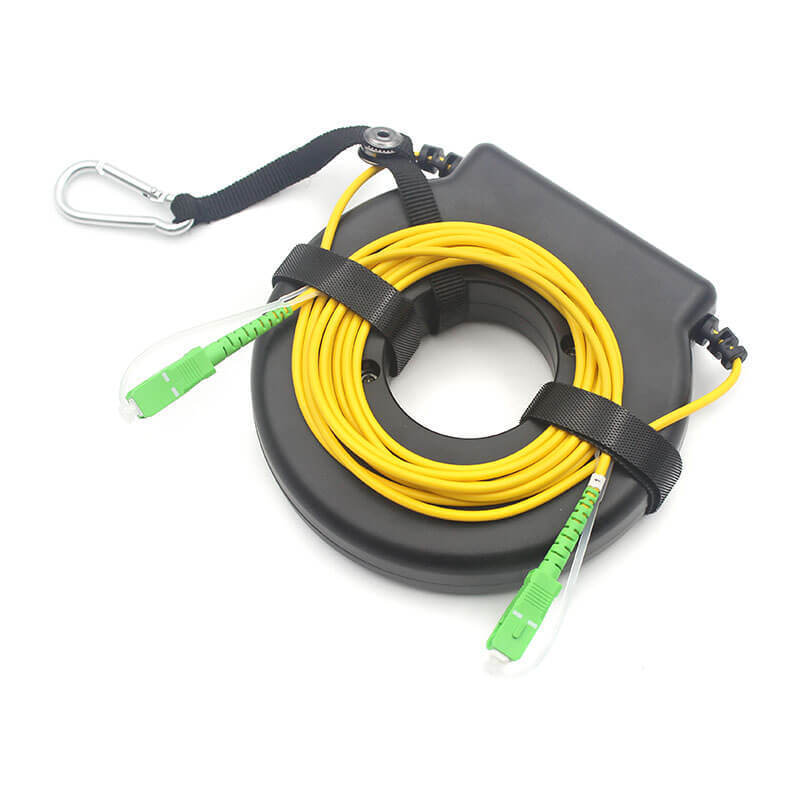

SC/FC/ST/LC-APC/UPC OTDR Launch Cable Ring From 500m To 2KM

The OTDR launch fiber box is used with optical time domain reflectometers to help minimize the effect of the OTDR launch pulse on measurement uncertainty. Units are available in any length up to 2km and housed in a rugged, airtight or watertight carry case.

Specification:

Connector type SC, LC, ST, FC, E2000. MPO etc Length from 500m to 2KM
Dimension 13cm* 12.1cm *2.5cm Material SR Polypropylene
Color Black Type of fiber YOFC G652D SMF­28
Fiber roughness 0 – 25 nm Ferrule roughness 0­-50 nm

Features:

1.1 Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration

1.2 Compound Latch for positive seal and easy opening with locking feature.
1.3 Non­metal construction will not dent, corrode, or conduce electricity
1.4 Water and dust proof allowing the unit to be taken into almost any environment
1.5 Auto Purge Valve for changes in altitude and temperature
How to Use:
2.1 Connect the OTDR to the launch cable inside the box.
2.2 Connect the other end of the launch cable to the fiber under test.
2.3 Perform the OTDR trace—the launch cable ensures accurate near-end measurements.
