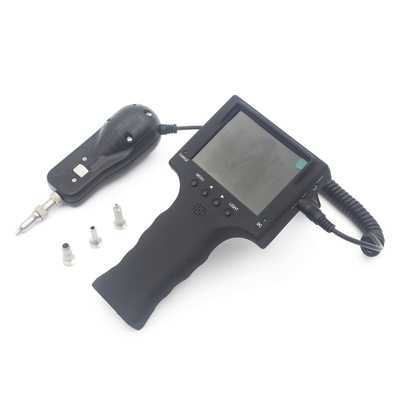

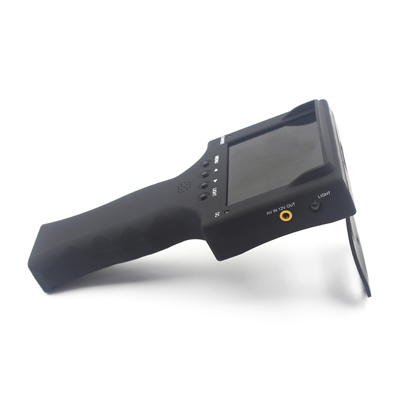

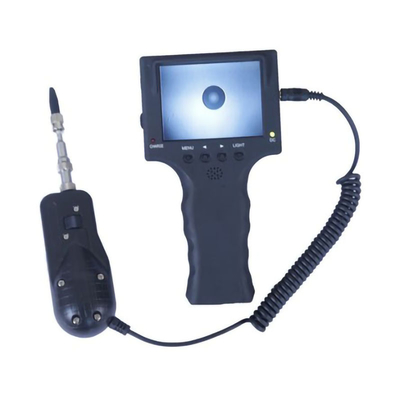

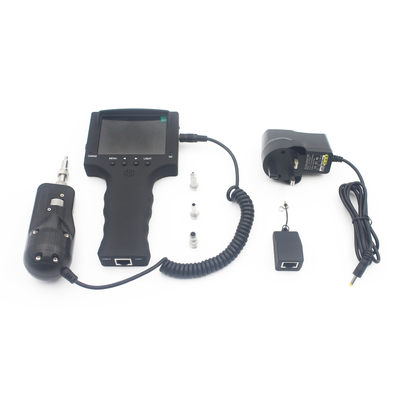

FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size

Product Details

Place of Origin: Zhejiang, China

Brand Name: DOWELL

Model Number: DW-FMS-2

Payment & Shipping Terms

Price: $280.00 - $330.00/pieces

Get Best Price
Highlight:
Type:
Fiber Microscope
Use:
FTTH
Warranty Time:
1 Year
Network:
None
Display:
3.5" TFT-LCD, 320 X 240 Pixels
Battery Life:
> 3 Hours (continuous)
Operation Temp.:
- 20°C To 50°C
Storage Temp.:
- 30°C To 70°C
Size:
180mm X 98mm
Type:
Fiber Microscope
Use:
FTTH
Warranty Time:
1 Year
Network:
None
Display:
3.5" TFT-LCD, 320 X 240 Pixels
Battery Life:
> 3 Hours (continuous)
Operation Temp.:
- 20°C To 50°C
Storage Temp.:
- 30°C To 70°C
Size:
180mm X 98mm
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 0
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 1
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 2
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 3
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 4
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 5
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 6
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 7
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 8
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 9
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 10
● FC/SC/ST/E2000/LC/MU/MPO compatible
● 3.5-inch TFT display
● 4x digital zoom
● Up to 250x overall magnification
Mainframe
Display
3.5" TFT-LCD, 320 x 240 pixels
Power Supply
Replaceable battery or universal input 5V DC adapter
Battery
Rechargeable Li-Ion, 3.7V / 2000mAh
Battery Life
> 3 hours (continuous)
Operation Temp.
- 20°C to 50°C
Storage Temp.
- 30°C to 70°C
Size
180mm x 98mm
Weight
250g (including battery)
Inspection Probe
Magnification
400X (9" monitor); 250X (3.5" monitor)
Detection Limit
0.5μm
Focus Control
Manual, in-probe
Principle
Bright field reflected light microscopy
Size
160mm x 45mm
Weight
120g
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 11
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 12
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 13
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 14
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 15
Focus adjustment Gently rotate the focus adjustment knob to bring the image into focus. Do not overturn the knob or damage to the optical system may occur.
Adaptor bits Always install adaptor bits gently and co-axially to avoid damage to the precision mechanism.
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 16
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 17
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 18
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 19
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 20
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 21
FTTH Portable Fiber Optic Inspection Microscope 3.5" TFT-LCD Video 180mm x 98mm Size 22
1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term ?
A: Payment <=4000USD,100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
