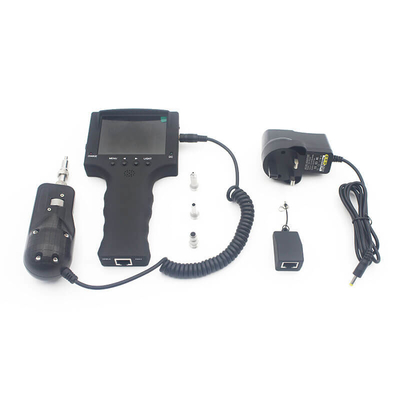

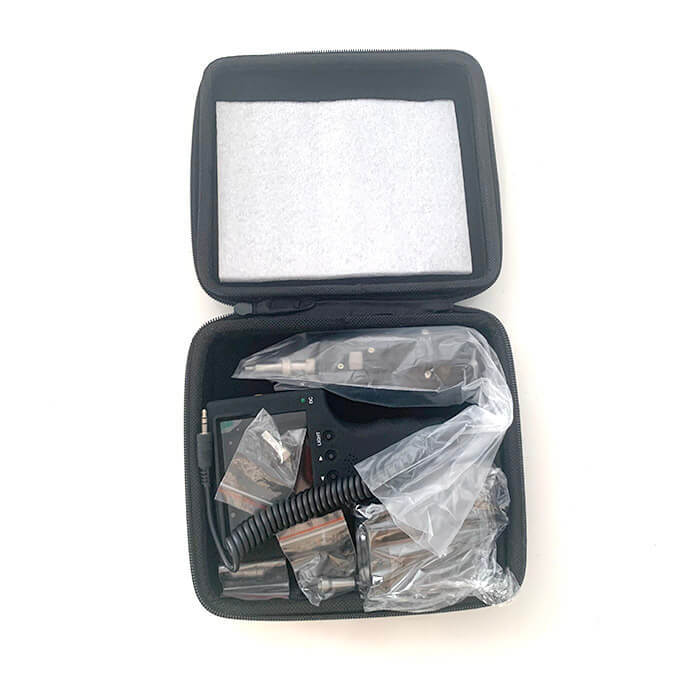

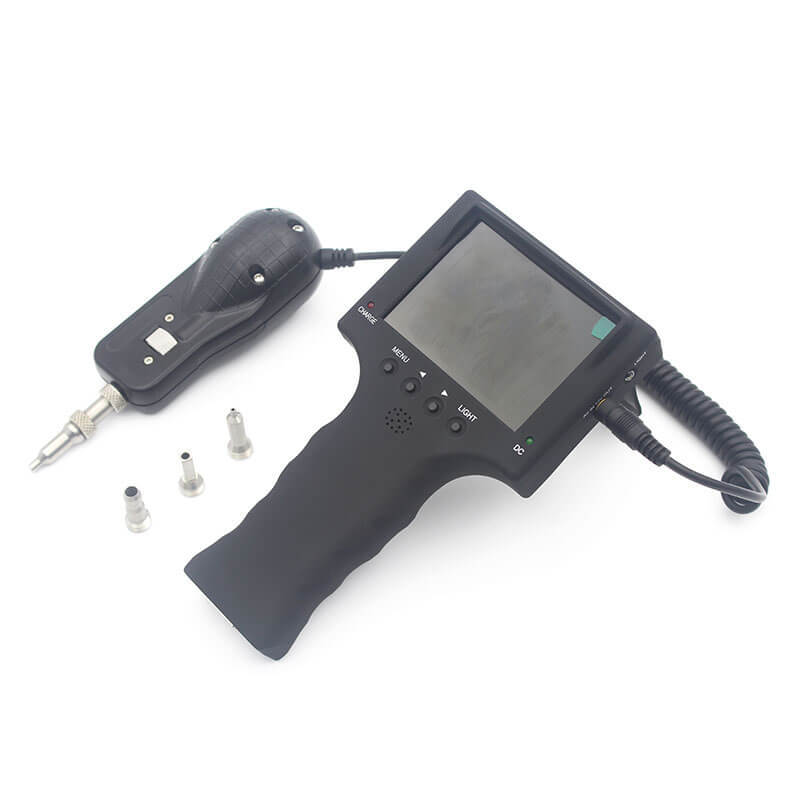

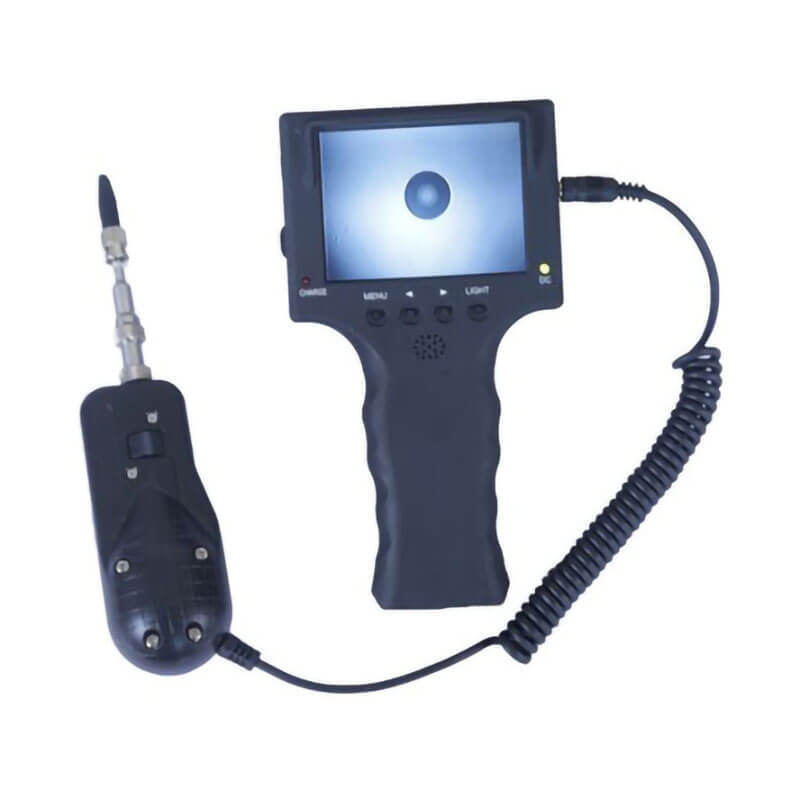

4X Portable Fiber Optical Inspection Microscope For FC/SC/ST/E2000/LC/MU/MPO Connectors

4X Portable Fiber Optical Inspection Microscope For FC/SC/ST/E2000/LC/MU/MPO Connectors
4X Portable Fiber Optical Inspection Microscope For FC/SC/ST/E2000/LC/MU/MPO Connectors 4X Portable Fiber Optical Inspection Microscope For FC/SC/ST/E2000/LC/MU/MPO Connectors 4X Portable Fiber Optical Inspection Microscope For FC/SC/ST/E2000/LC/MU/MPO Connectors 4X Portable Fiber Optical Inspection Microscope For FC/SC/ST/E2000/LC/MU/MPO Connectors

Large Image :  4X Portable Fiber Optical Inspection Microscope For FC/SC/ST/E2000/LC/MU/MPO Connectors

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-FMS-2
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 20 PCS Per 7 Days
Contact Now

4X Portable Fiber Optical Inspection Microscope For FC/SC/ST/E2000/LC/MU/MPO Connectors

Description
Display: 3.5" TFT-LCD, 320 X 240 Pixels Battery Life: > 3 Hours (continuous)
Operation Temp.: - 20°C To 50°C Storage Temp.: - 30°C To 70°C
Size: 180mm X 98mm Weight: 370g
Highlight:

ftth adsl vdsl tester

,

ftth network cable crimping tools

4X Portable Fiber Optical Inspection Microscope For FC/SC/ST/E2000/LC/MU/MPO Connectors

This product is a portable video microscope used to inspect all kinds of fiber optic terminations, especially for the female ones. It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.

Specification:

Mainframe
Display 3.5" TFT-LCD, 320 x 240 pixels Power Supply Replaceable battery or universal input 5 V DC adapter
Battery Rechargeable Li-Ion, 3.7 V / 2000mAh Battery Life > 3 hours (continuous)
Operation Temp. - 20°C to 50°C Storage Temp. - 30°C to 70°C
Size 180mm x 98mm Weight 250g (including battery)

Inspection Probe
Magnification 400X (9" monitor); 250X (3.5" monitor) Detection Limit 0.5pm
Focus Control Manual, in-probe Principle Bright field reflected light microscopy
Size 160mm x 45mm Weight 120g

Features:

1.1 FC/SC/ST/E2000/LC/MU/MPO compatible

1.2 4x digital zoom

1.3 3.5-inch TFT display

1.4 Up to 250x overall magnification

Noted:

Gently rotate the focus adjustment knob to bring the image into focus. Do not overturn the knob or damage to the optical system may occur.

Tag:

lc duplex connector,

multimode fiber connector ,

fiber optic cable connectors
