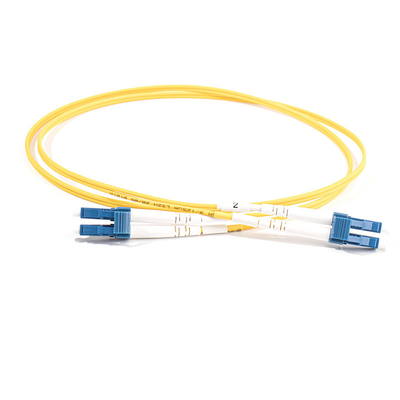

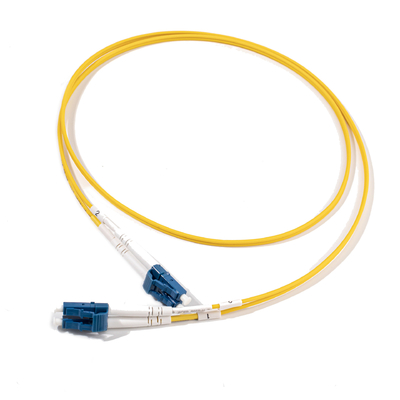

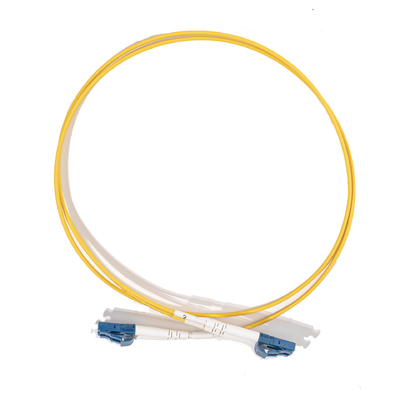

Simplex Dx LC UPC To LC UPC Fiber Optic Cable Patch Cord LSZH 3.0MM, 5meter

Simplex Dx LC UPC To LC UPC Fiber Optic Cable Patch Cord LSZH 3.0MM, 5meter
Simplex Dx LC UPC To LC UPC Fiber Optic Cable Patch Cord LSZH 3.0MM, 5meter Simplex Dx LC UPC To LC UPC Fiber Optic Cable Patch Cord LSZH 3.0MM, 5meter Simplex Dx LC UPC To LC UPC Fiber Optic Cable Patch Cord LSZH 3.0MM, 5meter

Large Image :  Simplex Dx LC UPC To LC UPC Fiber Optic Cable Patch Cord LSZH 3.0MM, 5meter

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS Per 7 Days
Contact Now

Simplex Dx LC UPC To LC UPC Fiber Optic Cable Patch Cord LSZH 3.0MM, 5meter

Description
Insertion Loss: <0.3dB Return Loss: ≥ 55 DB (UPC), ≥ 65 DB (APC)
Repeat Ability: 0.2 DB (500 Cycle Passed) Humidity: 95% RH (Non Packaging)
Operating Temp: - 40°C To +75°C Storage Temp: - 40°C To +85°C
Highlight:

lc fiber optic adapter

,

lc fiber optic cable connectors

,

upc fiber optic adapter

Simplex Dx LC UPC To LC UPC Fiber Optic Cable Patch Cord LSZH 3.0MM, 5meter

Fiber optic patchcords and pigtails are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC E2000n MTRJn MPO etc with single mode(9/125um) and multimode(50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

Specification:

Parameter Unit Mode PC UPC APC
Type
Insertion Loss dB SM <0.3 <0.3 <0.3
    MM <0.3 <0.3
Return Loss dB SM >50 >50 >60
    MM >35 >35
Repeatability dB Additional loss<0.1db,return loss< 5 dB
Interchangeability dB Additional loss<0.1db,return loss< 5 dB
Connection times times >1000
Operating Temperature °C -40 C- +75 C
Storage Temperature °C -40 C- +85 C

Features:

1.1 Using high precision ceramic ferrule

1.2 Low insertion loss and high return loss

1.3 Excellent stability and high repetition

1.4 100% Optic test (Insertion Loss & Return Loss)

Application:

2.1 Telecommunication Network Fiber Broad Band Network CATV system LAN and WAN system FTTP.

Simplex Dx LC UPC To LC UPC Fiber Optic Cable Patch Cord LSZH 3.0MM, 5meter 0

Package:

Simplex Dx LC UPC To LC UPC Fiber Optic Cable Patch Cord LSZH 3.0MM, 5meter 1

Tag:

fibre patch leads,

fiber jumper cables,

multimode patch cable
