25-pair Gel Filled Super-Mini Straight Connector Splicing Module for Cable 0.65-0.32mm 22-28AWG

Name: 25-pair Gel Filled Super-Mini Straight Connector Splicing Module for Cable 0.65-0.32mm 22-28AWG
Brand: DOWELL
SKU: DW-4000G
Price: 1.50 USD
Availability: InStock
Rating: 4.7 (180 reviews)

All Products

Fiber Optic Cable
(43)

Fiber Optic Splice Closure
(29)

FTTH Accessories
(147)

Fiber Optic Connectivity
(131)

Fiber Optic Boxes
(52)

Lsa Module Series
(22)

Telecom Connector
(41)

Networking Cabling Tools
(157)

ONU
(7)

Certification

I'm Online Chat Now

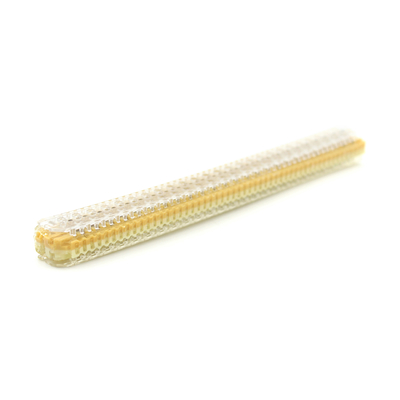

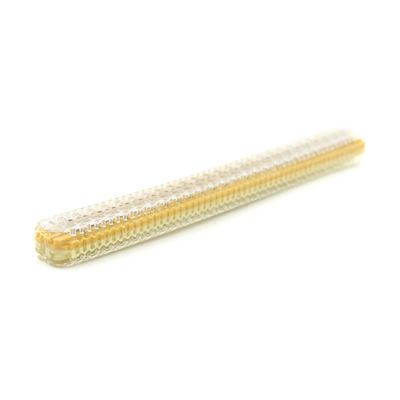

25-pair Gel Filled Super-Mini Straight Connector Splicing Module for Cable 0.65-0.32mm 22-28AWG

Large Image : 25-pair Gel Filled Super-Mini Straight Connector Splicing Module for Cable 0.65-0.32mm 22-28AWG

Product Details:

Place of Origin:	China,zhejiang
Brand Name:	DOWELL
Model Number:	DW-4000G

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$1.50/pieces 1000-9999 pieces

Contact Now

25-pair Gel Filled Super-Mini Straight Connector Splicing Module for Cable 0.65-0.32mm 22-28AWG

Description

Type:	Mini Splicing Module	Max Insulation Diameter (mm):	1.65
Cable Style And Wire Diameter:	0.65-0.32mm(22-28AWG)	Operating Temperature:	-30℃~+80℃

Specifications
Max insulation diameter (mm)	1.65
Cable style and wire diameter	0.65-0.32mm(22-28AWG)
Environment characteristic
Environment chaStorage Temperature Range	-40℃~+120℃
Operating Temperature Range	-30℃~+80℃
Relative Humidity	<90%(at20℃)
Atemospheric Pressure	70KPa~106KPa
Mechanical Performance
Plastic Housing	PC (UL 94v-0)
Contacts	Tinned Phosphor Bronze
Cutting blades leftover cable	Stainless steel
Wire Insertion Force	45N Typical
Wire Pull out Force	40N Typical
Breaking strength or slip conductor	> 75% Wire breaking strength
Use Times	>100
Electrical Performance
Insulation Resistance	R≥10000M Ohm
Contact Resistance	The vary of the contact resistance ≤1m Ohm
Dielectric Strength	2000V DC 60s can't spark over and haven't fly arc
Constant Current	5KA 8/20u Sec
Surge Current	10KA 8/20u Sec
