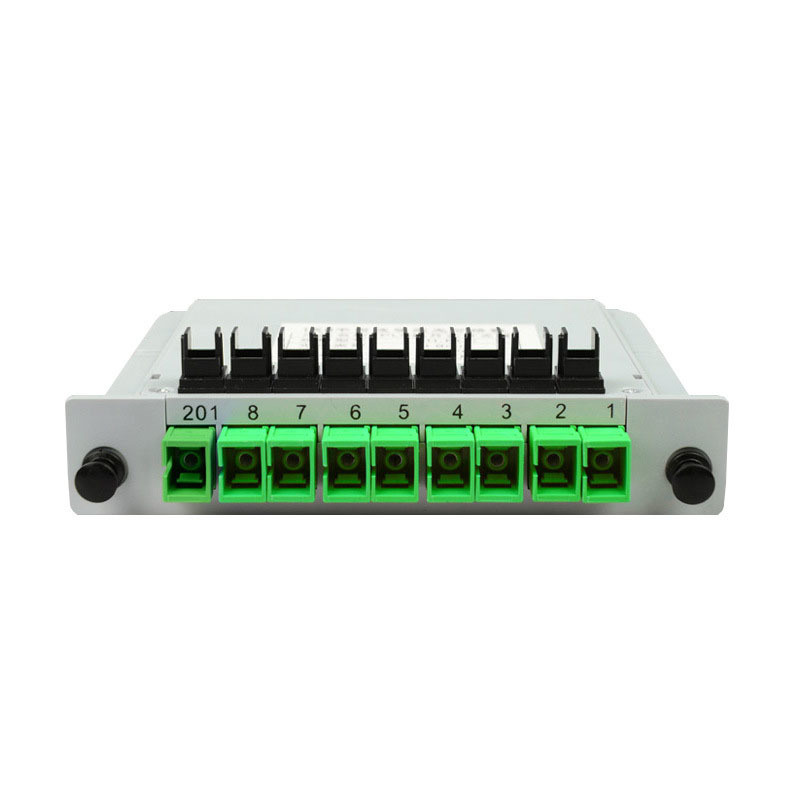

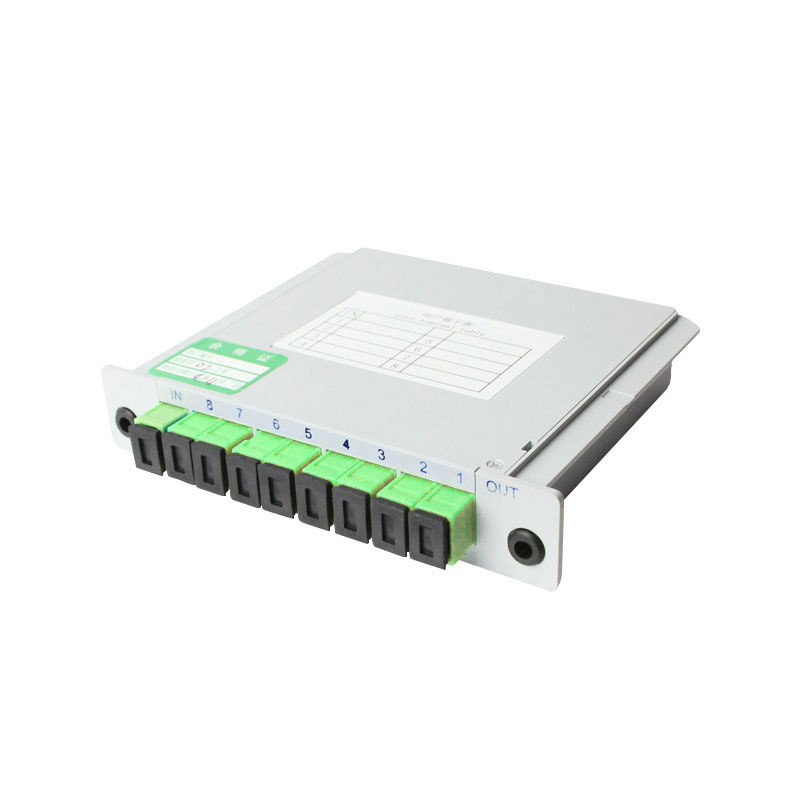

1*8 1*16 1*32 1*64 G657A Cassette Box PLC Fiber Optical Splitters SC APC/UPC

1*8 1*16 1*32 1*64 G657A Cassette Box PLC Fiber Optical Splitters SC APC/UPC
1*8 1*16 1*32 1*64 G657A Cassette Box PLC Fiber Optical Splitters SC APC/UPC 1*8 1*16 1*32 1*64 G657A Cassette Box PLC Fiber Optical Splitters SC APC/UPC

Large Image :  1*8 1*16 1*32 1*64 G657A Cassette Box PLC Fiber Optical Splitters SC APC/UPC

Product Details:
Place of Origin: China,Zhejiang
Brand Name: DOWELL
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 PCS Per 7 Days
Contact Now

1*8 1*16 1*32 1*64 G657A Cassette Box PLC Fiber Optical Splitters SC APC/UPC

Description
Type: 1×2, 1x4, 1x8, 1x16, 1x32, 1x64 Working Bandwidth: 1260-1650nm
Optical Fiber: G657A1, G657A2 Or Customized Cable Color: White Or Customized
Cable Diameter: 250um Or 900um Connector: SC APC, SC UPC Or Without Connector
Highlight:

ftth adsl vdsl tester

,

ftth network cable crimping tools

1*8 1*16 1*32 1*64 G657A Cassette Box PLC Fiber Optical Splitters SC APC/UPC
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Specification:
Type 1x2 1x4 1x8 1x16 1x32 1x64
Working Bandwidth (nm) 1260-1650
Insertion Loss (dB) Max w/o connectors 3.8 7.1 10.2 13.5 16.8 20.2
Insertion Loss (dB) Max with connectors 4.1 7.4 10.5 13.8 17.1 20.5
Wavelength Dependent 0.2 0.3 0.4 0.6 0.8 1
Loss (dB) Max.
Return Loss (dB) Min.(APC) 55
Temperature Dependent 0.5
Loss(dB) Max
Stability in Hot 1
Environment (dB/C) Max
Uniformity (dB) Max 0.6 0.6 0.8 1.1 1.5 2
Polarization Dependent 0.2 0.2 0.2 0.3 0.3 0.3
Loss (dB) Max
Orientation (dB) Min 50
Power (mW) Max 300
SteelTube Size(mm) 60*7*4 60*7*4 60*7*4 60*12*4 80*20*6 100*40*6
Optical Fiber G657A1, G657A2 or customized
Input / Output length 1meter standard or customized length
Cable Color White or customized
Cable Diameter 250um or 900um
Connector SC APC, SC UPC or without connector

Features:

1.1 Low Insertion loss and Low PDL
1.2 Good channel-to-channel uniformity
1.3 Wide Operating Wavelength: From 1260nm to 1650nm
1.4 Wide Operating Temperature: From -40℃ to 85℃

Application:

2.1 Fiber to the point (FTTX)
2.2 Fiber to the home (FTTH)
2.3 Passive optical networks(PON)
2.4 Local area networks (LAN)
2.5 Cable television (CATV)
2.6 Test equipment

Tag:

1x8 plc splitter,

sc apc splitter,

plc splitter module
