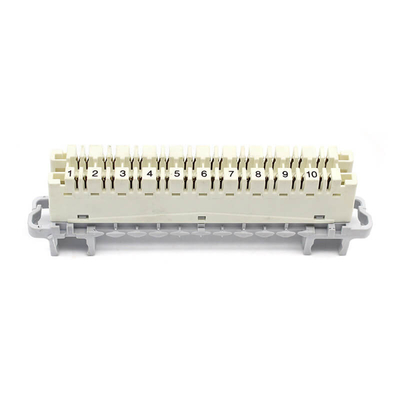

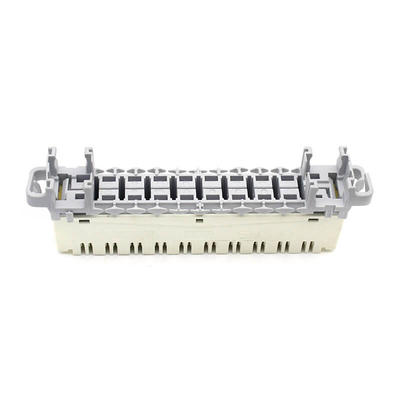

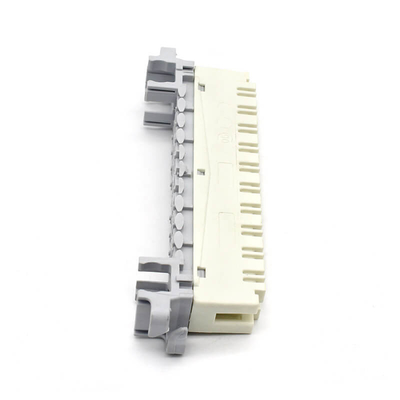

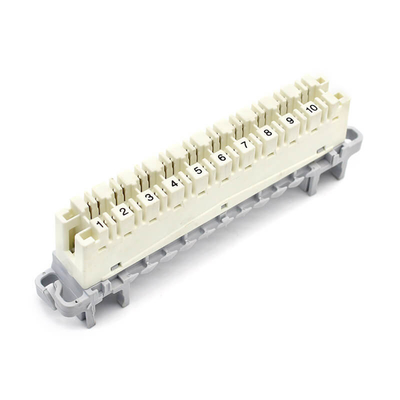

10 Pair Terminal Block Module Krone Connection Module Reliable

10 Pair Terminal Block Module Krone Connection Module Reliable
10 Pair Terminal Block Module Krone Connection Module Reliable
10 Pair Terminal Block Module Krone Connection Module Reliable 10 Pair Terminal Block Module Krone Connection Module Reliable 10 Pair Terminal Block Module Krone Connection Module Reliable 10 Pair Terminal Block Module Krone Connection Module Reliable 10 Pair Terminal Block Module Krone Connection Module Reliable

Large Image :  10 Pair Terminal Block Module Krone Connection Module Reliable

Product Details:
Place of Origin: China,Zhejiang
Brand Name: DOWELL
Model Number: DW-6468 2 061-00
Payment & Shipping Terms:
Minimum Order Quantity: 2000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 2000 PCS Per 7 Days
Contact Now

10 Pair Terminal Block Module Krone Connection Module Reliable

Description
Diameter Range (PE, PVC): 0.70 - 1.40 Mm Copper Conductors: 0.40 - 0.65 Mm* (26-22 AWG)
Voltage Rating: 150 VAC Environment For Use: Indoors Or In Dry Enclosure Rated IP54 Or Greater
Highlight:

10 Pair Terminal Block Module

,

Reliable Terminal Block Module

,

Reliable Krone Connection Module

10 Pair Krone Highband Disconnection Profile Modules

HIGHBAND utilises the silver plated LSA Plus contact principle. This is proven technology which has become the ‘industry standard’ in over 60 countries. The gas tight contacts ensure a reliable and long lasting connection. These modules can be either patched, jumpered and used in a patch by exception configuration.

Specification:
Environment for use Indoors or in dry enclosure rated IP54 or greater
Maximum relative humidity 93% non-condensing
copper conductors 0.40 - 0.65 mm* (26-22 AWG)
diameter range (PE, PVC) 0.70 - 1.40 mm
Voltage rating 150 VAC

Dimension:

10 Pair Terminal Block Module Krone Connection Module Reliable 0

Application:

1. Superior high speed data and voice cross connect modules.  Available in 8 and 10 pair disconnect versions. These modules enable high speed LAN and WAN systems maximum headroom in transmission performance.

10 Pair Terminal Block Module Krone Connection Module Reliable 1

Tag:

krone connection module,

10 pair disconnection module,

terminal block module
