Indoor KRONE LSA Module Idc With Screw Terminal Flexible Green

Large Image : Indoor KRONE LSA Module Idc With Screw Terminal Flexible Green

Product Details:

Place of Origin:	China,Zhejiang
Brand Name:	DOWELL
Model Number:	DW-7004 2 001-01

Payment & Shipping Terms:

Minimum Order Quantity:	2000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days

Contact Now

Indoor KRONE LSA Module Idc With Screw Terminal Flexible Green

Description

Compatible With:

10 Double Loaders

Type:

Screw-in Disconnect Pin

Content:

1 Pc

Cross Section:

Max. 2.5 Mm²

Highlight:

Indoor KRONE LSA Module

Idc 10 pair krone module

Idc KRONE LSA Module

KRONE LSA Disconnection Module with Screw Terminal

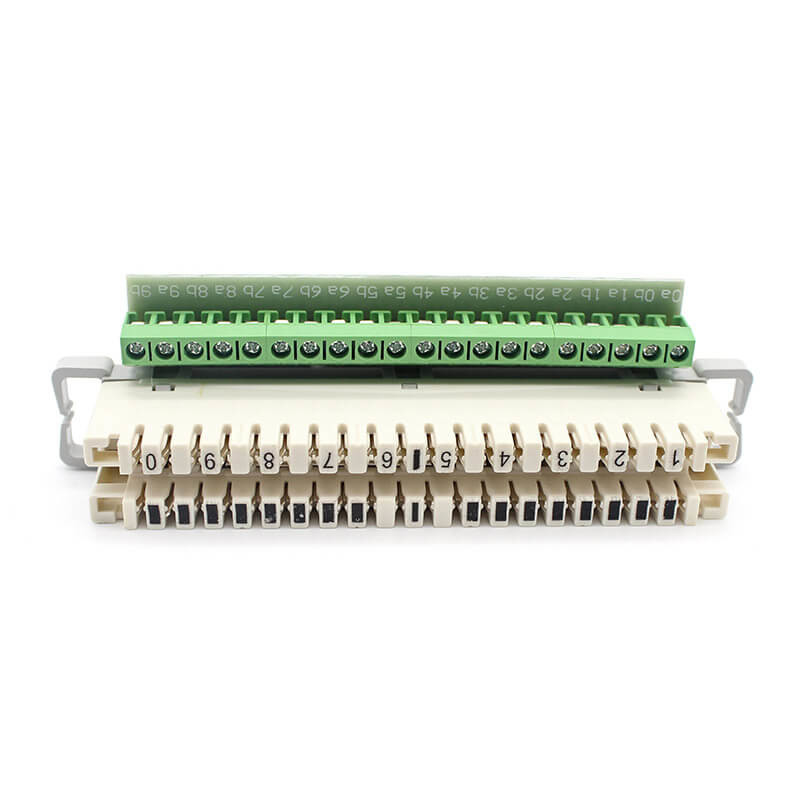

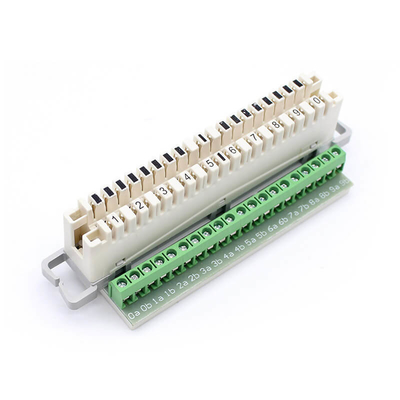

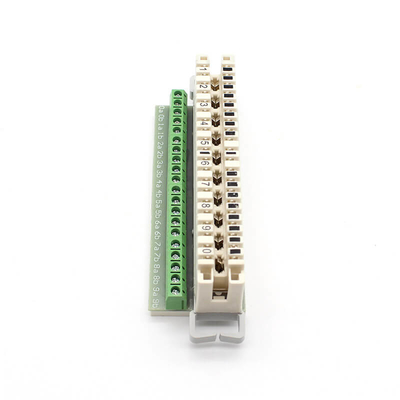

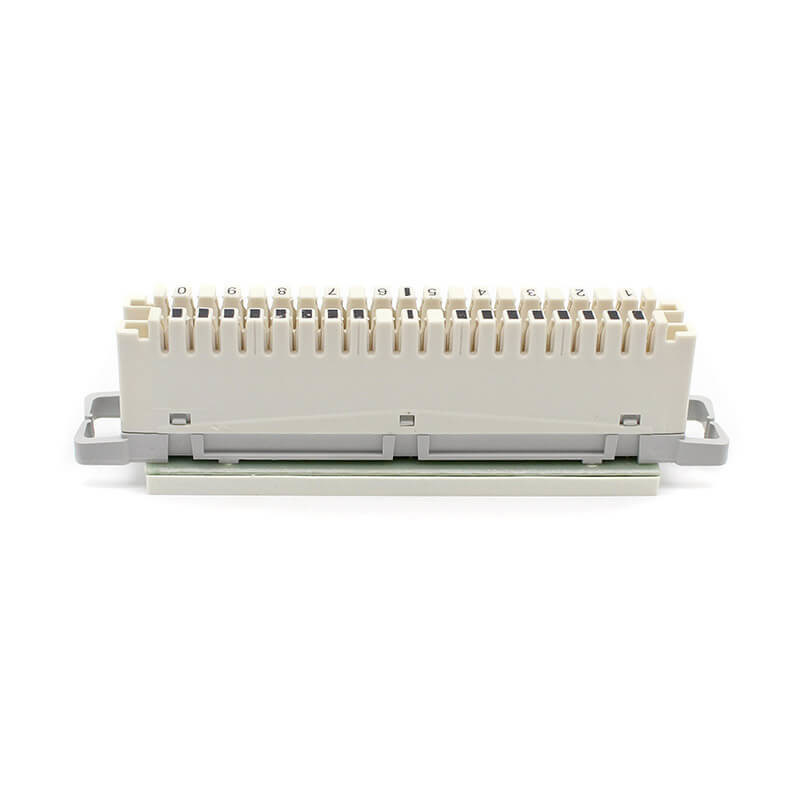

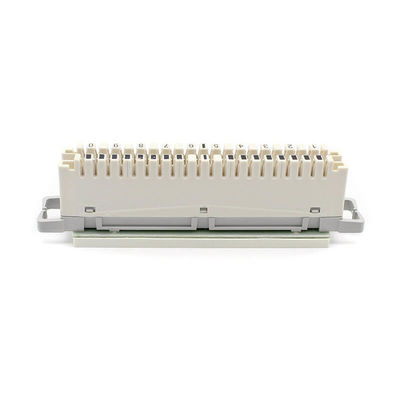

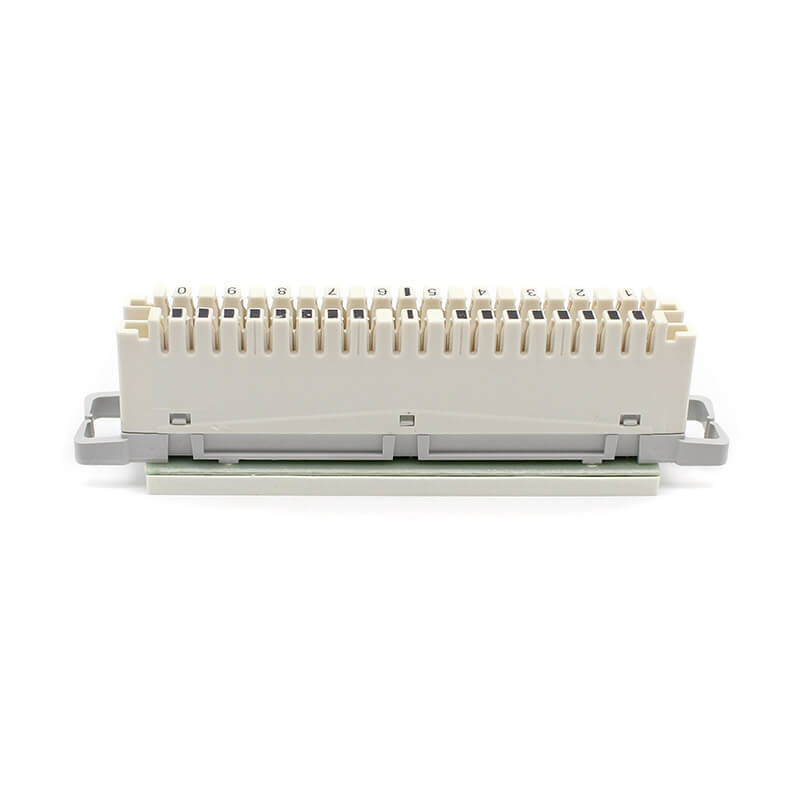

This kind of Disconnection Module 2/10 to Screw terminal has 20 position screw terminals soldered to a PCB. Each IDC contact of the module is connected to the relevant contact of 20 position screw terminal through PCB, thus permitting wires upto 2.5 Sq. mm to be connected to the module.

Specification:

Type	Screw-in disconnect pin	Compatible With	10 double loaders
Content	1 pc	Cross Section	Max. 2.5 mm²
Number of Pins	20	Color	Cream-white and green

Application:

1. Can be used as drop wire module in military field installations/rural telecom network

2. Occupies 2 or 3 ways of BMF

3. Supports all LSA-PLUS® S2 accessories

4. Flexible indoor and outdoor use

5. Robust long term environmental stability

6. Overvoltage/Overcurrent protection

Indoor KRONE LSA Module Idc With Screw Terminal Flexible Green 0
