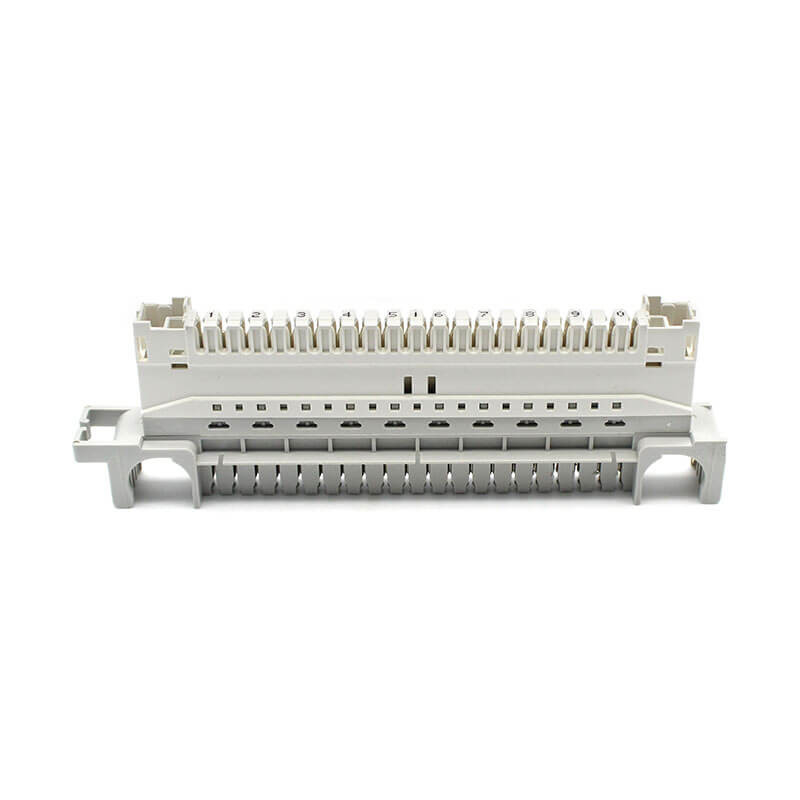

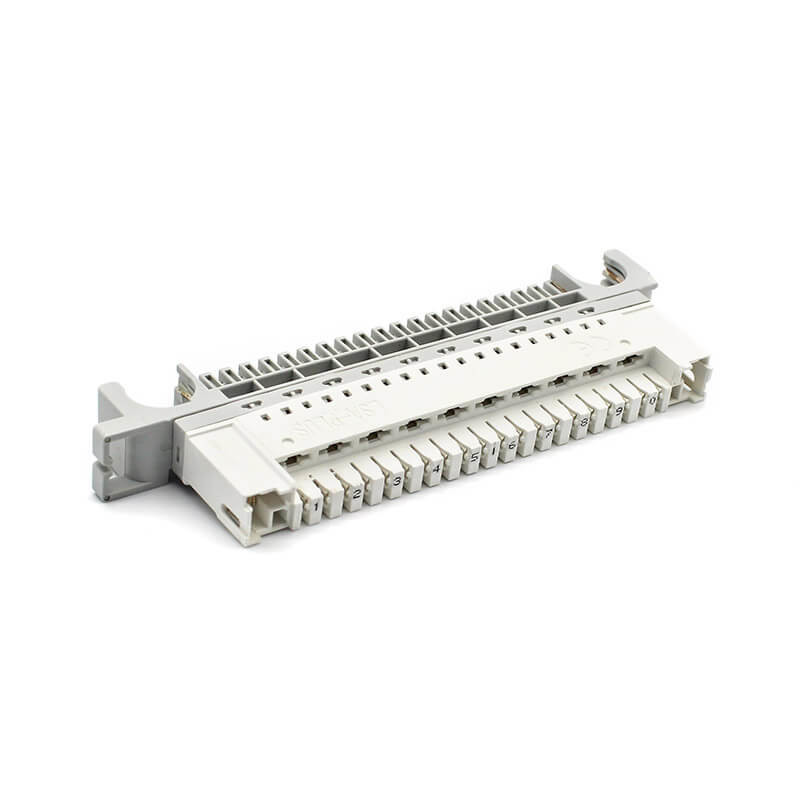

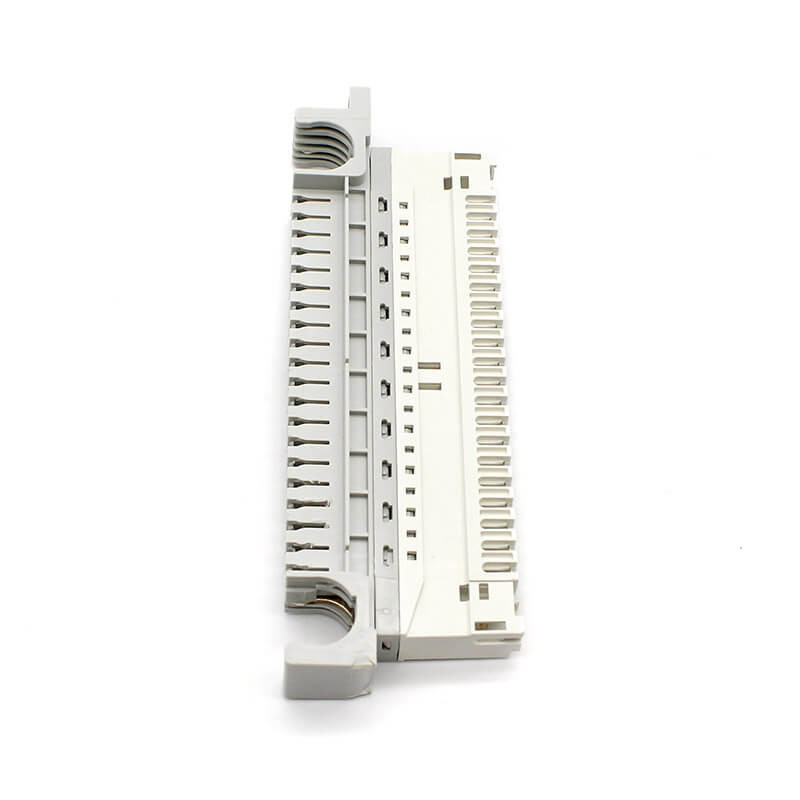

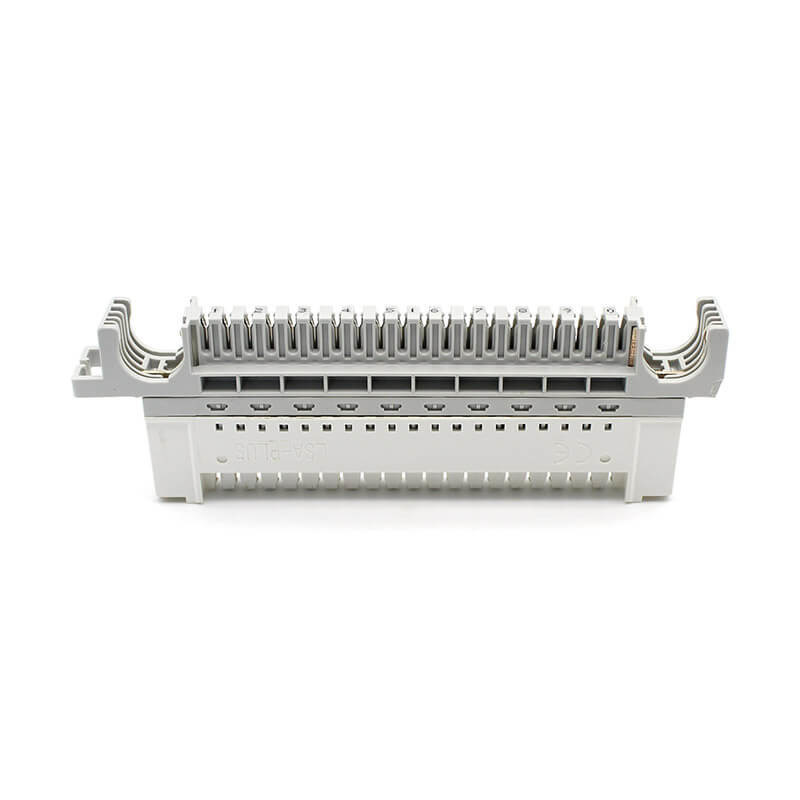

HD180 KRONE LSA Module Contact Resistant For All Communication Networks

HD180 KRONE LSA Module Contact Resistant For All Communication Networks
HD180 KRONE LSA Module Contact Resistant For All Communication Networks
HD180 KRONE LSA Module Contact Resistant For All Communication Networks HD180 KRONE LSA Module Contact Resistant For All Communication Networks HD180 KRONE LSA Module Contact Resistant For All Communication Networks HD180 KRONE LSA Module Contact Resistant For All Communication Networks HD180 KRONE LSA Module Contact Resistant For All Communication Networks

Large Image :  HD180 KRONE LSA Module Contact Resistant For All Communication Networks

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-7014 2 250-00
Payment & Shipping Terms:
Minimum Order Quantity: 2000 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 2000 PCS Per 7 Days
Contact Now

HD180 KRONE LSA Module Contact Resistant For All Communication Networks

Description
Highlight:

HD180 KRONE LSA Module

,

Contact Resistant KRONE LSA Module

,

Contact Resistant lsa disconnection module

LSA-PLUS Krone HD180 Disconnection Module

The LSA-PLUS HD180 connection and disconnection  PROFIL module meet the demand for high-density while delivering high-quality connectivity through LSA-PLUS connection technology. The available space is increased by up to 100% over conventional connection systems when using LSA-PLUS HD180 connection and disconnection modules.

Specification:

Insulation resistance ≥ 5 x 104 MΩ at 500 V
Alternating voltage strength 2 kV rms
Impulse resistance voltage (1.2/50µs) 3.6 kV
Contact resistance Insulation displacement contact: <2.5 mΩ
Conductor diameter, equipment wire 0. 35 mm to 0.8 mm
Surge voltage protection Can be inserted from the front
Flammability (module) acc. to UL94 V0

Application:

1. Suitable for use in all communication networks (POTS, DSL and IP networks)

2. VDSL2-capable
3. Used in outdoor enclosures with restricted space for cable termination
HD180 KRONE LSA Module Contact Resistant For All Communication Networks 0

Tag:

krone connection module,

10 pair disconnection module,

terminal block module
