10-Pair Super-Mini Splicing Dry Module Without Gel

Basic Information

Place of Origin:	China,Zhejiang
Brand Name:	DOWELL
Model Number:	DW-4005D

Minimum Order Quantity:	2000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 PCS Per 7 Days

Get Best Price Contact Now

Detail Information

Contacts Material:	Tinned Phosphor Bronze	Housing Material:	PC (UL 94v-0) Without Gel
Wire Insertion Force:	45N Typical	Wire Pull-Out Force:	40N Typical

Product Description

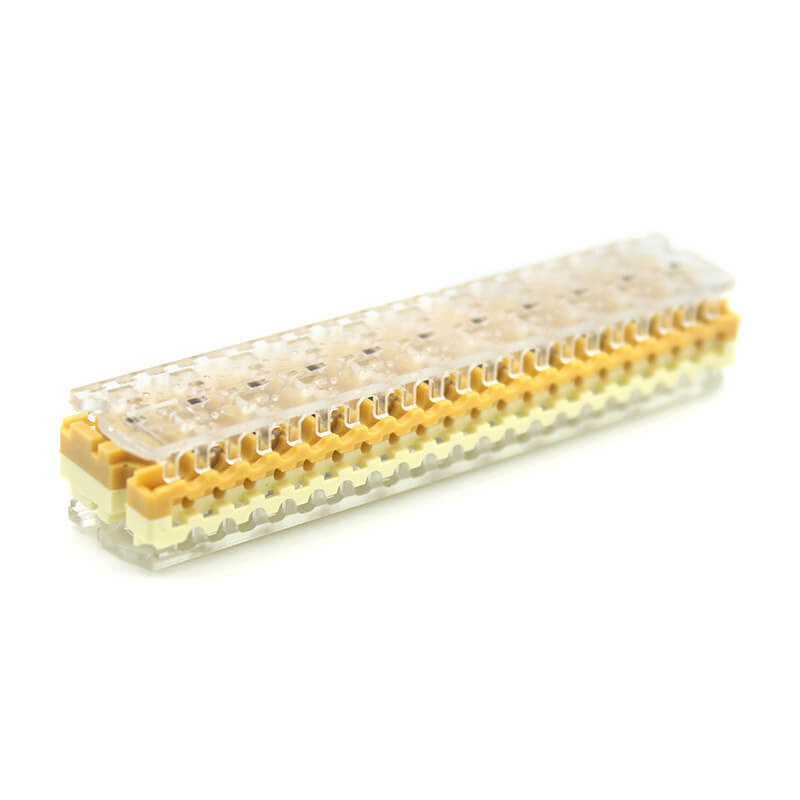

10-Pair Super-Mini Splicing Dry Module Without Gel

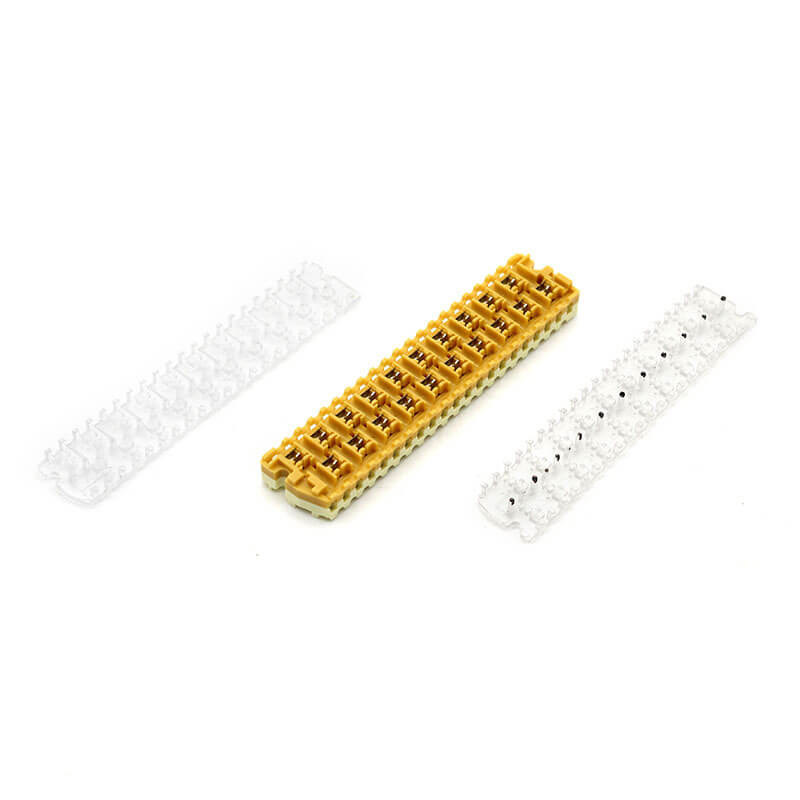

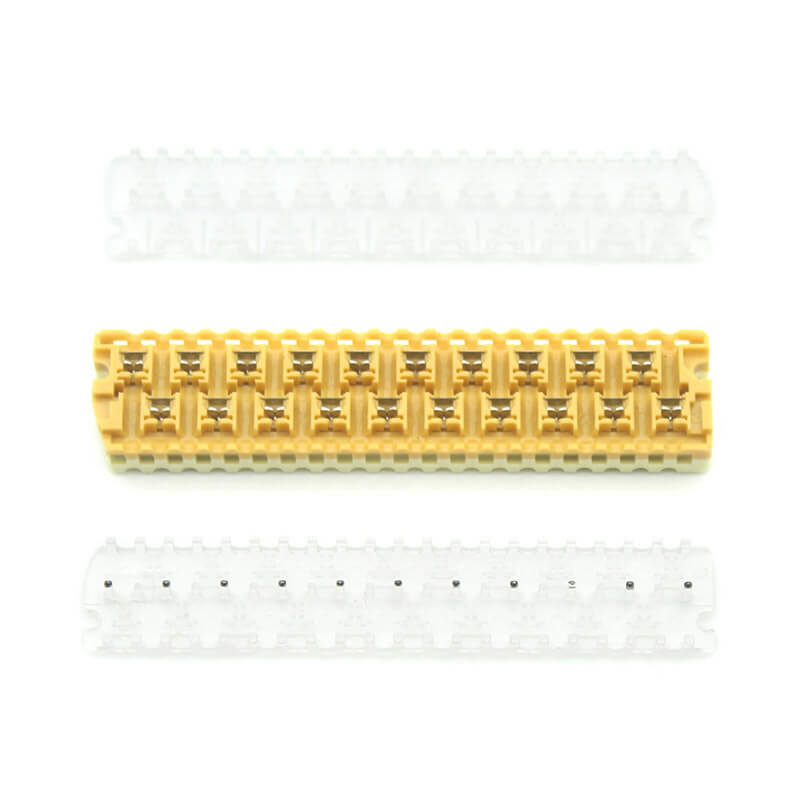

10-Pair Splicing Module without Gel is used to connect all plastic communication cables (diameter 0.32 - 0.65mm) through direct connection, bridge connection and multiple connection. It is widely used in communication circuit. The contact is designed into tuning fork type and sheet joint so that connection will not be hampered. With clear cover module, for easy pairs identification and troubleshooting.

Specification:

Housing Material	PC (UL 94v-0) without gel	Contacts Material	Tinned Phosphor Bronze
Wire Insertion Force	45N Typical	Wire Pull-Out Force	40N Typical
Max Insulation Diameter	1.65 mm	Cable Style and Wire Diameter	0.32-0.65 mm(28-22 AWG)

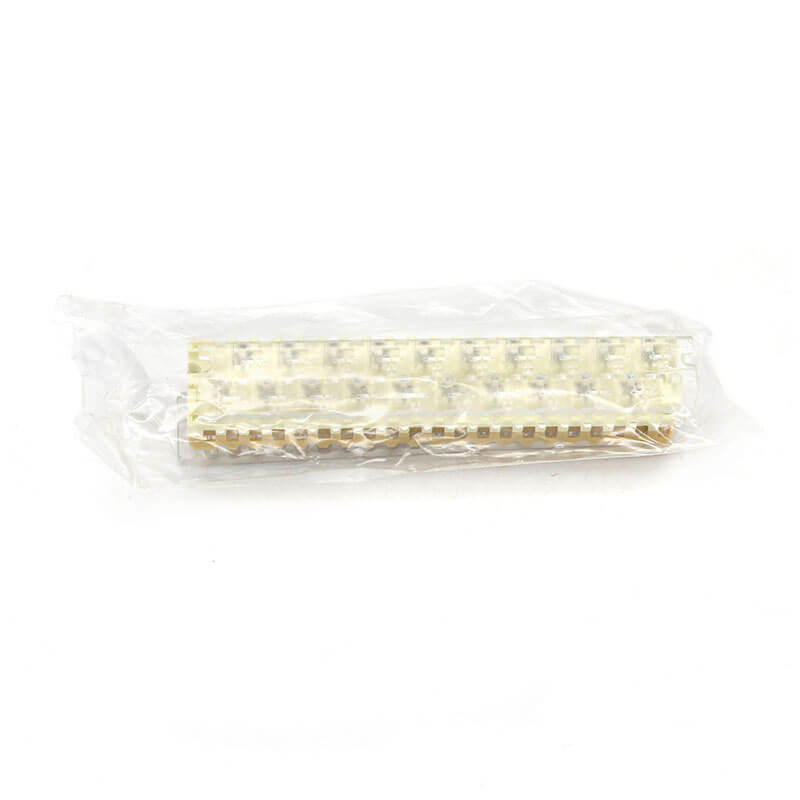

Package:

Packing: 1pcs/bag, 50pcs/box, 500pcs/cs.

Size: 41*28.5*22cm

G.W.: 5.8kg(12.8 lbs.)/cs.
