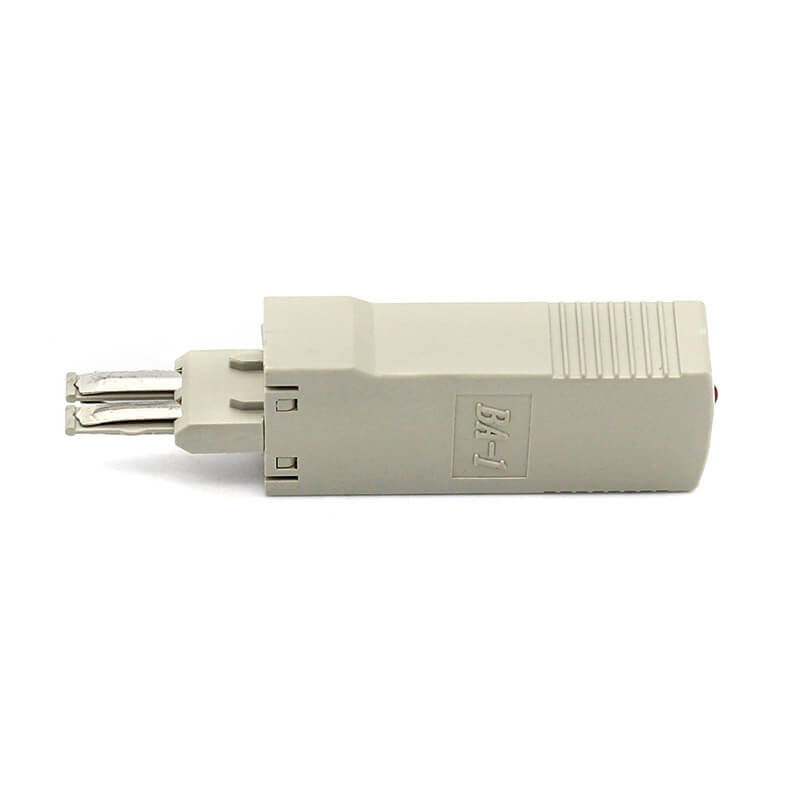

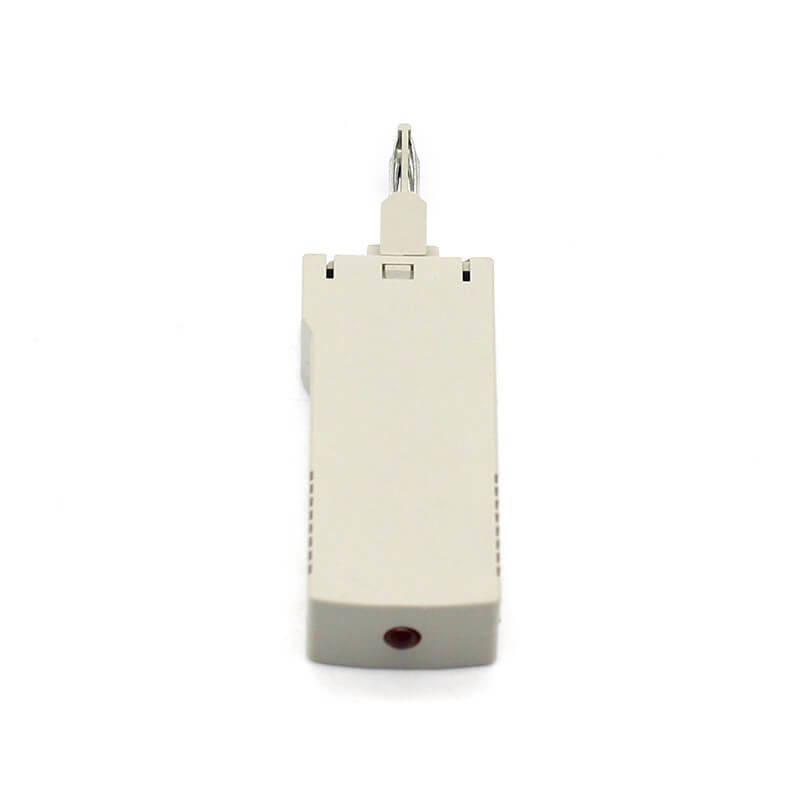

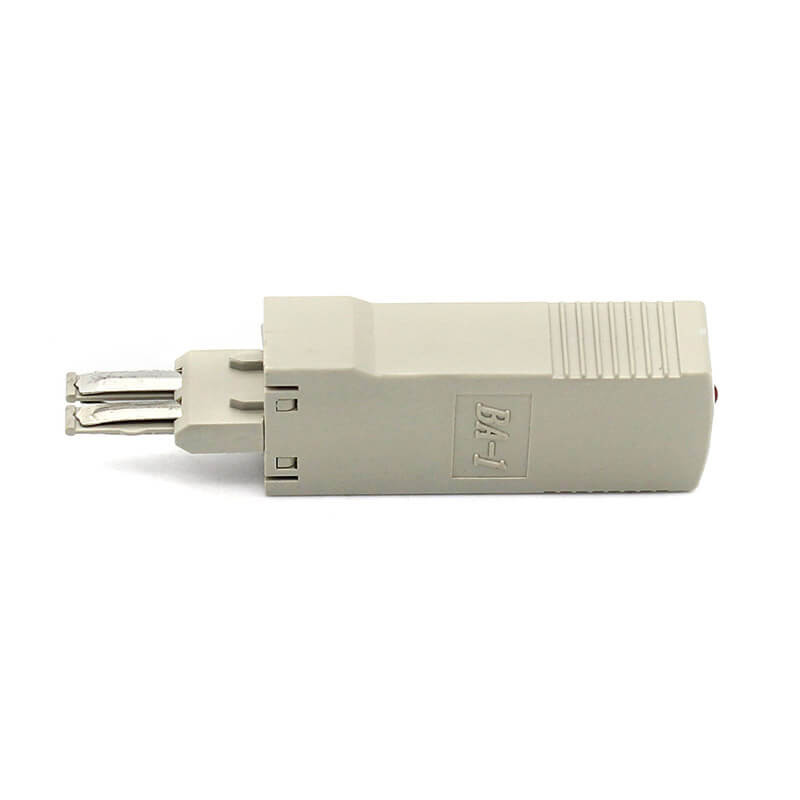

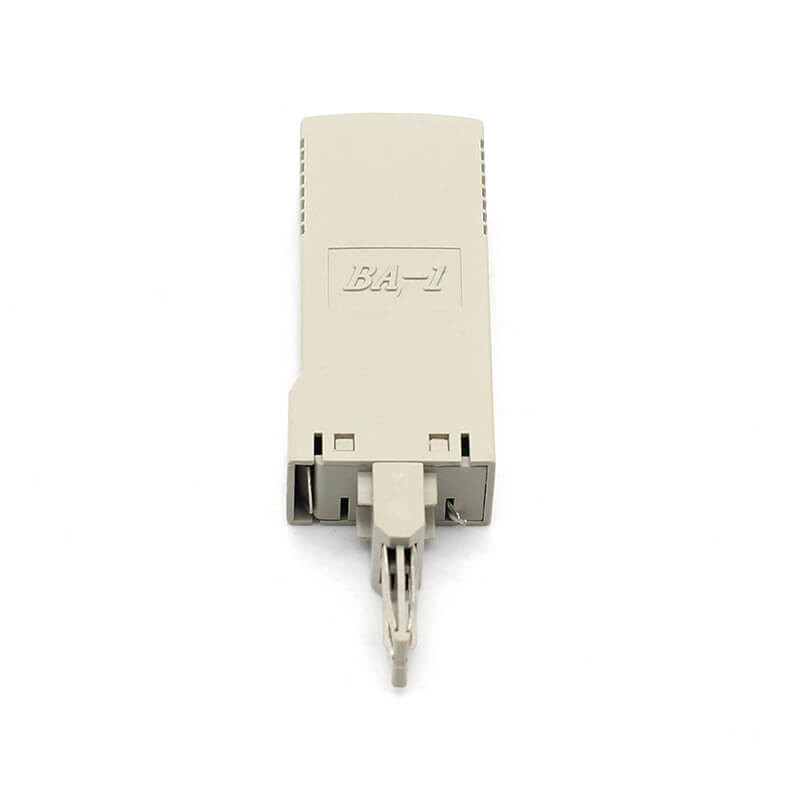

KRONE Lighting Protector

Large Image : KRONE Lighting Protector

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-6011

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Packaging Details:	Normal Package
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days

Contact Now

KRONE Lighting Protector

Description

KRONE Lighting Protector

Specifications:

Direct current break over voltage: 200-260V
Resistance to alternating current: 5A / 10A
Pulse break over voltage: <=800V
Resistance to pulse current: 5KA / 10KA
Zero power resistor: <=22 Ohm
Insulation resistor: >1x10⁸M Ohm
Absolute error: <=2 Ohm
Re-flow operation characteristics: 110mA (60V DC))

Lasting time: 60s
Over-current operation characteristics:a) Initial current: 0.35A - 3Ab) Decreased to 0.15A: <=20 / 15 / 5 / 1.5 / 0.5 / 0.2s

Material	reed using tin bronze, and the outer layer of silver-plated
Insulation Features	≥ 2000Mohm
Contact resistance	≤7mohm
Resistance to voltage	≥1000V/1min without breakdown or arcover-current

Application:
