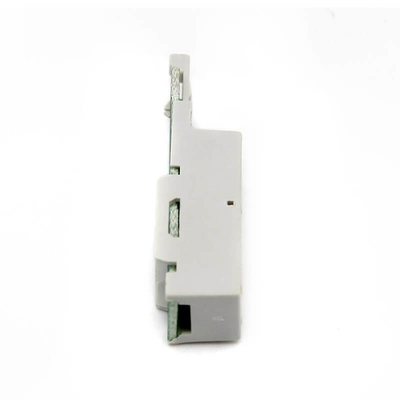

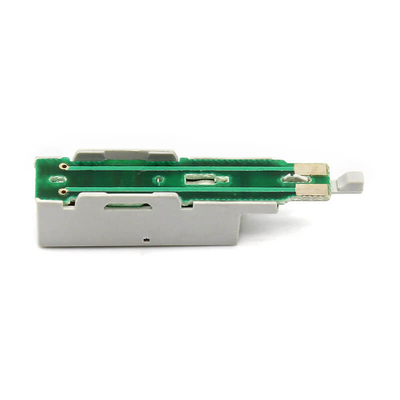

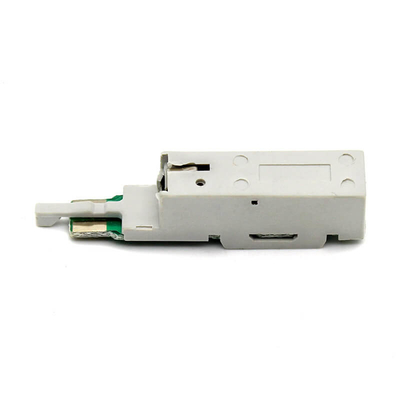

Krone Type Lighting Protector for KRONE Module

Krone Type Lighting Protector for KRONE Module
Krone Type Lighting Protector for KRONE Module Krone Type Lighting Protector for KRONE Module Krone Type Lighting Protector for KRONE Module

Large Image :  Krone Type Lighting Protector for KRONE Module

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Dowell
Model Number: DW-5909 1 063-40
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 PCS Per 7 Days

Krone Type Lighting Protector for KRONE Module

Description

Lighting Protector for KRONE Module

Specification:

Material reed using tin bronze, and the outer layer of silver-plated
Insulation Features ≥ 2000Mohm
Contact resistance ≤7mohm
Direct current break over voltage 200-260V
Resistance to alternating current 5A / 10A
Pulse break over voltage <=800V
Resistance to pulse current 5KA / 10KA

Main technical indexes:

1.1 Material: reed using tin bronze, and the outer layer of silver-plated,

1.2 Approve National Standards: YD/T694-2004 Main Distribution Frame

1.3 Insulation Features: ≥ 2000Mohm

1.4 Contact resistance: ≤7mohm

1.5 Resistance to voltage: ≥1000V/1min without breakdown or arcover-current

Dimension:

Krone Type Lighting Protector for KRONE Module 0

Application

Krone Type Lighting Protector for KRONE Module 1
