Copper Pair Connector 1 Pair STB Module Without Protection

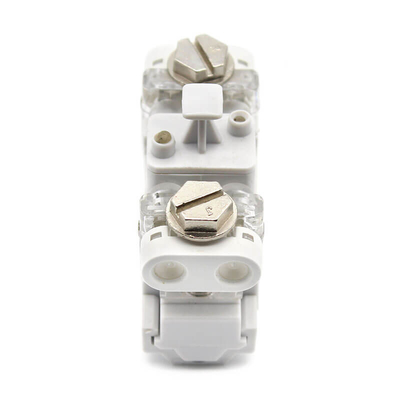

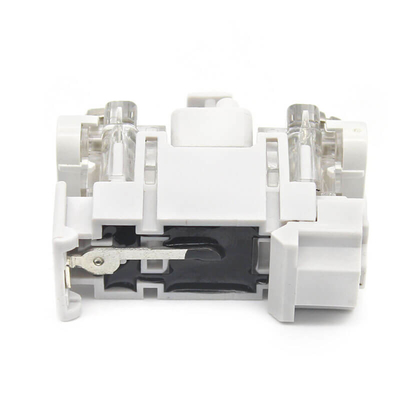

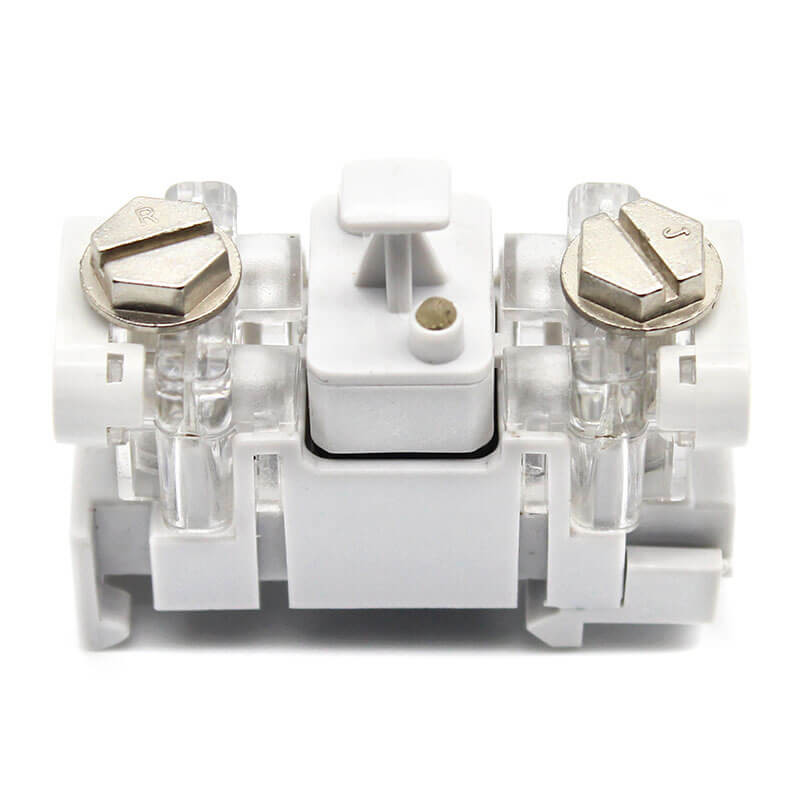

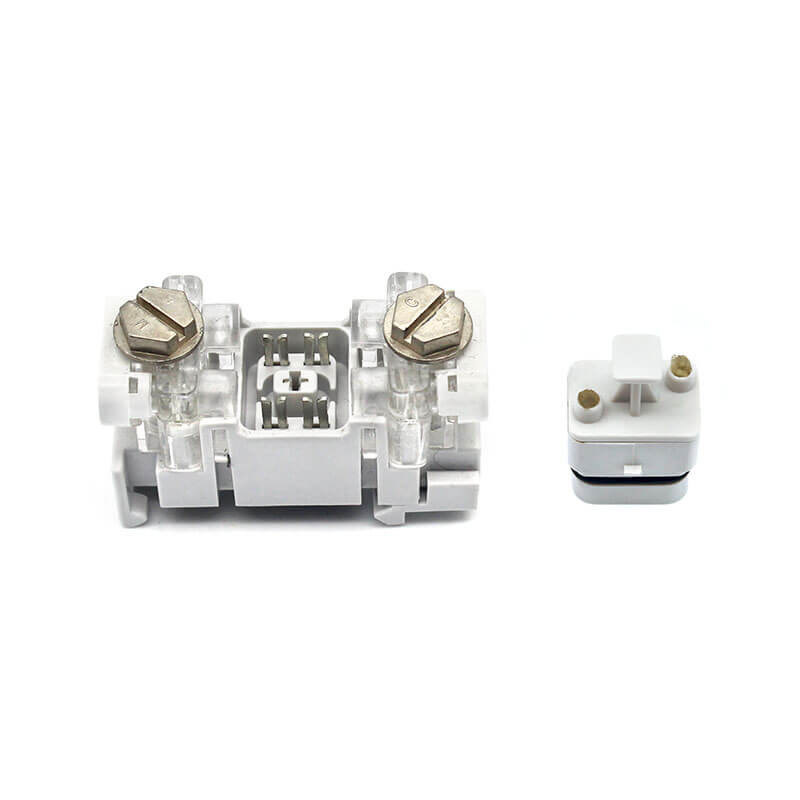

Large Image : Copper Pair Connector 1 Pair STB Module Without Protection

Product Details:

Place of Origin:	China,zhejiang
Brand Name:	DOWELL
Model Number:	DW-5027

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days

Contact Now

Copper Pair Connector 1 Pair STB Module Without Protection

Description

Potting Sealant:	Epoxy Resin	Housing Material:	PC (UL 94V-0)
Wire Pull Out Force:	≥50N	Gauge Range:	0.4-1.2mm Diameter

1 Pair STB Module Without Protection

1-Pair Drop Wire (STB) Module Without Protection is a copper pair connector specifically designed to fit onto 35mm DIN rails, it is designed to connect 2 copper pairs and has common features such as:

● Water proof, sealed IDC termination

● Disconnection and testing facilities

● Tooless termination

Specification:

Housing Material	PC (UL 94V-0)	Contacts Conductor	Phosphor bronze,surface nickel or silver plated
Potting Sealant	Epoxy resin	Terminating Screws	Zinc alloy,plating nickel
Gauge Range	0.4-1.2mm diameter	Insulation Diameter	5mm maximum diameter
Wire Pull Out Force	≥50N	Termination Torque	≤1N/m
Plug Insertion Force	<50N	Plug Withdrawal Force	<35N

Dimension:

Application:

The subscriber connector unit is used for the connection of an outdoor to an indoor drop wire. It allows for circuit testing in both network directions.The box provides environmental protection. The product is specially recommended for aggressive environmental conditions,terminations where future requirements may include different types of protection.

Tag:

Contact Person: Henry

Tel: +86-13857874858

Fax: 86-574-27877477
