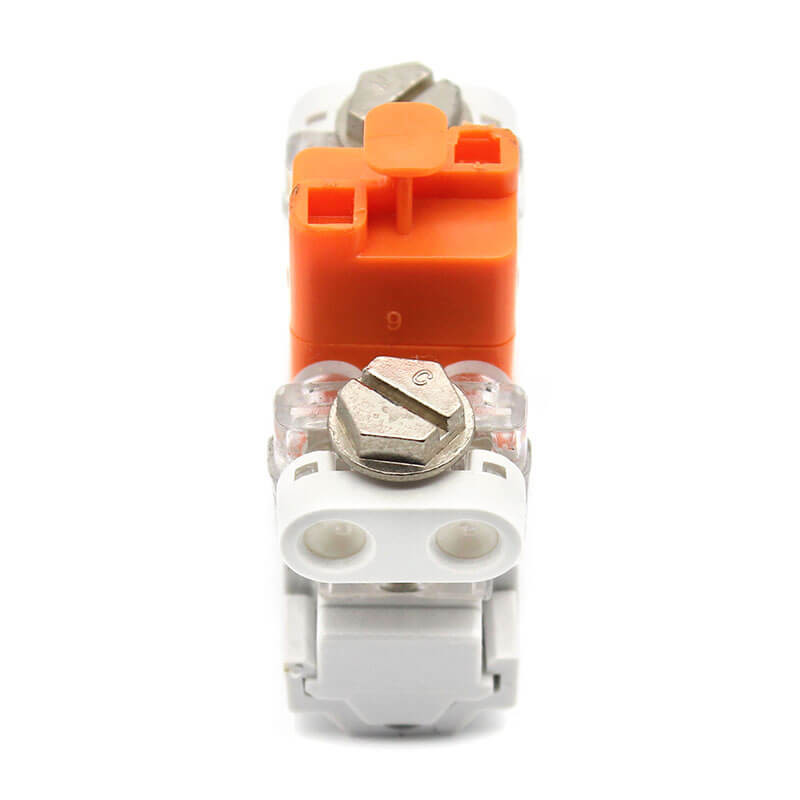

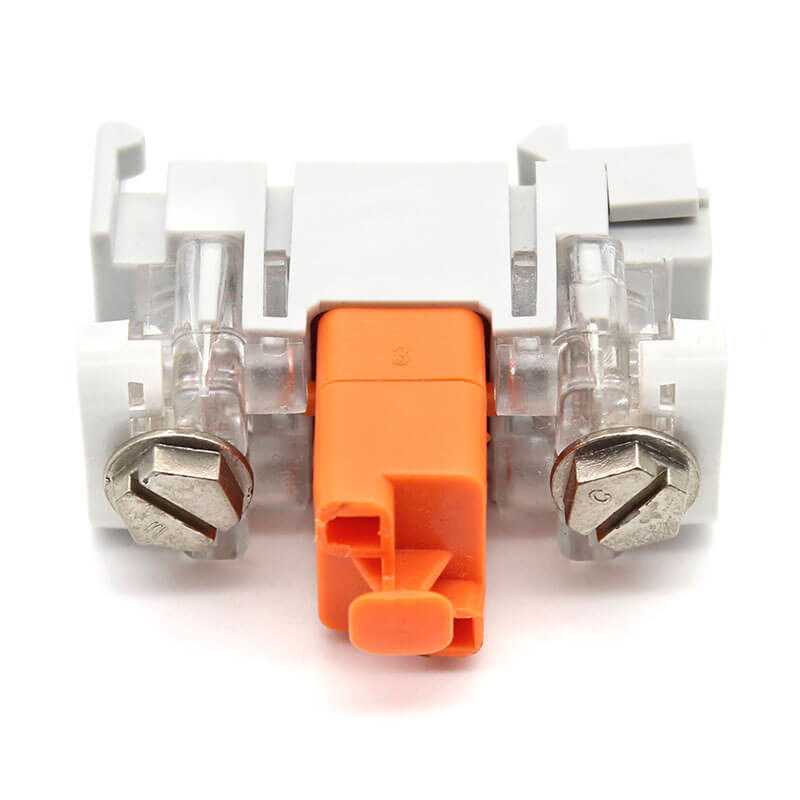

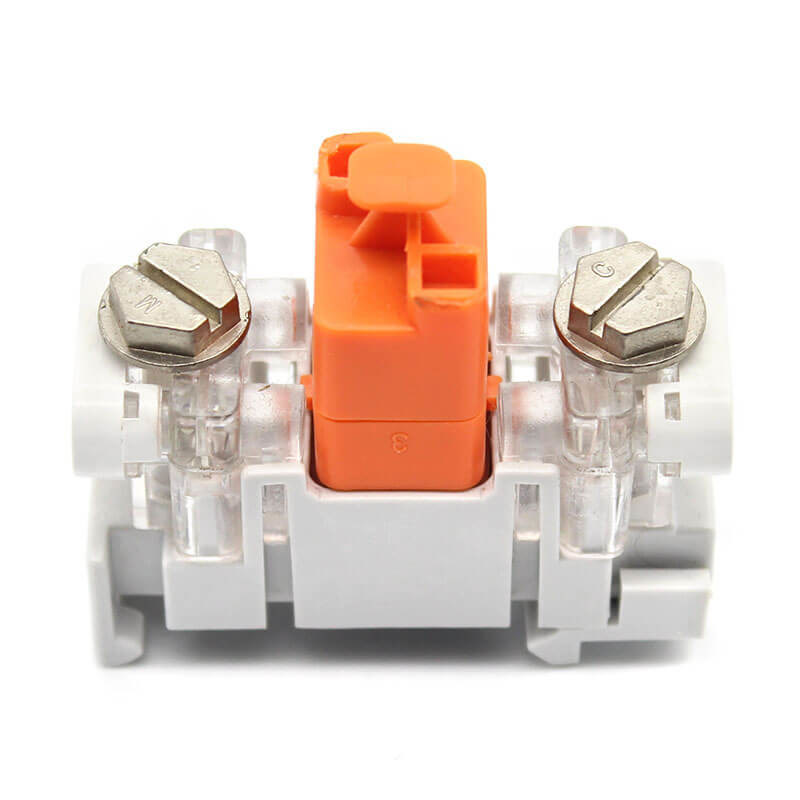

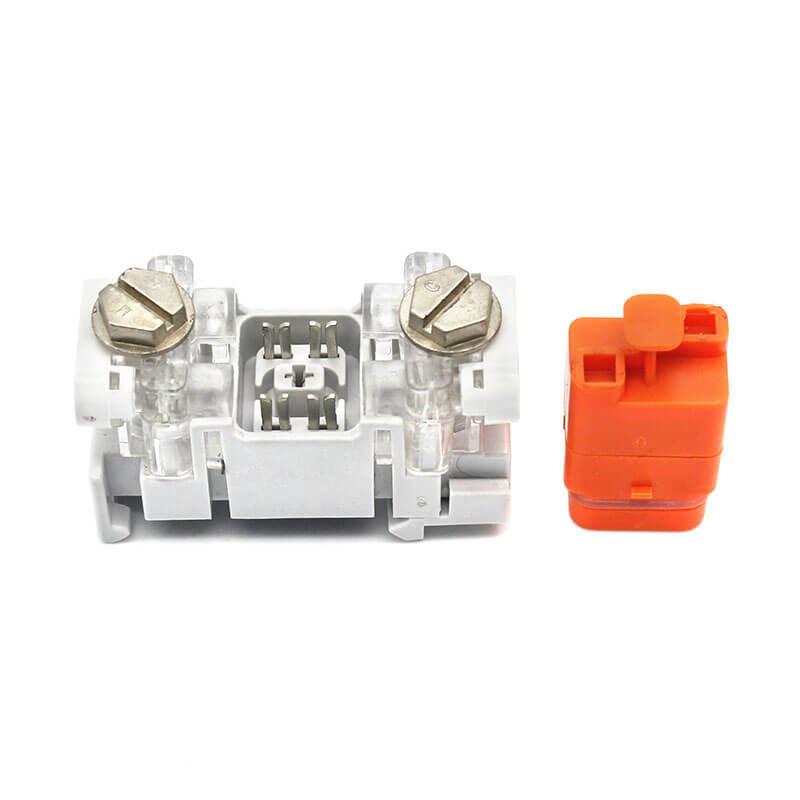

1 Pair STB Module With GDT And PTC Protection

1 Pair STB Module With GDT And PTC Protection
1 Pair STB Module With GDT And PTC Protection 1 Pair STB Module With GDT And PTC Protection 1 Pair STB Module With GDT And PTC Protection 1 Pair STB Module With GDT And PTC Protection

Large Image :  1 Pair STB Module With GDT And PTC Protection

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-5029
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 PCS Per 7 Days
Contact Now

1 Pair STB Module With GDT And PTC Protection

Description
Housing Material: PC (UL 94V-0) Potting Sealant: Epoxy Resin
Gauge Range: 0.4-1.2mm Diameter Wire Pull Out Force: ≥50N

1 Pair STB Module With GDT And PTC Protection

1-Pair Drop Wire (STB) Module Without Protection is a copper pair connector specifically designed to fit onto 35mm DIN rails, it is designed to connect 2 copper pairs and has common features such as:

● Water proof, sealed IDC termination
● Disconnection and testing facilities
● Tooless termination
● 5 point protection plug with 1×3-pole
Specification:
Housing Material PC (UL 94V-0) Contacts Conductor Phosphor bronze,surface nickel or silver plated
Potting Sealant Epoxy resin Terminating Screws Zinc alloy,plating nickel
Gauge Range 0.4-1.2mm diameter Insulation Diameter 5mm maximum diameter
Wire Pull Out Force ≥50N Termination Torque ≤1N/m
Plug Insertion Force <50N Plug Withdrawal Force <35N

Application:

The subscriber connector unit is used for the connection of an outdoor to an indoor drop wire. It allows for circuit testing in both network directions.The box provides environmental protection. The product is specially recommended for aggressive environmental conditions,terminations where future requirements may include different types of protection.
1 Pair STB Module With GDT And PTC Protection 0

Tag:

krone connection module,

10 pair disconnection module,

terminal block module
