SM MM FTTH Fiber Optic Cord PE Sheath Outdoor Armored Fiber Optic Cable

SM MM FTTH Fiber Optic Cord PE Sheath Outdoor Armored Fiber Optic Cable
SM MM FTTH Fiber Optic Cord PE Sheath Outdoor Armored Fiber Optic Cable SM MM FTTH Fiber Optic Cord PE Sheath Outdoor Armored Fiber Optic Cable SM MM FTTH Fiber Optic Cord PE Sheath Outdoor Armored Fiber Optic Cable SM MM FTTH Fiber Optic Cord PE Sheath Outdoor Armored Fiber Optic Cable

Large Image :  SM MM FTTH Fiber Optic Cord PE Sheath Outdoor Armored Fiber Optic Cable

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: GYTC8S
Payment & Shipping Terms:
Minimum Order Quantity: 4KM
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Roll Per 7 Days
Contact Now

SM MM FTTH Fiber Optic Cord PE Sheath Outdoor Armored Fiber Optic Cable

Description
Type: Fiber Optic Cable Fiber Type: G652D/ G657A
Color: Black Temperature: -40 To + 70 ℃ ℃
Storage Temperature: －20 ℃～＋60 ℃ Operating Temperature: －20 ℃～＋60 ℃
Highlight:

SM Fiber Optic Cord

,

FTTH Fiber Optic Cord

,

FTTH Armored Fiber Optic Cable

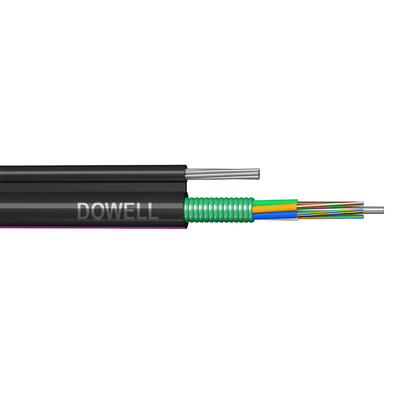

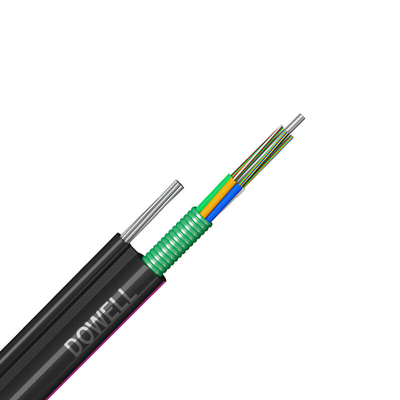

SM MM FTTH Figure 8 Fiber Optic Cable PE sheath Outdoor Distribution

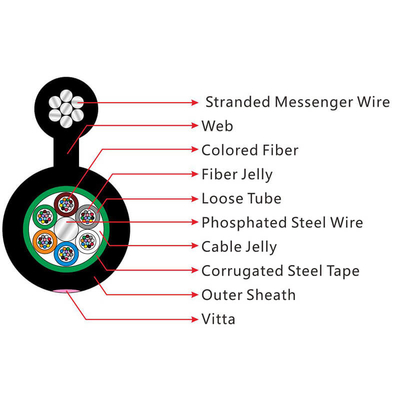

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.

Optical Characteristics:

  G.652 G.657 50/125um 62.5/125um
Attenuation
(+20 )		 @850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.5 dB/km ≤1.5 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.24 dB/km ≤0.26 dB/km
Bandwidth @850nm     ≥500 Mhz.km ≥200 Mhz.km
Class A 850nm @1300nm     ≥1000 Mhz.km ≥600 Mhz.km
Numerical aperture     0.200±0.015NA 0.275±0.015NA
Cable Cutoff Wavelength ≤1260nm ≤1480nm

Technical Parameters:

Cable Type Fiber
Count		 Tubes
/Diameter		 Filler
Rod		 Cable
Diameter
mm		 Tensile
Strength
Long/Short
Term N		 Crush
Resistance
Long/Short
Term N/100m		 Bending Radius
Static/Dynamic
mm
GYTFC8S-6 6 1/2.0 4 5.4*8.6-15.0 1000/3000 300/1000 10D/20D
GYFTC8S-12 12 1/2.0 3 5.4*8.6-15.0 1000/3000 300/1000 10D/20D
GYFTC8S-24 24 2/2.0 1 5.4*8.6-15.0 1000/3000 300/1000 10D/20D
GYFTC8S-48 48 4/2.0 1 5.4*9.8-16.5 1000/3000 300/1000 10D/20D
GYFTC8S-72 72 6/2.0 0 5.4*10.8-17.5 1000/3000 300/1000 10D/20D
Loose tube Material PBT Color Standard spectrum
Water blocking system Material Water blocking tape / Filling gel
Armor Material Corrugated steel tape
Central strength member Material FRP Size 1.4mm(6-48)/2.0mm(72-144)
Mental strength member Material Stranded steel wire Size 7 1.0mm
Gallus Material PE Size 2.0*1.5mm
Outsheath Material PE Color Black
Characteristics
1.1 Good mechanical and temperature performance.
1.2 High strength loose tube that is hydrolysis resistant.
1.3 Special tube filling compound ensure a critical protection of fiber.
1.4 Crush resistance and flexibility.
1.5 PE sheath protects cable from ultraviolet radiation.

Application:

2.1 Suitable for aerial, pipeline laying method.

2.2 Adopted to outdoor distribution.
2.3 Long distance and local area network communication.

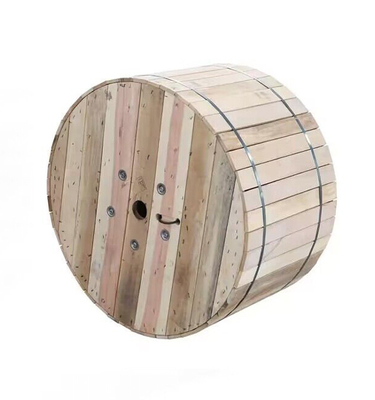

Package:

SM MM FTTH Fiber Optic Cord PE Sheath Outdoor Armored Fiber Optic Cable 0

Production Flow:

SM MM FTTH Fiber Optic Cord PE Sheath Outdoor Armored Fiber Optic Cable 1
