Detail Information

Type:	Fiber Optic Cable	Fiber Type:	G652D/ G657A
Color:	Black	Temperature:	-40 To + 70 ℃ ℃
Storage Temperature:	－20 ℃～＋60 ℃	Operating Temperature:	－20 ℃～＋60 ℃
Highlight:	SM Fiber Optic Cord , FTTH Fiber Optic Cord , FTTH Armored Fiber Optic Cable

Product Description

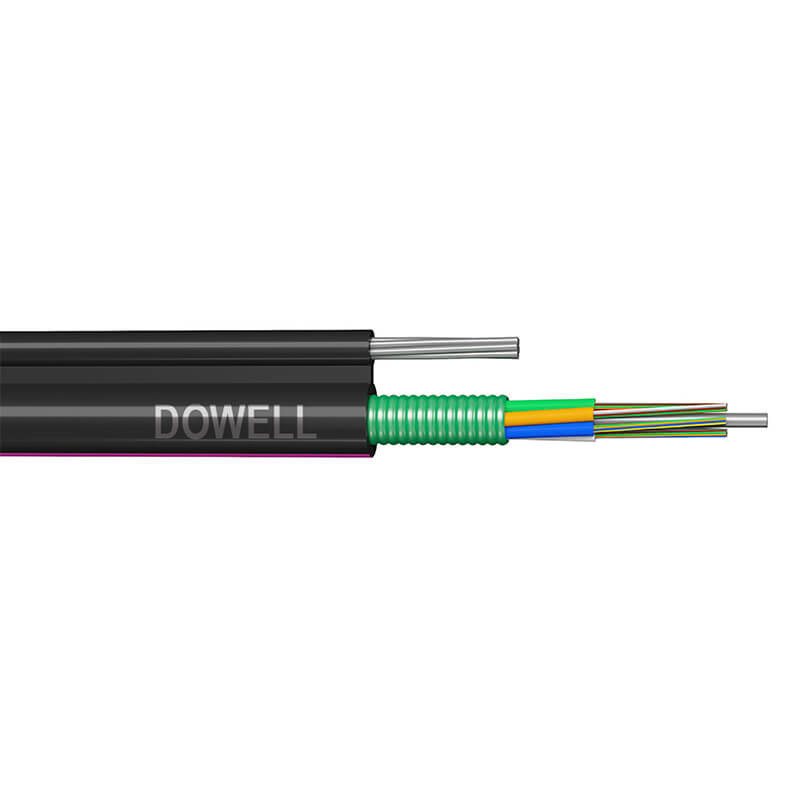

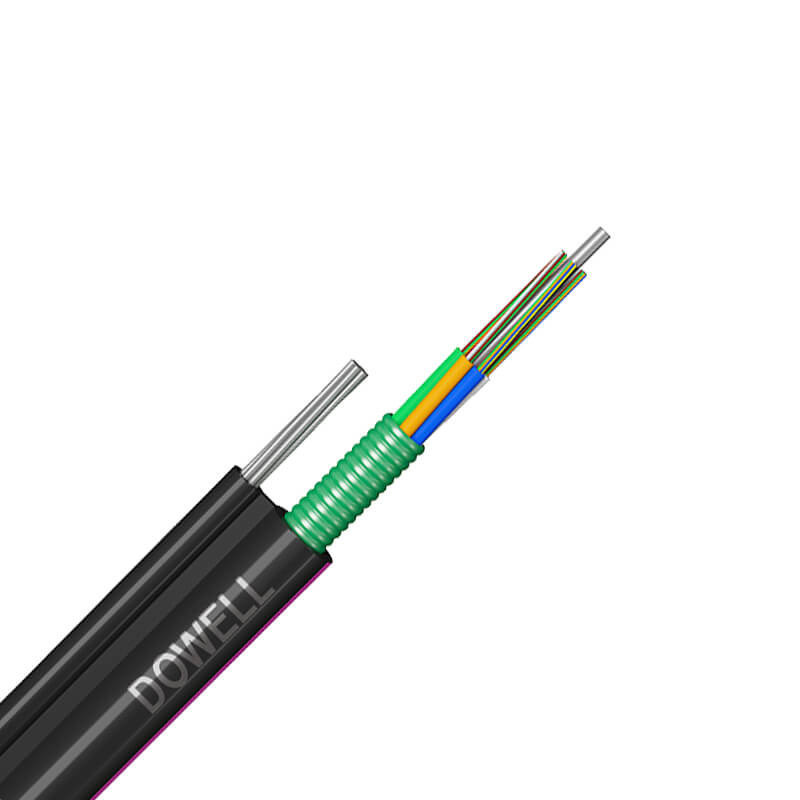

SM MM FTTH Figure 8 Fiber Optic Cable PE sheath Outdoor Distribution

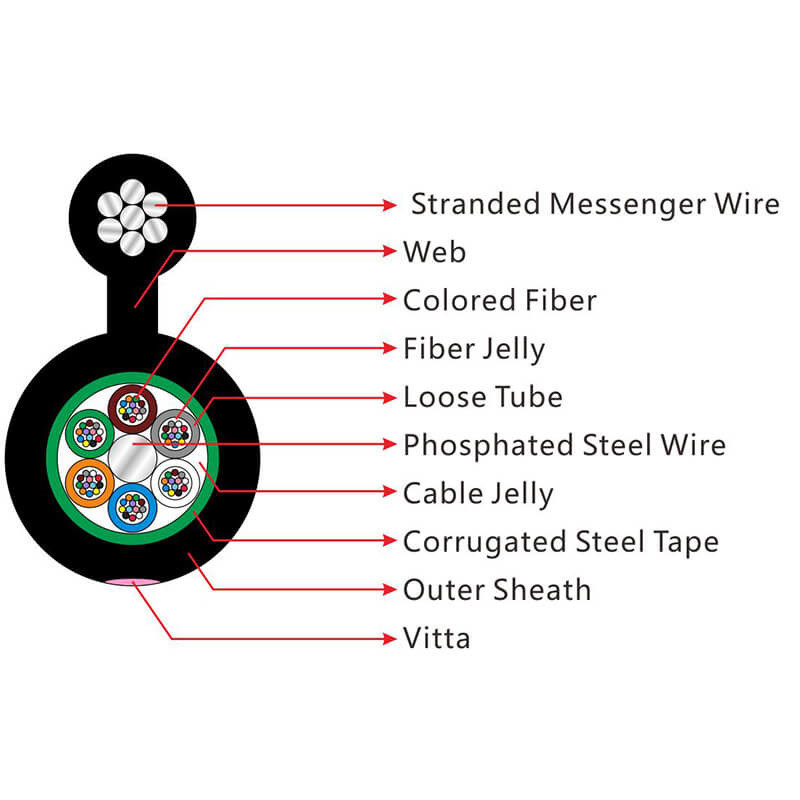

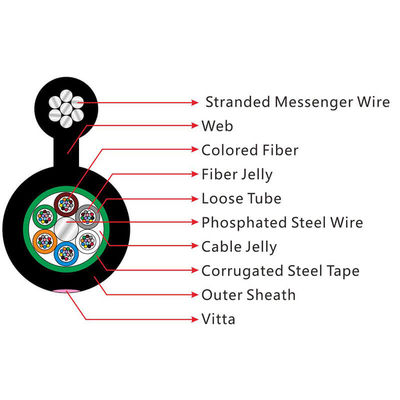

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.

Optical Characteristics:

		G.652	G.657	50/125um	62.5/125um
		G.652	G.657	50/125um	62.5/125um
Attenuation (+20 )	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.24 dB/km	≤0.26 dB/km
Bandwidth	@850nm			≥500 Mhz.km	≥200 Mhz.km
Class A 850nm	@1300nm			≥1000 Mhz.km	≥600 Mhz.km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Cable Cutoff Wavelength		≤1260nm	≤1480nm

Technical Parameters:

Cable Type	Fiber Count	Tubes /Diameter	Filler Rod	Cable Diameter mm	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GYTFC8S-6	6	1/2.0	4	5.4*8.6-15.0	1000/3000	300/1000	10D/20D
GYFTC8S-12	12	1/2.0	3	5.4*8.6-15.0	1000/3000	300/1000	10D/20D
GYFTC8S-24	24	2/2.0	1	5.4*8.6-15.0	1000/3000	300/1000	10D/20D
GYFTC8S-48	48	4/2.0	1	5.4*9.8-16.5	1000/3000	300/1000	10D/20D
GYFTC8S-72	72	6/2.0	0	5.4*10.8-17.5	1000/3000	300/1000	10D/20D
Loose tube		Material	PBT		Color	Standard spectrum
Water blocking system		Material	Water blocking tape / Filling gel
Armor		Material	Corrugated steel tape
Central strength member		Material	FRP		Size	1.4mm(6-48)/2.0mm(72-144)
Mental strength member		Material	Stranded steel wire		Size	7 1.0mm
Gallus		Material	PE		Size	2.0*1.5mm
Outsheath		Material	PE		Color	Black

Characteristics

1.1 Good mechanical and temperature performance.

1.2 High strength loose tube that is hydrolysis resistant.

1.3 Special tube filling compound ensure a critical protection of fiber.

1.4 Crush resistance and flexibility.

1.5 PE sheath protects cable from ultraviolet radiation.

Application:

2.1 Suitable for aerial, pipeline laying method.

2.2 Adopted to outdoor distribution.

2.3 Long distance and local area network communication.

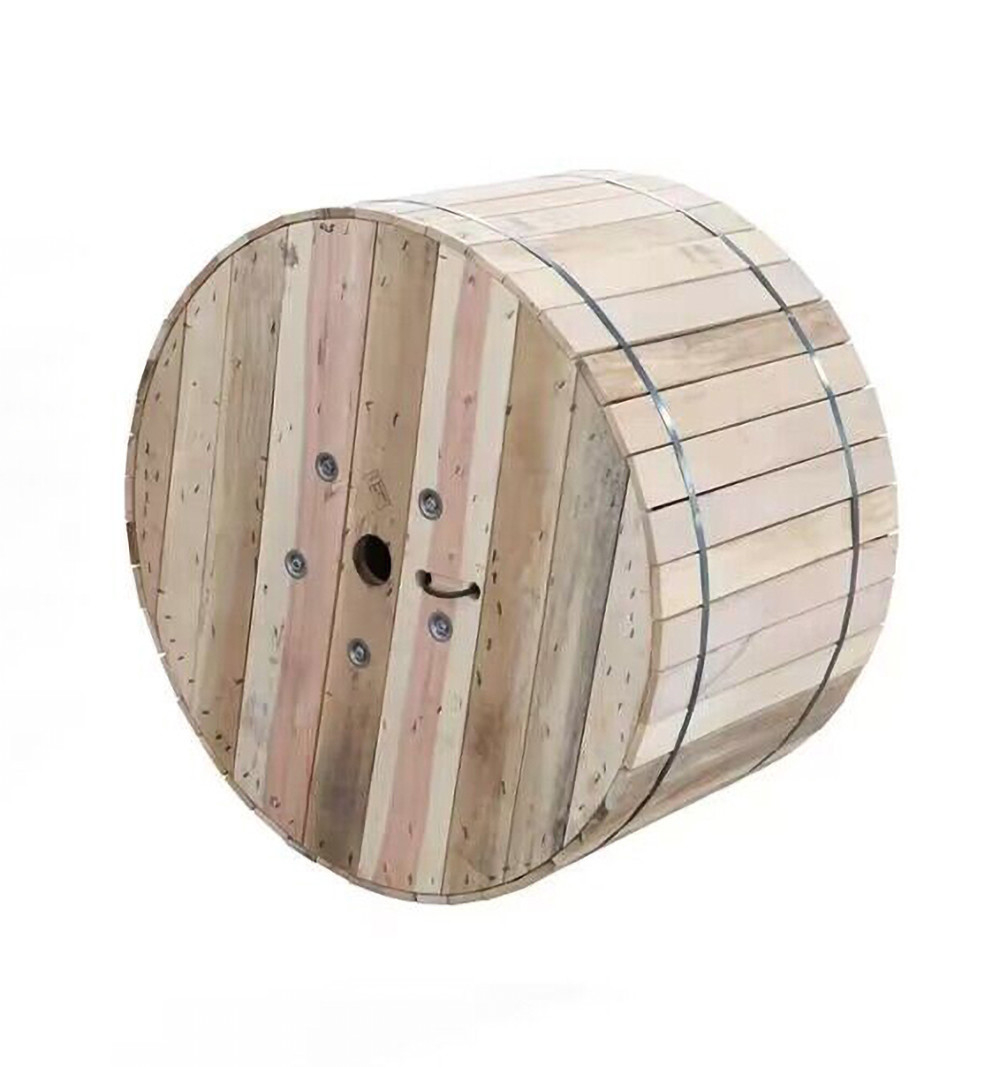

Package:

Production Flow:

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	GYTC8S

Minimum Order Quantity:	4KM
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 Roll Per 7 Days
