FTTH Duplex Armored Fiber Optic Cable with High Tensile Strength For Indoor Outdoor

Large Image : FTTH Duplex Armored Fiber Optic Cable with High Tensile Strength For Indoor Outdoor

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	GJSFJBV

Payment & Shipping Terms:

Minimum Order Quantity:	4KM
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 Roll Per 7 Days

Contact Now

FTTH Duplex Armored Fiber Optic Cable with High Tensile Strength For Indoor Outdoor

Description

Fiber Type:	G652D/G657A	Attenuation:	@850nm @1300nm @1310nm @1550nm
Tensile Strength Long/Short Term N:	300/750	Crush Resistance Long/Short Term N/100m:	200/1000
Operating Temperature:	－20 ℃～＋60 ℃	Storage Temperature:	－20 ℃～＋60 ℃
Highlight:	ftth fiber optic cable , ftth fiber optic drop cable , duplex fiber optic cable

FTTH Duplex Armored Optic Fiber Cable SM MM Outdoor Indoor cabling

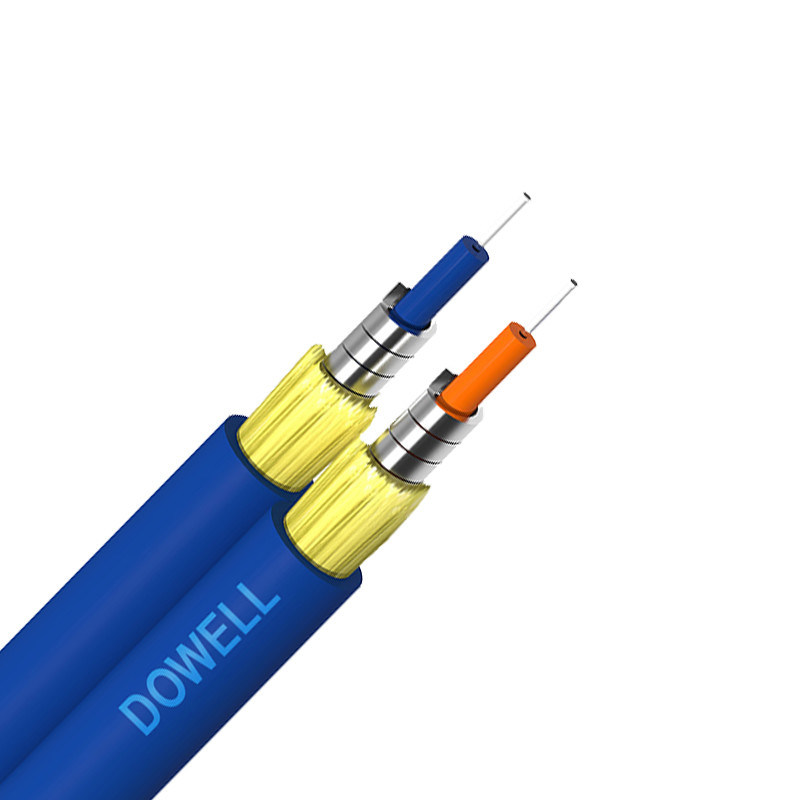

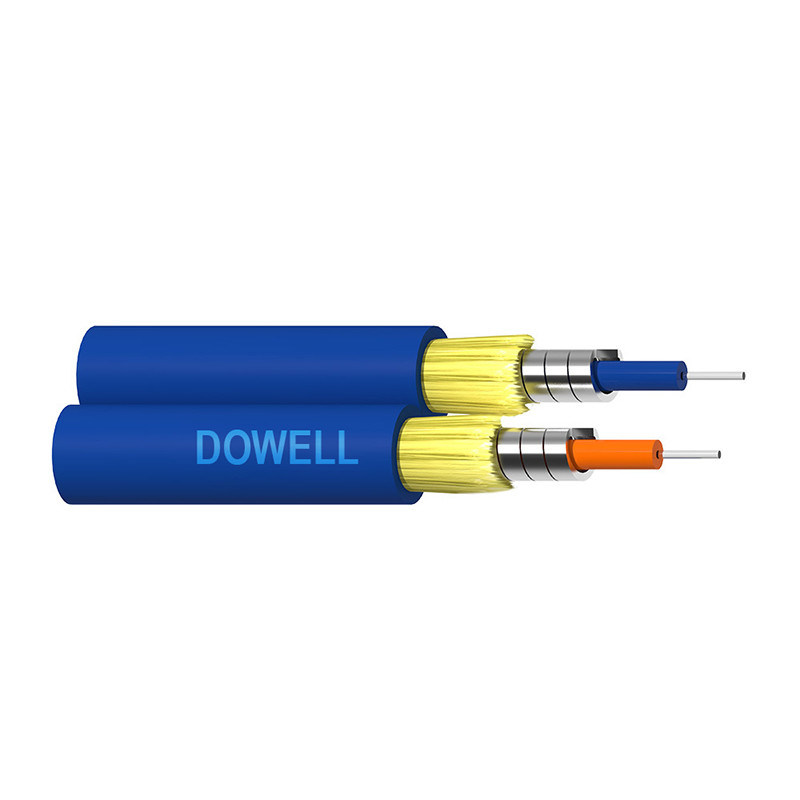

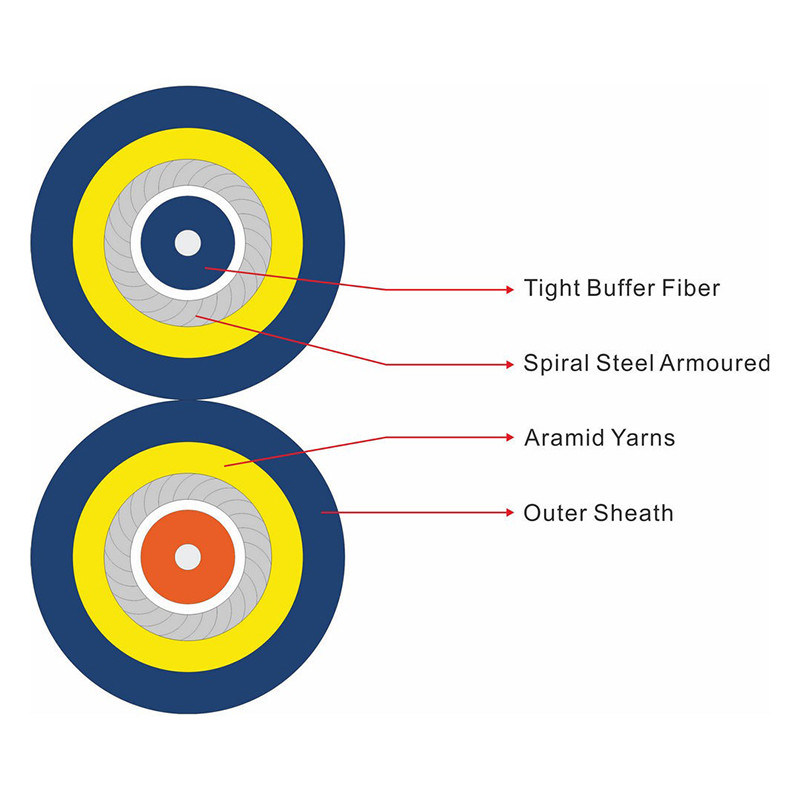

GJSFJBV Indoor Duplex Armored Optical Fiber Cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into figure 8 shape fiber optic cable with PVC or LSZH sheath.

Optical Characteristics:

		G.652	G.657	50/125um	62.5/125um
Attenuation (+20 )	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.36 dB/km
	@1550nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth	@850nm			≥500 Mhz.km	≥500 Mhz.km
Class A 850nm	@1300nm			≥1000 Mhz.km	≥600 Mhz.km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Cable Cutoff Wavelength		≤1260nm	≤1480nm

Technical Parameters:

Cable Type	Tight Diameter mm	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GJSFJBV	0.6	2.0*4.1	30	300/750	200/1000	20H/10H
GJSFJBV	0.6	2.8*5.7	35	300/750	200/1000	20H/10H
GJSFJBV	0.9	3.0*6.1	43	300/750	200/1000	20H/10H

Characteristics:

1.1 Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent

1.2 High strength aramid yarn,high performance outer sheath

1.3 Light weight,flexibility,and friendly installation.

1.4 Good mechanical and environmental performance.

1.5 Flame retardant outer sheath provide good safety.

Application:

2.1 All kinds of connector

2.2 Fiber optic pigtails, patch cords.

2.3 Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc

2.4 Fiber optic equipment and instrument

2.5 Indoor cabling,building cabling,LAN, etc

2.6 Long distance, outdoor/indoor cabling, trunking,etc

2.7 Backbone network to the equipment in the building

2.8 Small installation space cabling

Our Package:

Production Flow:

Related Products:

Tag:
