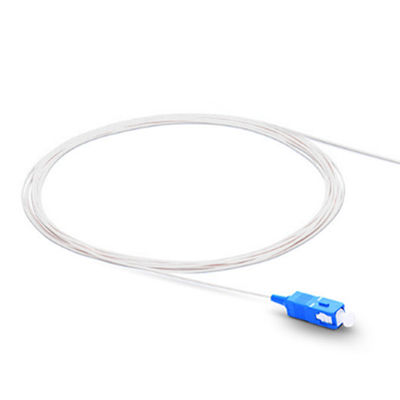

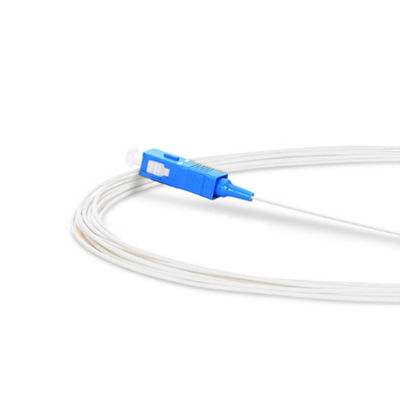

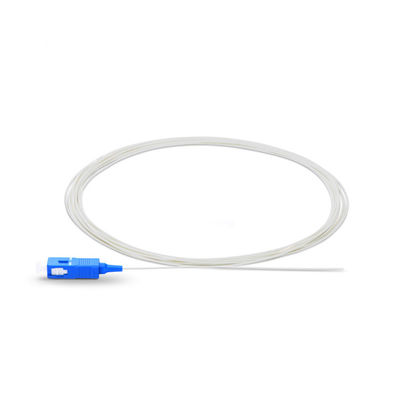

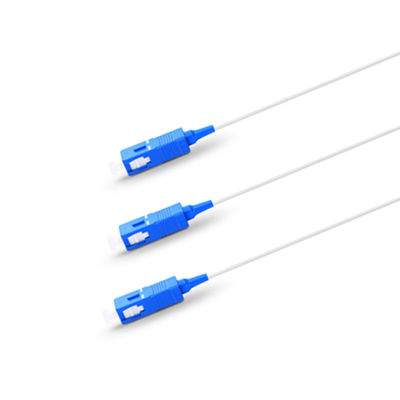

FTTH SC UPC Singlemode Fiber Optic Pigtail 1 Meter for Low-Loss Fusion Splicing

FTTH SC UPC Singlemode Fiber Optic Pigtail 1 Meter for Low-Loss Fusion Splicing
FTTH SC UPC Singlemode Fiber Optic Pigtail 1 Meter for Low-Loss Fusion Splicing FTTH SC UPC Singlemode Fiber Optic Pigtail 1 Meter for Low-Loss Fusion Splicing FTTH SC UPC Singlemode Fiber Optic Pigtail 1 Meter for Low-Loss Fusion Splicing FTTH SC UPC Singlemode Fiber Optic Pigtail 1 Meter for Low-Loss Fusion Splicing

Large Image :  FTTH SC UPC Singlemode Fiber Optic Pigtail 1 Meter for Low-Loss Fusion Splicing

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Payment & Shipping Terms:
Minimum Order Quantity: 500
Delivery Time: 7-15 Days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 5000pcs per 7 days
Contact Now

FTTH SC UPC Singlemode Fiber Optic Pigtail 1 Meter for Low-Loss Fusion Splicing

Description
Fiber Mode: Singlemode (G.652), Multimode (OM1/OM2/OM3/OM4) Connector Types: LC, FC, SC, ST, MU, MTRJ, E2000
Fiber Cores: Simplex, Duplex, 4 Fibers, 6 Fibers, 8 Fibers, 12 Fibers, 24fibers, 48fibers Etc. Pigtail Types: Bundle, Ribbon, Waterproof, Armored
Fiber Cable Diameters: Φ0.9, Φ2.0, Φ3.0mm Humidity: 95% RH (Non Packaging)
Highlight:

ftth fiber optic cable

,

ftth fiber optic drop cable

,

outdoor fiber optic cable

FTTH SC UPC Simplex Fiber Optic Pigtail 0.9mm, 1 Meter, LSZH
A fiber optic pigtail is a short length of optical fiber cable that has a factory-installed connector on one end and exposed, unconnected fiber on the other. The raw end is fusion spliced to a bare fiber from another cable or a fiber optic system, creating a continuous, low-loss optical path. The primary purpose of a pigtail is to provide a reliable, professional-grade method for connecting the fragile fiber to a robust and standardized connector.
Key Features
  • Single vs. Multi-fiber: While most common as single-fiber, they are also available as multi-fiber pigtails (e.g., 12-fiber ribbon pigtails).
  • Connector Types: The terminated end can have any standard connector, such as LC, SC, FC, ST, or MTP/MPO (for multi-fiber).
  • Fiber Type:
    • Simplex: One fiber per cable.
    • Duplex: Two fibers (often for Tx/Rx) side-by-side.
  • Jacket Type:
    • 900µm Buffered: A thin, tight buffer coating directly on the fiber. Flexible and ideal for patch panels and splice trays.
    • 2mm or 3mm Jacketed: A thicker, more robust cable, similar to a patch cord but only connectorized on one end.
Connector Performance Specifications
Connector Type Multimode Singlemode UPC Singlemode APC
LC, SC, ST and FC connectors at 850 and 1300 nm at 1310 and 1550 nm at 1310 and 1550 nm
Insertion Loss (dB) 0.25 (Typical) 0.25 (Typical) 0.25 (Typical)
Return Loss (dB) - 55 (Typical) 65 (Typical)
Installation Process
  • Preparation: The protective jacket of the incoming fiber cable is stripped back, and the bare glass fiber is cleaved (cut perfectly square).
  • Pigtail Preparation: The raw end of the pigtail is also stripped and cleaved.
  • Fusion Splicing: Both perfectly cleaved fiber ends are aligned automatically inside the fusion splicer. An electric arc is used to melt the two glass ends and fuse them together permanently.
  • Protection: The fragile splice point is protected by a splice protector or heat-shrink sleeve that is placed over the fusion point.
Common Applications
  • Fiber Optic Patch Panels & ODFs: Most common use in data centers or telecom rooms where multi-fiber trunk cables are connected to patch panels.
  • Splice Closures: Used in outside plant or FTTx networks to connect feeder cables to drop cables.
  • Terminating Active Equipment: Direct termination for equipment like ONTs or media converters.
  • Repair: Used to repair broken fibers by splicing a pigtail in-line to replace damaged sections.
FTTH SC UPC Singlemode Fiber Optic Pigtail 1 Meter for Low-Loss Fusion Splicing 0
