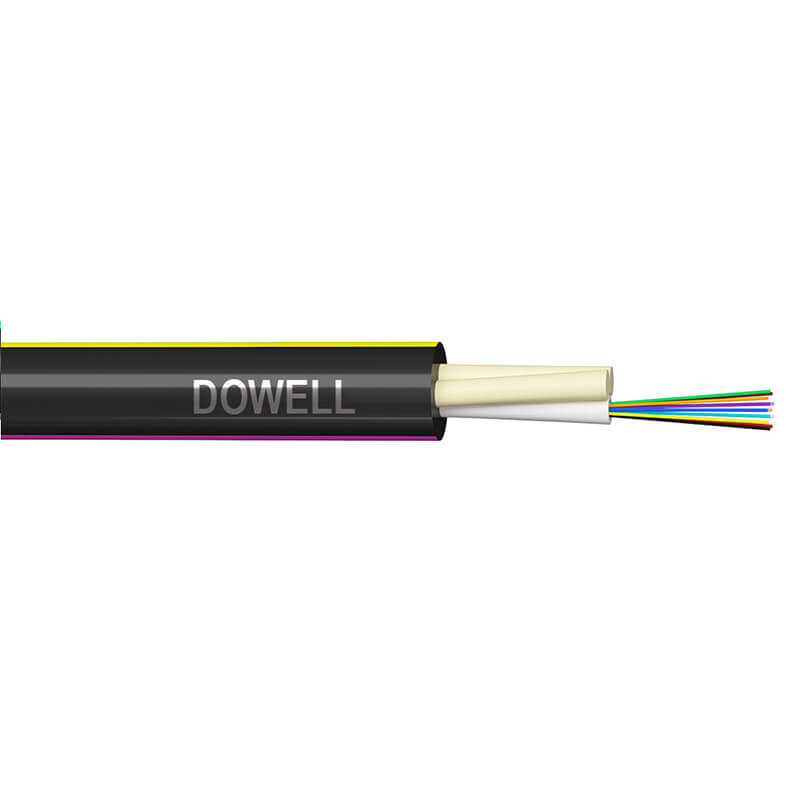

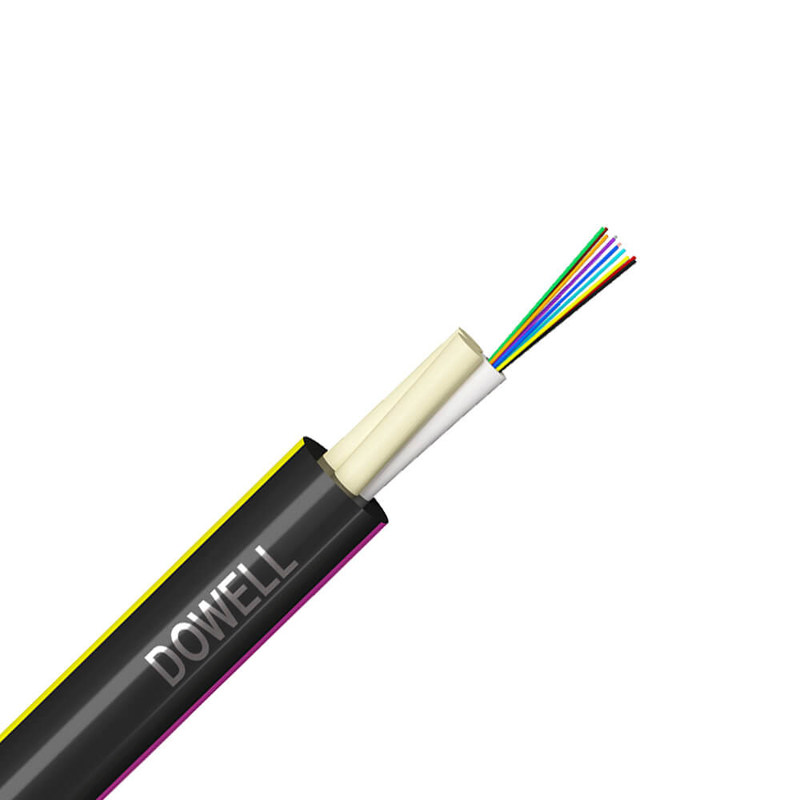

2 FRP Aerial 6 Core Fiber Optic Cable 8 Cores GYTS Fiber Cable

2 FRP Aerial 6 Core Fiber Optic Cable 8 Cores GYTS Fiber Cable
2 FRP Aerial 6 Core Fiber Optic Cable 8 Cores GYTS Fiber Cable 2 FRP Aerial 6 Core Fiber Optic Cable 8 Cores GYTS Fiber Cable 2 FRP Aerial 6 Core Fiber Optic Cable 8 Cores GYTS Fiber Cable 2 FRP Aerial 6 Core Fiber Optic Cable 8 Cores GYTS Fiber Cable

Large Image :  2 FRP Aerial 6 Core Fiber Optic Cable 8 Cores GYTS Fiber Cable

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: GYFFY
Payment & Shipping Terms:
Minimum Order Quantity: 4KM
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Roll Per 7 Days
Contact Now

2 FRP Aerial 6 Core Fiber Optic Cable 8 Cores GYTS Fiber Cable

Description
Fiber Type: G652D/G657A Cable Count: 2F 4F 6F 8F 10F 12F
Highlight:

Aerial 6 Core Fiber Optic Cable

,

Aerial GYTS Fiber Cable

,

8 Cores GYTS Fiber Cable

Outdoor 2 FRP Aerial Fiber Optic Cable For Short Span Aerial And Suct Installation

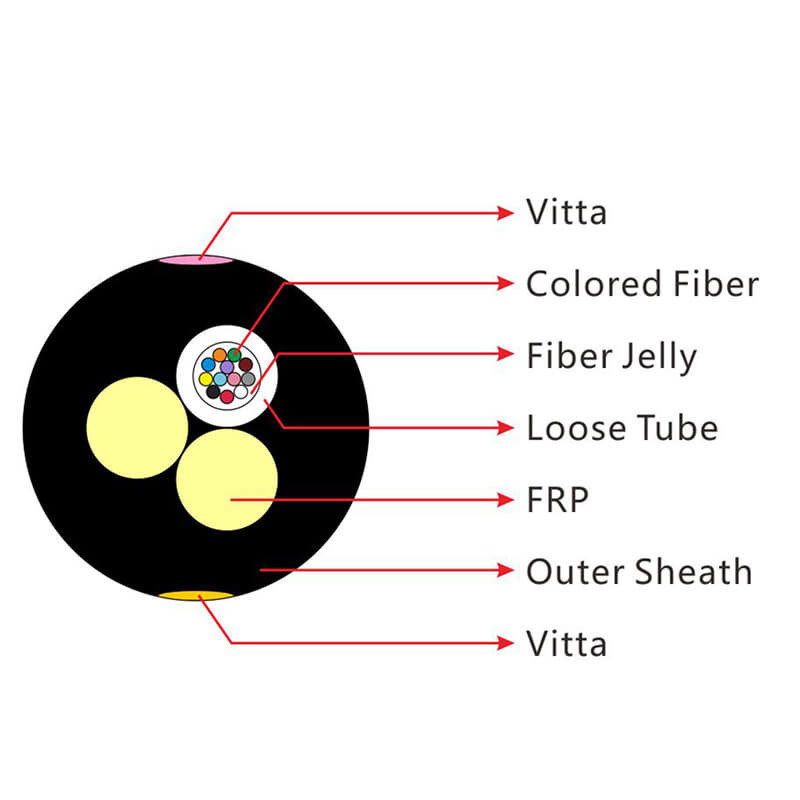

G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water resistant gel compound top rovide crucial protection for the fiber. Over the tube. water-blocking material is applied to keep the cable watertioht. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. lt is es-pecially suitable for installation in aerial for long-distance communication.

Optical Characteristics:
    G.652 G.657 50/125um 62.5/125um
Attenuation
(+20 )		 @850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth @850nm     ≥500 Mhz.km ≥200 Mhz.km
Class A 850nm @1300nm     ≥1000 Mhz.km ≥500 Mhz.km
Numerical aperture     0.200±0.015NA 0.275±0.015NA
Cable Cutoff Wavelength ≤1260nm ≤1480nm
Technical Parameters:
Cable Core Unit 2F 4F 6F 8F 1F 12F
No. of Tubes   1 1 1 1 1 1
No. of Fibers Core 2 4 6 8 10 12
Fiber Counts in Tube Core 2 4 6 8 10 12
Cable Diameter mm 6.6±0.5 6.8±0.5
Cable Weight Kg/Km 40±10 45±10
Allowable tensile
Strength		 N Span=80 1.5*P
Allowable crush
resistance		 N 1000N/100mm

Application:

Applicable for short span aerial and duct installation

2 FRP Aerial 6 Core Fiber Optic Cable 8 Cores GYTS Fiber Cable 0

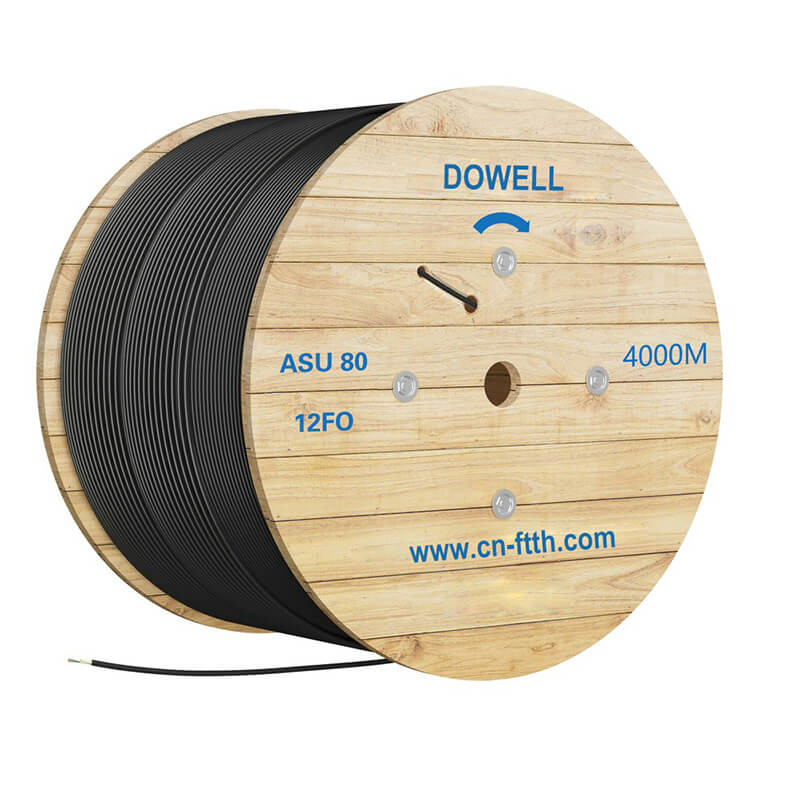

Our Package:

2 FRP Aerial 6 Core Fiber Optic Cable 8 Cores GYTS Fiber Cable 1

Production Flow:

2 FRP Aerial 6 Core Fiber Optic Cable 8 Cores GYTS Fiber Cable 2
