Detail Information

Fiber Count:	8 Fibers	Color:	Magenta
Material:	OFNP Plenum / LSZH / PVC	Length:	0.5m/1m/2m/3m/5m/10m...
Connector A:	MTP Female UPC	Connector B:	4pcs LC Duplex UPC
Insertion Loss:	≤0.3dB (MTP), ≤0.2dB (LC)	Return Loss:	≥20dB For UPC Multimode
Operating Wavelength:	850nm / 1310nm	Fiber Type:	OM4 Multimode 50/125μm
Connector Type:	MTP Female UPC To 4pcs LC Duplex UPC
Highlight:	MTP/MPO female LC breakout patch cord , OM4 multimode fiber patch cord , low loss MTP/MPO patch cord

Product Description

≤0.3dB MTP/MPO Female - LC OM4 Multimode Breakout Fiber Patch Cord

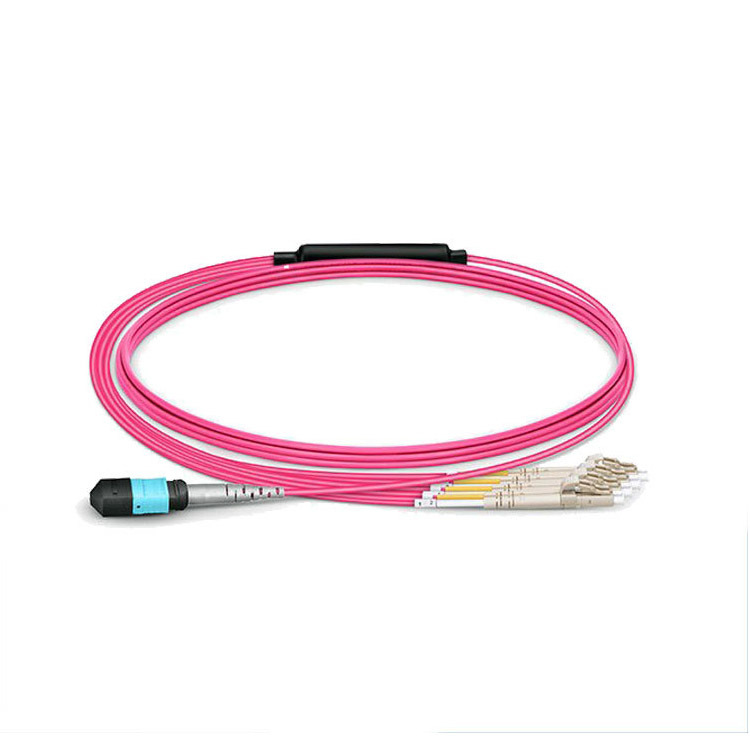

MTP female to 4 LC duplex 8-core OM4 breakout fiber patch cord is a high-density fan-out optical jumper specially engineered for modern data center high-speed cabling. Adopting standard OM4 multimode 50/125μm optical fiber with classic magenta outer sheath, one end is assembled with an MTP female connector, while the other end is evenly split into 4 groups of LC duplex connectors. The integrated strain relief boot at the branching point effectively guards internal fiber cores against excessive bending and pulling force. It greatly optimizes cabinet wiring layout, reduces messy cable accumulation, and is the ideal breakout solution for 40G/100G QSFP+ module splitting connection.

Specification

Insertion Loss	≤0.3dB (MTP), ≤0.2dB (LC)
Return Loss	≥20dB for UPC multimode
Operating Wavelength	850nm / 1310nm
Fiber Type	OM4 Multimode 50/125μm

Features

OM4 multimode supports 100G transmission up to 150m distance under 850nm wavelength
Repeatable plugging over 1000 times, stable performance in long-term continuous use
8 fibers integrated into one MTP connector, replace 8 single LC jumpers, reduce cable clutter in server rack

Applications

40G/100G QSFP+ to SFP+ module breakout connection, top-of-rack (TOR) switch cabling, server rack dense wiring
Optical transmission equipment, ODF fiber distribution box, passive optical splitter interconnection
Large-scale IP camera fiber aggregation, intelligent park backbone optical wiring

Frequently Asked Questions

Are you trading company or manufacturer?

70% of our products we manufactured and 30% do trading for customer service

How can you ensure the quality?

We are a one-stop manufacturer with complete facilities and over 15 years manufacturing experience to ensure product quality. We have passed ISO 9001 Quality Management System.

Can you provide samples? Is it free or extra?

Yes, after price confirmation, we could offer the free sample, but the shipping cost needs to be paid by your side.

How long is your delivery time?

In stock: within 7 days; Not in stock: 15-20 days, depending on your quantity.

Can you do OEM?

Yes, we can

What is your payment term?

Payment ≤4000USD, 100% in advance. Payment ≥4000USD, 30% TT in advance, balance before shipment.

How we can pay?

TT, Western Union, Paypal, Credit Card and LC

Transportation?

Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train

Tag:

Place of Origin:	China
Brand Name:	DOWELL

Minimum Order Quantity:	100 pieces
Delivery Time:	7-15 days
Payment Terms:	T/T
Supply Ability:	500pcs per 10 days
