96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application

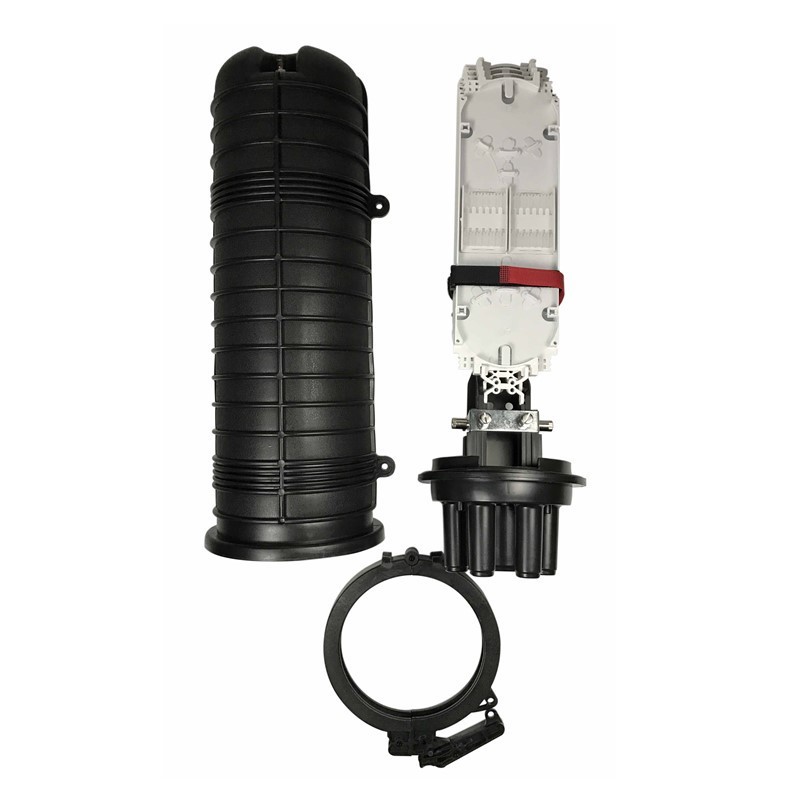

Large Image : 96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application

Product Details:

Place of Origin:	China
Brand Name:	DOWELL
Model Number:	FOSC-D4B-H

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Delivery Time:	7-15 days
Payment Terms:	T/T
Supply Ability:	1000pcs per 10 days

Contact Now

96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application

Description

Outside Dimension:	472mm×193mm	Weight (excluding Outside Box):	3000 G— 3600g
Number Of Inlet/out Ports:	4+1 Pieces In General	Diameter Of Fiber Cable:	Φ8mm~Φ20mm
Capacity OfFOSC:	Bunchy:24-96 (cores), Ribbon: Up To384 (cores)	Fiber Optic Splice Tray (FOST):	4 Trays (bunch Y Ribbon)
Highlight:	96FO Capacity Fiber Optic Splice Closure , 4+1 Ports Fiber Optic Splice Enclosure , Outdoor Application Fiber Joint Closure

24-96FO Fiber Optic Vertical Splice Enclosure IP65 Waterproof Dustproof

96FO Fiber Optic Vertical Splice Enclosure IP65 Waterproof Dustproof

96 Core Optic Splice Joint Closure Dome-Vertical Types (1 in 4 out) is designed for distributing, splicing, and storing outdoor optical cables entering and exiting from the closure ends. Available in both direct connection and splitting connection configurations, this enclosure is suitable for overhead, pipeline manwell, and embedded installations. Compared to terminal boxes, this closure features enhanced sealing requirements including sealing rings and air valves.

Specifications

Splice tray count	4pcs
Splice capacity for each tray	24FO
Total Splice capacity	96FO
Number of inlet/out ports	4+1 pieces (standard)
Weight (excluding outside box)	3000g - 3600g

Applications

Ideal for pole and wall mounting applications:

Strand overhead installation:

Installation Guide

Open the closure
Determine length of fiber cable to be fixed and stripped inside FOSC
Strip off protective coats of fiber cable and fiber
Separate fiber cores and prepare work prior to fixing fiber cable
Fix reinforced core, and pyrocondense, fix and seal fiber cable
Splice fibers
Install heat shrinkable protective sleeve and house fibers
Check up comprehensively
Assemble FOSC housing and fix FOSC

Tag:

Contact Person: Henry

Tel: +86-13857874858

Fax: 86-574-27877477
