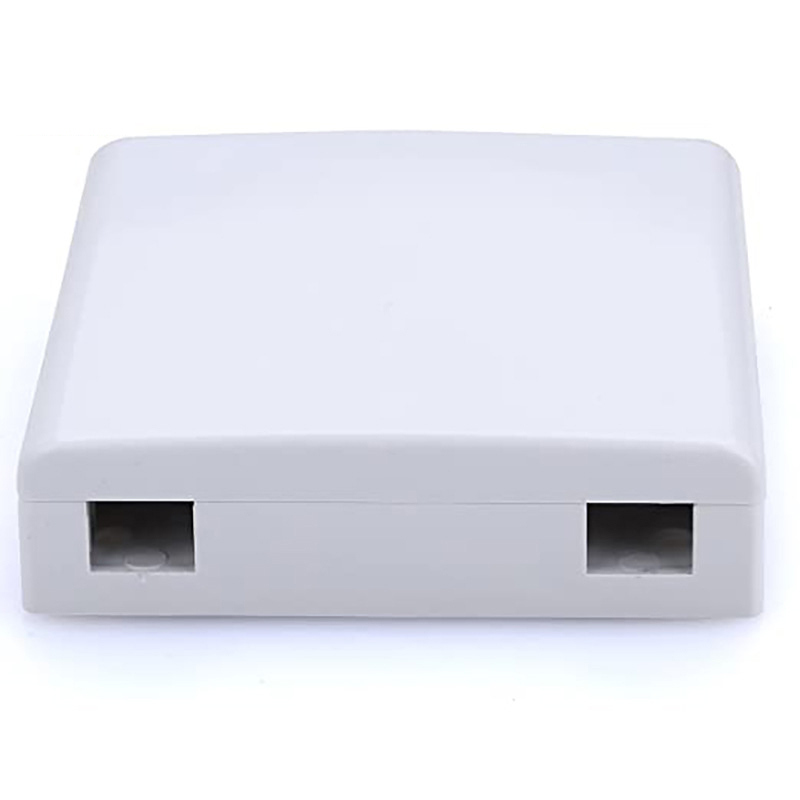

86 x 86 x 25 mm Fiber Optic Termination Wall Socket with 4 Cores and Fire Resistance UL94-0

86 x 86 x 25 mm Fiber Optic Termination Wall Socket with 4 Cores and Fire Resistance UL94-0
86 x 86 x 25 mm Fiber Optic Termination Wall Socket with 4 Cores and Fire Resistance UL94-0 86 x 86 x 25 mm Fiber Optic Termination Wall Socket with 4 Cores and Fire Resistance UL94-0 86 x 86 x 25 mm Fiber Optic Termination Wall Socket with 4 Cores and Fire Resistance UL94-0

Large Image :  86 x 86 x 25 mm Fiber Optic Termination Wall Socket with 4 Cores and Fire Resistance UL94-0

Product Details:
Place of Origin: China
Brand Name: DOWELL
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Delivery Time: 7-15 days
Payment Terms: T/T
Supply Ability: 1000pcs per 7 days
Contact Now

86 x 86 x 25 mm Fiber Optic Termination Wall Socket with 4 Cores and Fire Resistance UL94-0

Description
Material: PC/ABS Operating Temperature: -25℃∽+55℃
Relative Humidity: Max 95% At 20 ℃ Size: 86 X 86 X 25 Mm
Max Capacity: 4 Cores Weight: 40g
Highlight:

86 x 86 x 25 mm Fiber Optic Wall Socket

,

4 cores Fiber Termination Socket

,

Fire resistance UL94-0 Fiber Optic Termination Wall Socket

86*86 Fiber Optic Termination Wall Socket PP/ABS Material

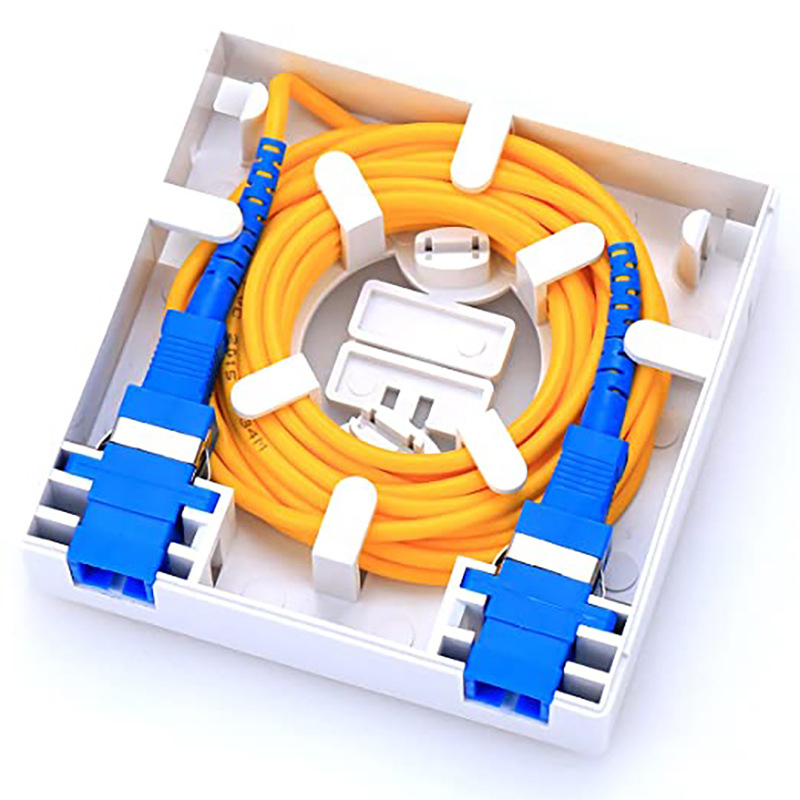

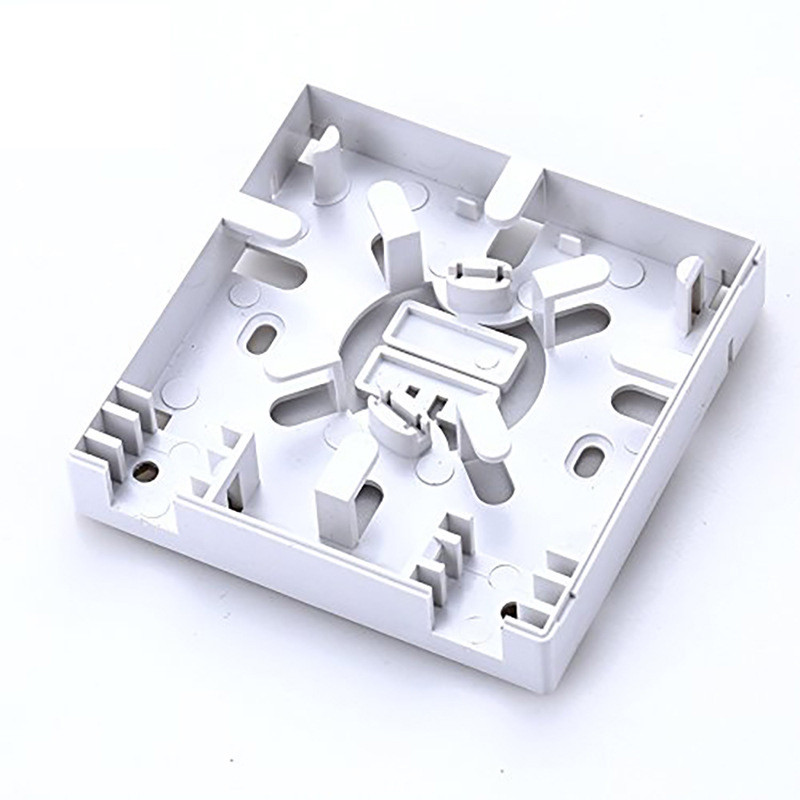

This fiber optic termination wall socket is designed for splicing and terminating connections between indoor fiber optic cables and pigtails. Featuring a compact, lightweight design for easy installation, it includes splice trays for convenient operation and a reliable grounding device with fittings for secure fiber-optic cable fixation.
Key Features:
  • Compact 86*86*25 mm dimensions
  • Lightweight at just 40 grams
  • Integrated splice trays for easy operation
  • Reliable grounding device
  • Secure cable fixation fittings
Specifications:
Material PC (Fire resistance, UL94-0)
Operating Temperature -25℃ to +55℃
Relative Humidity Max 95% at 20℃
Size 86 * 86 * 25 mm
Max Capacity 4 cores
Weight 40 g
Packaging Information:
  • 400 pieces per carton
  • Carton dimensions: 55*45*39 cm
  • Carton weight: 24 kg

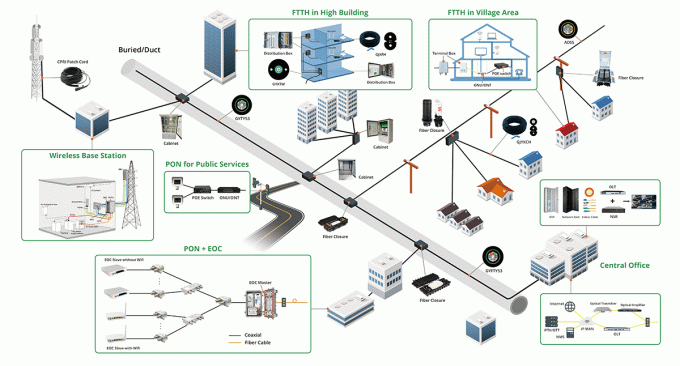

Applications:
  • FTTx, FTTH, FTTB, FTTO networks
  • Telecom and CATV networks
  • Indoor fiber optic cable distribution
  • Provides fusion and storage for optical cables
Installation Methods:
  • Floor standing
  • Wall mounted
  • Pole mounted
  • Rack mounted
  • Corridor mounted
  • Cabinet mounted
