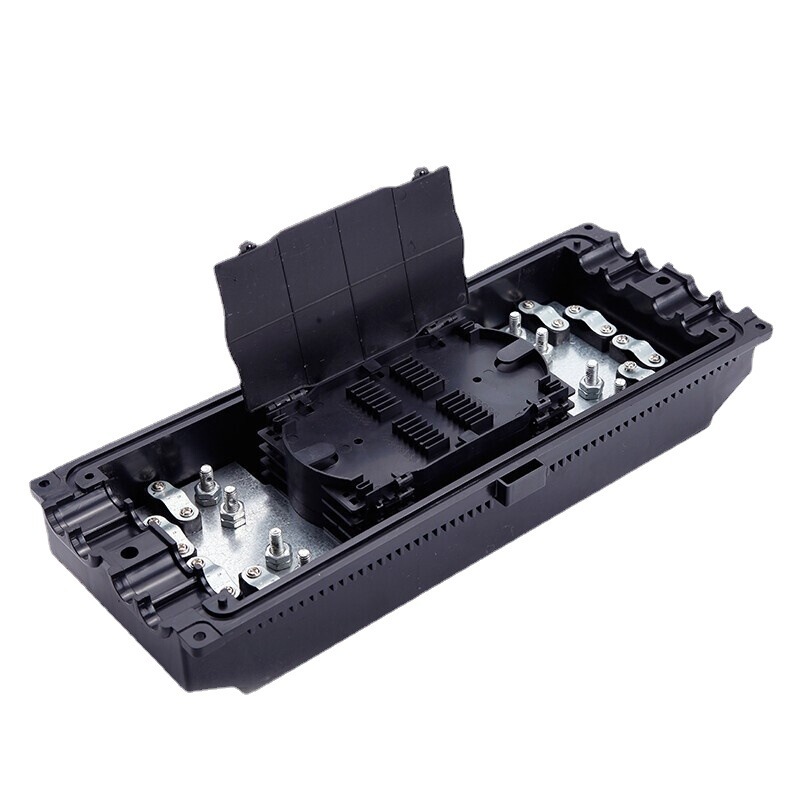

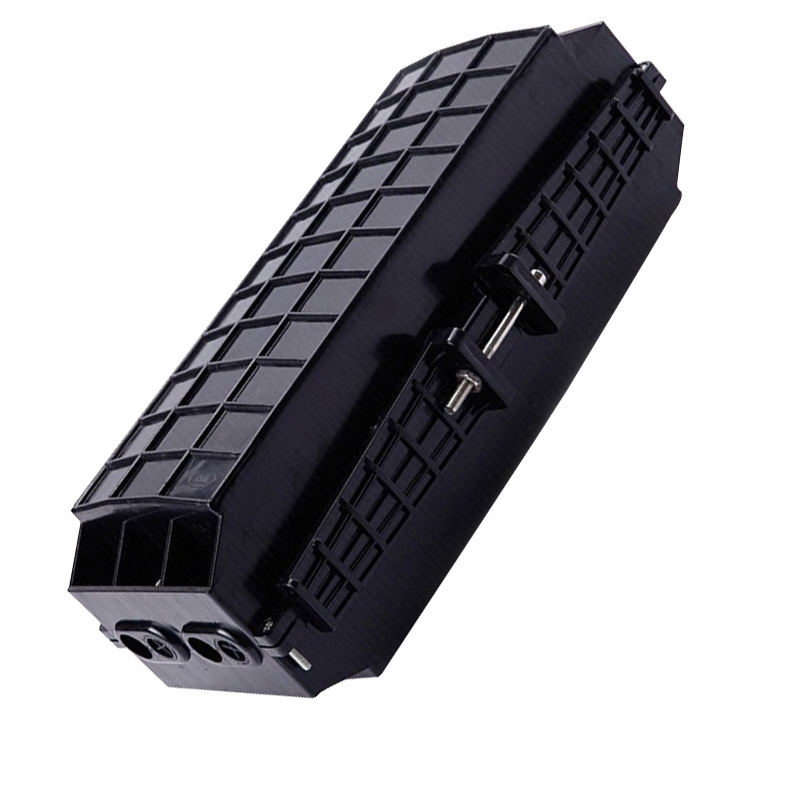

PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions

Large Image : PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions

Product Details:

Place of Origin:	China
Brand Name:	DOWELL

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Delivery Time:	7-15 days
Payment Terms:	T/T
Supply Ability:	1000pcs per 10 days

Contact Now

PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions

Description

Material:	PC PC/ABS	Sealing Material:	Thermoplastic Rubber
Assembling Method:	Aerial, Direct Buried, Pipelined, Wall Mounting, Manhole	Dimension:	420(L)×150(W)×180(H)mm
Net Weight:	2kg	Temperature:	-20℃~45℃
Highlight:	48 Cores Fiber Optic Enclosure , 4 In 4 Out Fiber Splice Closure , 420x150x180mm Fiber Optic Enclosure

PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type

A FOSC (Fiber Optic Splice Closure) is a protective, re-enterable housing used in fiber optic networks to provide a safe environment for splicing, branching, storing, and protecting fiber optic cables. Think of it as a rugged, weatherproof junction box for delicate fiber connections. The term "FOSC" is actually a brand name from CommScope (formerly from TE Connectivity / Tyco Electronics), but it has become a genericized term—much like "Kleenex" for tissues—used to describe many similar fiber splice closures from various manufacturers.

Specifications

Body Material	PC PC/ABS
Sealing Material	Thermoplastic rubber
Assembling method	Aerial, direct buried, pipelined, wall mounting, manhole
Dimension	420(L)150(W)180(H)mm
Net Weight	2KG
Temperature	-20℃~45℃

Size

Features

Protection: Shields fragile fiber splices and excess fiber (slack) from environmental hazards like:
- Moisture and Water
- Dust and Dirt
- Extreme Temperatures
- Mechanical Impact and Crushing
- Rodents and other pests
Splicing Point: It is the primary location where two fiber optic cables are joined together (spliced), either permanently (fusion splice) or with connectors (mechanical splice).

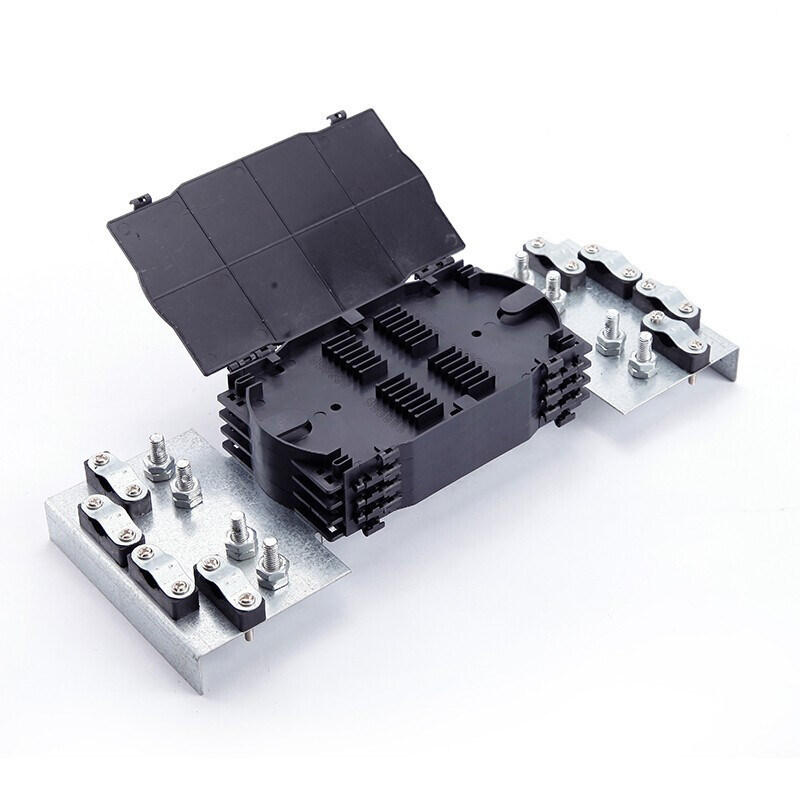

Cable Management: Provides an organized way to store and manage splice trays and the excess fiber loop, which is critical for future repairs or re-routing.
Access and Re-entry: Unlike a simple enclosure, FOSCs are designed to be easily opened and re-sealed, allowing technicians to add, remove, or repair splices throughout the network's lifecycle.

Accessories
