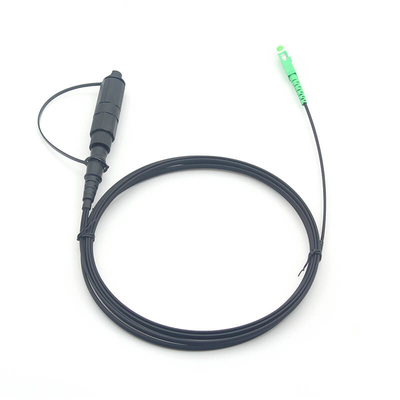

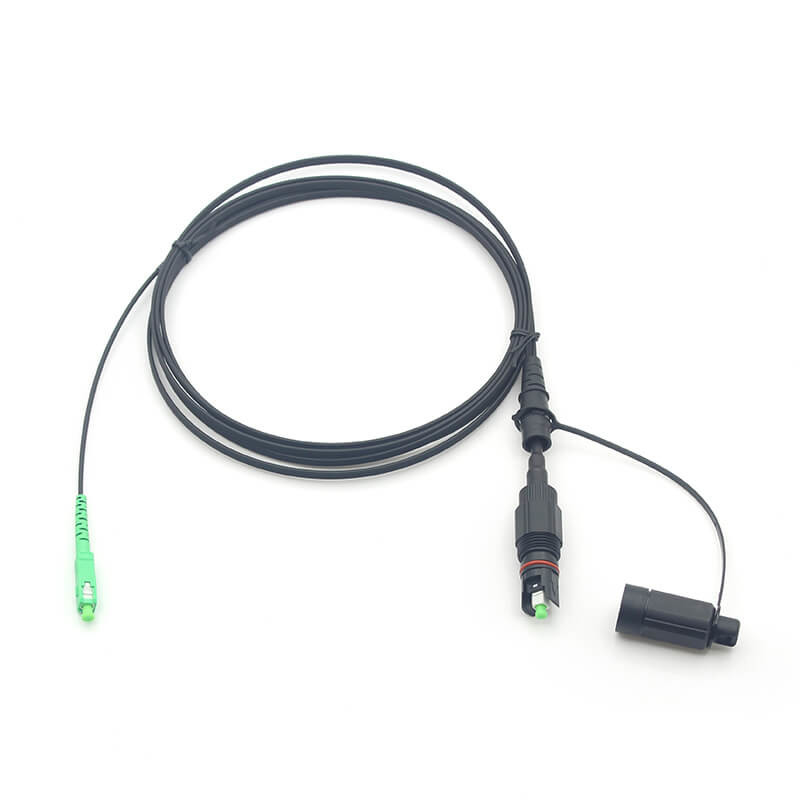

FTTA FTTX Outdoor Optitap Fast connectors Drop Cable
Optitap drop cables are ruggedly designed and hardened to protect from extreme outside plant temperatures, moisture and chemicals. Backward compatible with older generations of hardened and non-hardened connector systems, MINI SuperTap drop cable integrates seamlessly into existing fiber optic networks.
SC/APC Fast connector can be used with 2*3.0mm, 2*5.0mm flat drop cable, 3.0mm cable or 5.0mm round drop cable.It is an excellent solution and do not need terminated the connector in laboratory, it can be filed assembled very easily when the connector defected.
Specification:
| Connector |
Optitap SC/APC |
Polish |
APC-APC |
| Fiber Mode |
9/125μm, G657A2 |
Jacket Color |
Black |
| Cable OD |
2x3;2x5 3 ;5mm |
Wavelength |
SM:1310/1550nm |
| Cable Structure |
Simplex |
Jacket Material |
LSZH/TPU |
| Insertion loss |
≤0.3dB(IEC Grade C1) |
Return loss |
SM APC ≥ 60dB(min) |
End-Face Quality(Single-mode):
| Zone |
Range(mm) |
Scratches |
Defects |
Reference |
| A:Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
| B:Cladding |
25 to 115 |
None |
None |
| C:Adhesive |
115 to 135 |
None |
None |
| D:Contact |
135 to 250 |
None |
None |
| E:Rest of ferrule |
None |
None |
Features:
1.1 IP67-Rated Waterproof and Dustproof:
Offers IP67-rated protection, making it impervious to water, dust, and corrosion, thus ensuring reliable connectivity in challenging outdoor environments.
Built to withstand exposure to moisture, dust, and other environmental contaminants.
1.2 Versatile Cable Compatibility:
Compatible with a variety of cable sizes to meet different application needs:
SC Connector: Supports 3.0mm, 2x3mm, 2x5mm, 4.5x8mm flat cable without copper wire, 9.8×4.5mm with copper wire, and 5.0mm round cable.
LC DX/MPO Connector: Compatible with 3.0mm, 4.5x8mm flat cable, and 5.0mm round cable.
Adaptable to various installation needs, providing flexibility across multiple fiber optic configurations.
Application:
2.1Widely used in FTTA systems, outdoor base stations, and other environments requiring waterproof and dustproof protection, the OptiTap SC/APC Waterproof Patch Cord is essential for reliable, high-performance fiber optic networks. It provides a robust, secure solution for extending fiber connectivity in demanding, weather-exposed areas.
