SC/APC Hot-melt quickly assembly Optic Fiber connector

Large Image : SC/APC Hot-melt quickly assembly Optic Fiber connector

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-F-SAF

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 PCS Per 7 Days

Contact Now

SC/APC Hot-melt quickly assembly Optic Fiber connector

Description

Mode:	SM SC/UPC	Insertion Loss:	≤0.3dB (1310nm & 1550nm)
Return Loss:	≥55dB	Fiber Diameter:	125μm ( 652 & 657 )
Operating Temperature:	-20 ~ +75℃	Storage Temperature:	－40 ℃～＋85 ℃
Highlight:	sc lc fiber connector , sc waterproof fiber optic connector , apc lc fiber connector

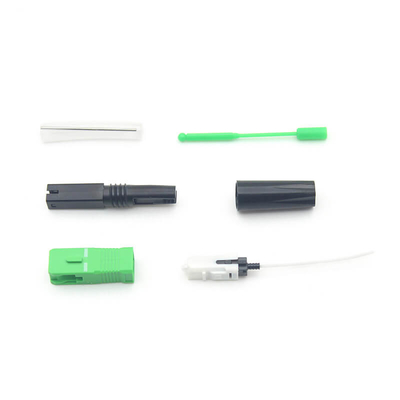

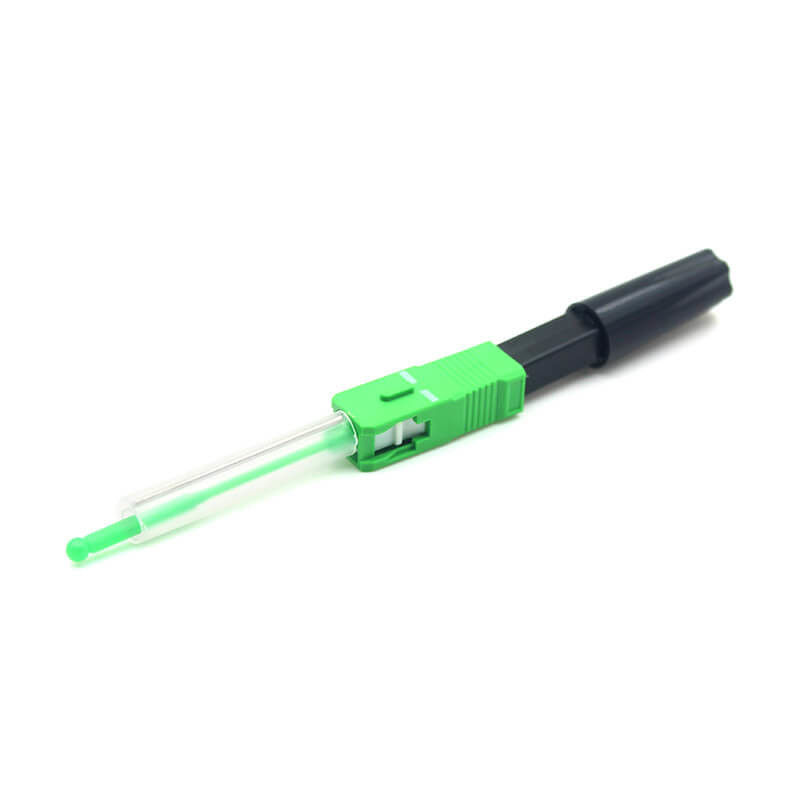

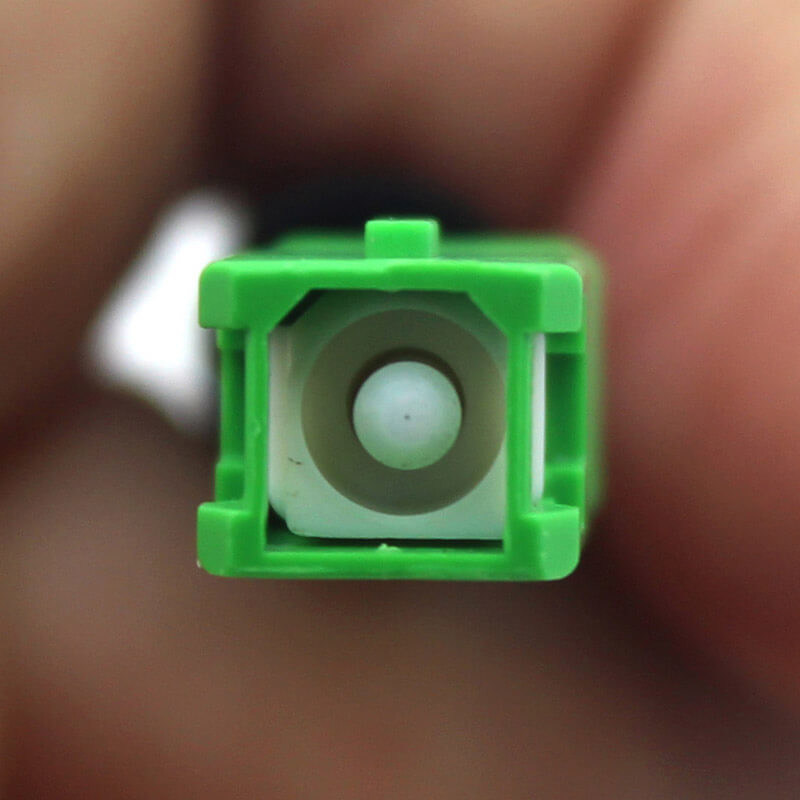

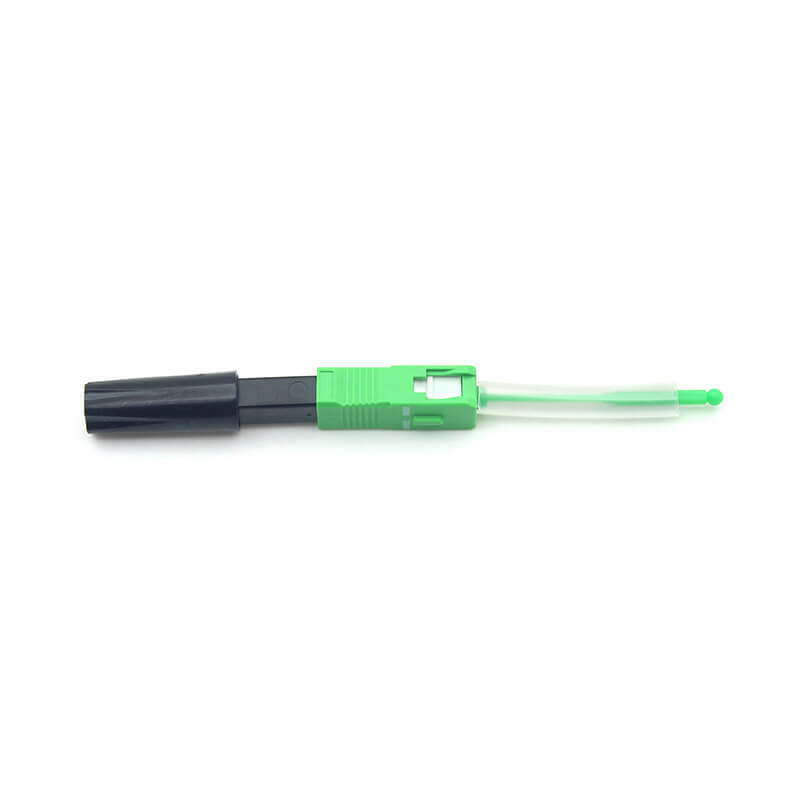

SC/APC Fiber Optic Fusion type Quickly Assembly Connector

Hot-melt quickly assembly connector is directly with a grinding of the ferrule connector directly with the butterfly cable 3.0mm,2.0mm,0.9mm using a fusion splicer welding,the welding point inside the connector tail, the weld is no need for additional protection.It can improve the optical performance of the connector.

Specification:

Fiber Diameter	125μm ( 652 & 657 )	Coating Diameter	250μm
Mode	SM SC/UPC SC/APC	Operation Time	about 15s (exclude fiber presetting)
Insertion Loss	≤0.3dB (1310nm & 1550nm)	Return Loss	≥55dB
Success Rate	>98%	Reusable Times	>10 times

Application:

1. FTTx,Data Room Transformation.

SC/APC Hot-melt quickly assembly Optic Fiber connector 0
