Name: SC UPC Fusion type Fiber Optic Quickly Assembly Connector
Brand: DOWELL INDUSTRY GROUP LIMITED
SKU: DW-F-SUF
Price: 4,999.45 USD
Availability: InStock

Detail Information

Fiber Diameter:	125μm ( 652 & 657 )	Coating Diameter:	250μm
Mode:	SM SC/UPC	Insertion Loss:	≤ 0.3 DB
Operating Temperature:	-20 ~ +75℃	Storage Temperature:	－40 ～＋85 ℃
Highlight:	sc lc fiber connector , sc waterproof fiber optic connector , upc lc fiber connector

Product Description

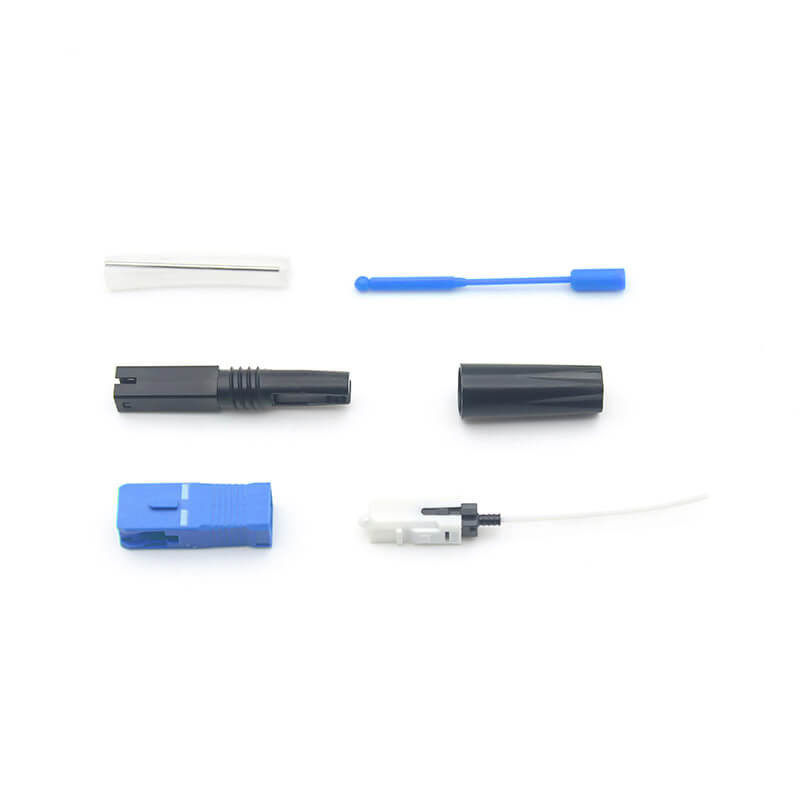

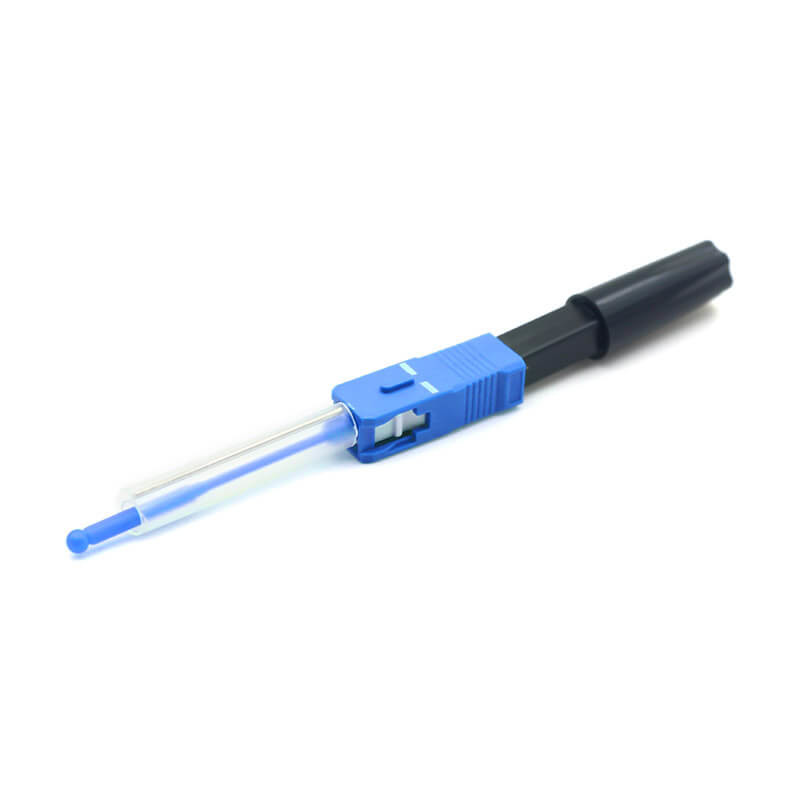

SC UPC Fusion type Fiber Optic Quickly Assembly Connector

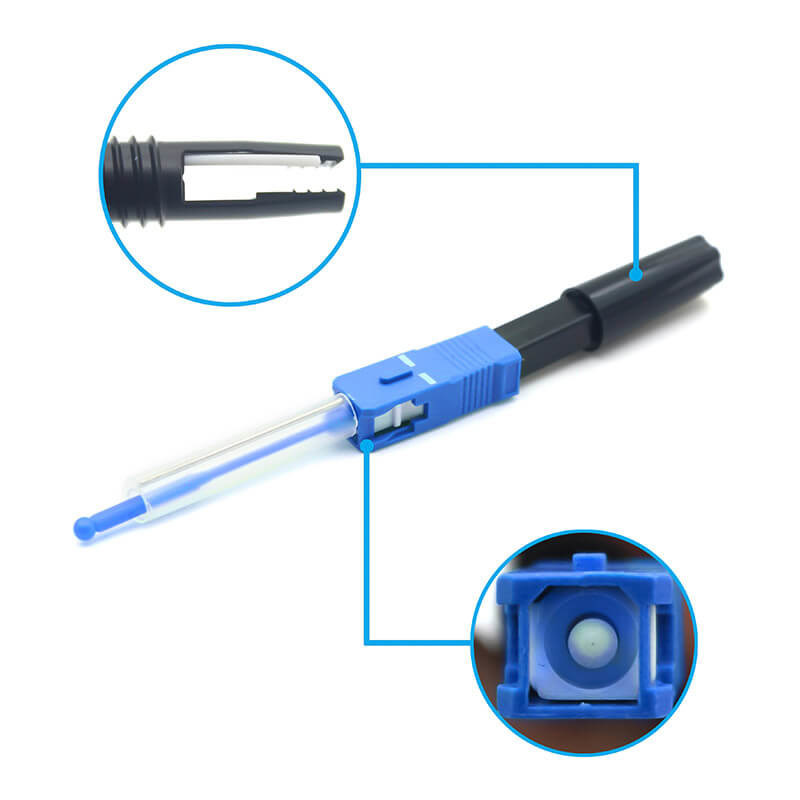

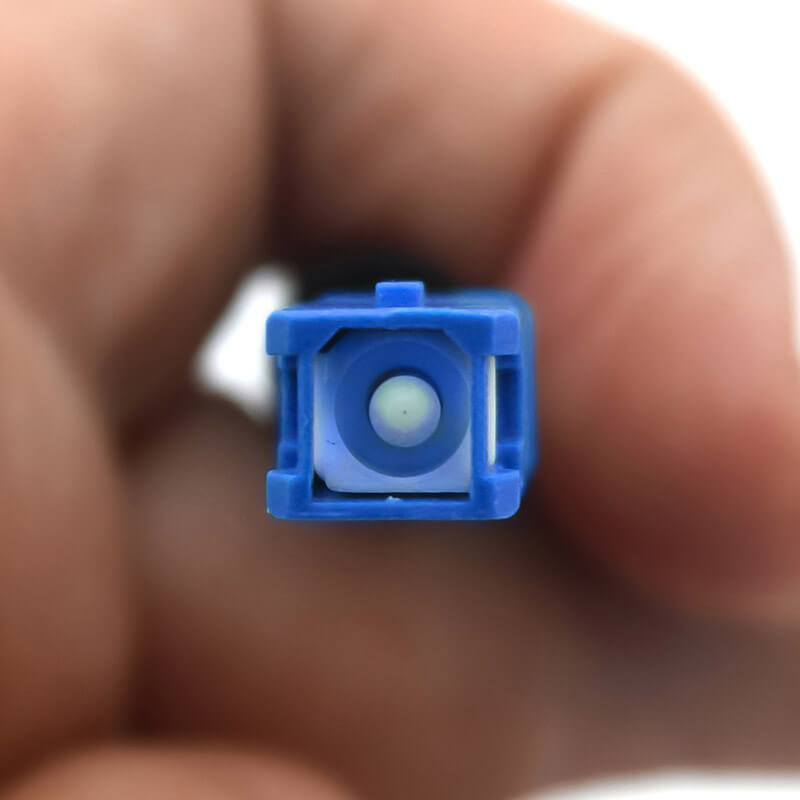

The Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Specification:

Fiber Diameter	125μm ( 652 & 657 )	Coating Diameter	250μm
Mode	SM SC/UPC	Operation Time	about 15s (exclude fiber presetting)
Insertion Loss	≤0.3dB (1310nm & 1550nm)	Return Loss	≥55dB
Success Rate	>98%	Reusable Times	>10 times

Application:

1. FTTx,Data Room Transformation.

SC UPC Fusion type Fiber Optic Quickly Assembly Connector 0

Package:

More Related Products:

Tag:

Place of Origin:	China,zhejiang
Brand Name:	DOWELL
Model Number:	DW-F-SUF

Minimum Order Quantity:	1000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 PCS Per 7 Days
