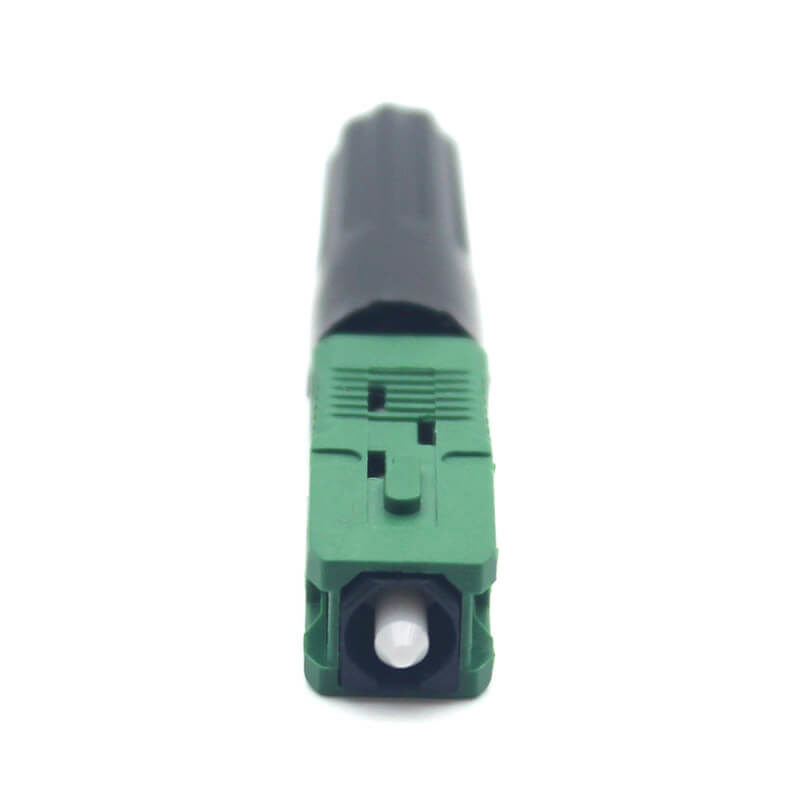

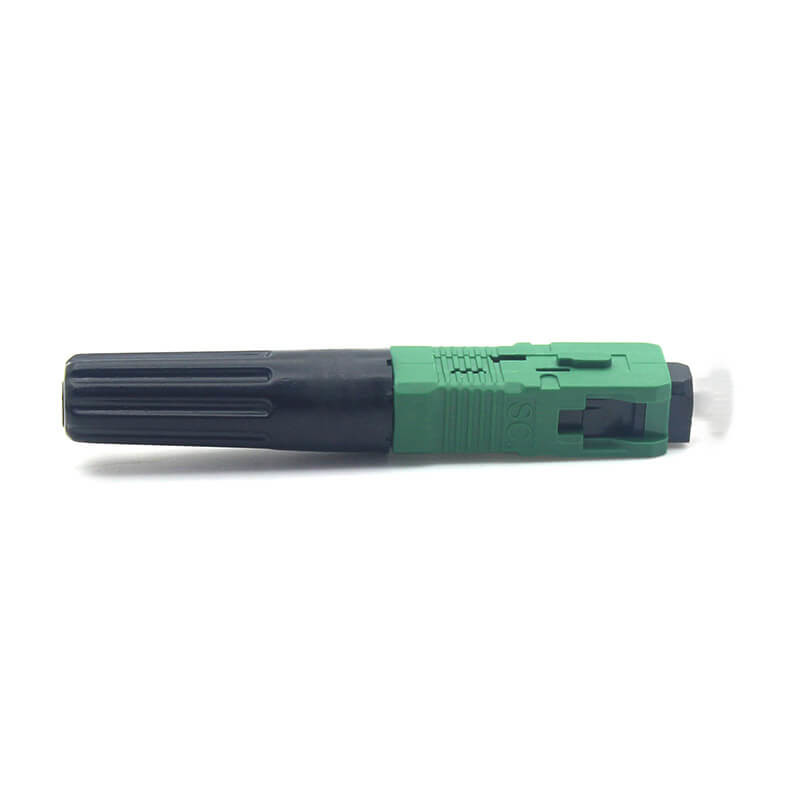

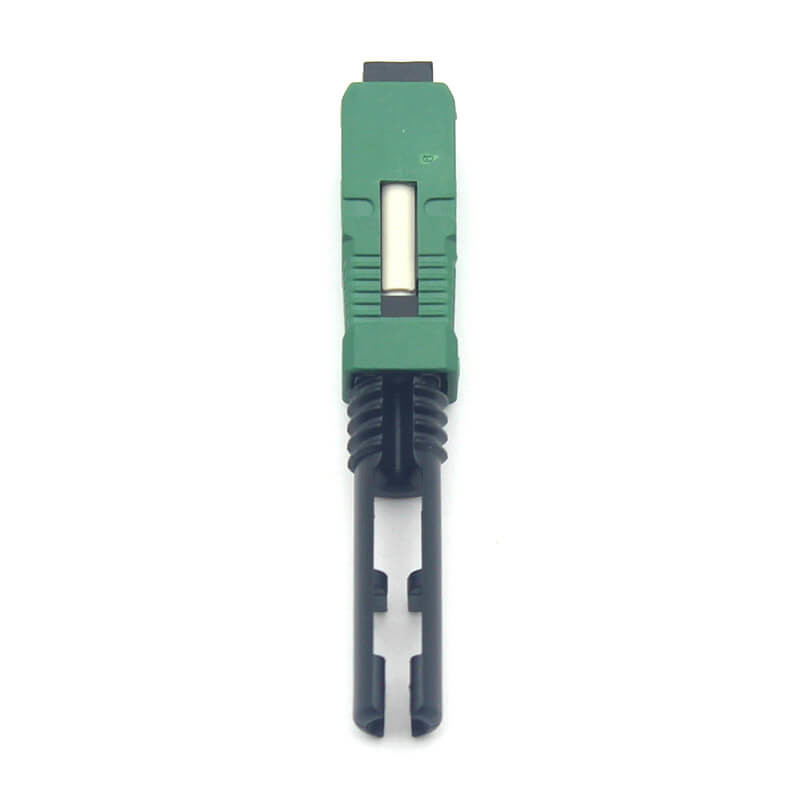

SC Type Fiber Field Assembly Optical Connector Apply For FTTH Cable 2×3.0mm

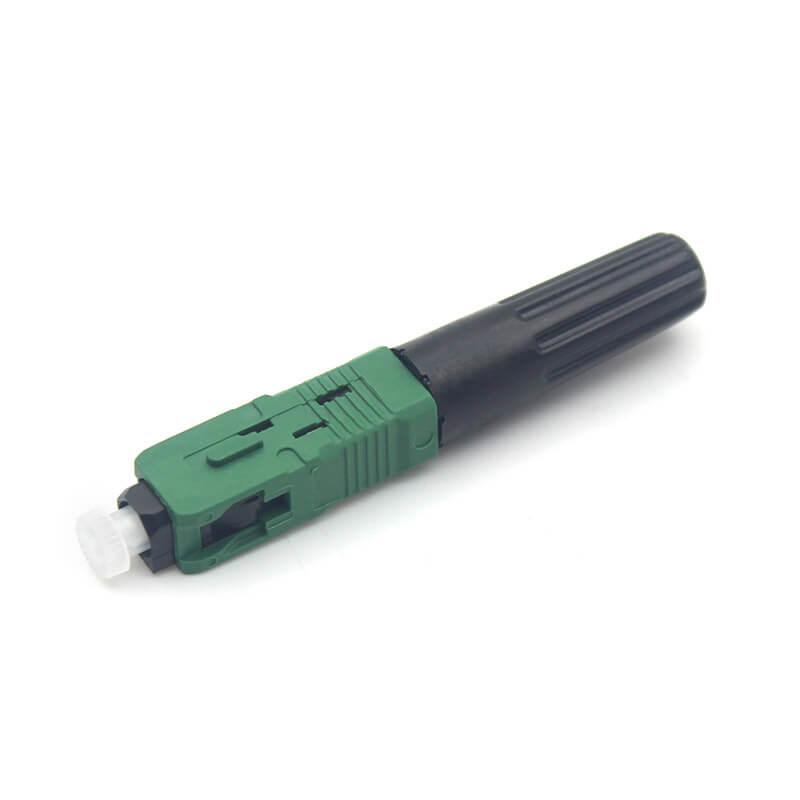

Large Image : SC Type Fiber Field Assembly Optical Connector Apply For FTTH Cable 2×3.0mm

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-8802

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 PCS Per 7 Days

Contact Now

SC Type Fiber Field Assembly Optical Connector Apply For FTTH Cable 2×3.0mm

Description

Connector Type:

SC/APC & SC/UPC

Apply For:

FTTH Cable 2×3mm Φ3.0，Φ2.0，Φ0.9

Length:

≤58mm

Fiber Diameter:

125μm ( 652 & 657 )

Highlight:

sc lc fiber connector

sc waterproof fiber optic connector

apc lc fiber connector

SC Type Fiber Field Assembly Optical Connector

This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconiu ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 2.0mm x 3.0mm jacket cable.

Specification:

Connector Type	SC / APC & SC / UPC
Apply for	FTTH Cable 2×3mm Φ3.0,Φ2.0,Φ0.9
Length	≤58mm

Application:

1.1 All fiber interconnection;

1.2 Telecom Distribution and Local Area Networks; Telecom Distribution and Local Area Networks;

1.3 FTTH and FTTX;

1.4 Passive optical networks [ATM, WDM, Ethernet];

1.5 Broadband, Cable TV(CATV).

Installation Steps:
2.1 Strip the fiber coating.
2.2 Cleave the fiber to the correct length.
2.3 Insert the fiber into the fast connector until it seats.
2.4 Crimp or lock the connector in place.
2.5 Test for insertion loss and continuity.
