FTTH LC UPC LC APC Quick Connect Fiber Optic Connectors

FTTH LC UPC LC APC Quick Connect Fiber Optic Connectors
FTTH LC UPC LC APC Quick Connect Fiber Optic Connectors FTTH LC UPC LC APC Quick Connect Fiber Optic Connectors FTTH LC UPC LC APC Quick Connect Fiber Optic Connectors FTTH LC UPC LC APC Quick Connect Fiber Optic Connectors

Large Image :  FTTH LC UPC LC APC Quick Connect Fiber Optic Connectors

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-FLU
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

FTTH LC UPC LC APC Quick Connect Fiber Optic Connectors

Description
Mode: SM Fiber Diameter: 125μm ( 652 & 657 )
Coating Diameter: 900μm Cable Scope: Ф3.0 Mm & Ф2.0 Mm Cable
Highlight:

ftth lc fiber connector

,

ftth waterproof fiber optic connector

,

lc waterproof fiber optic connector

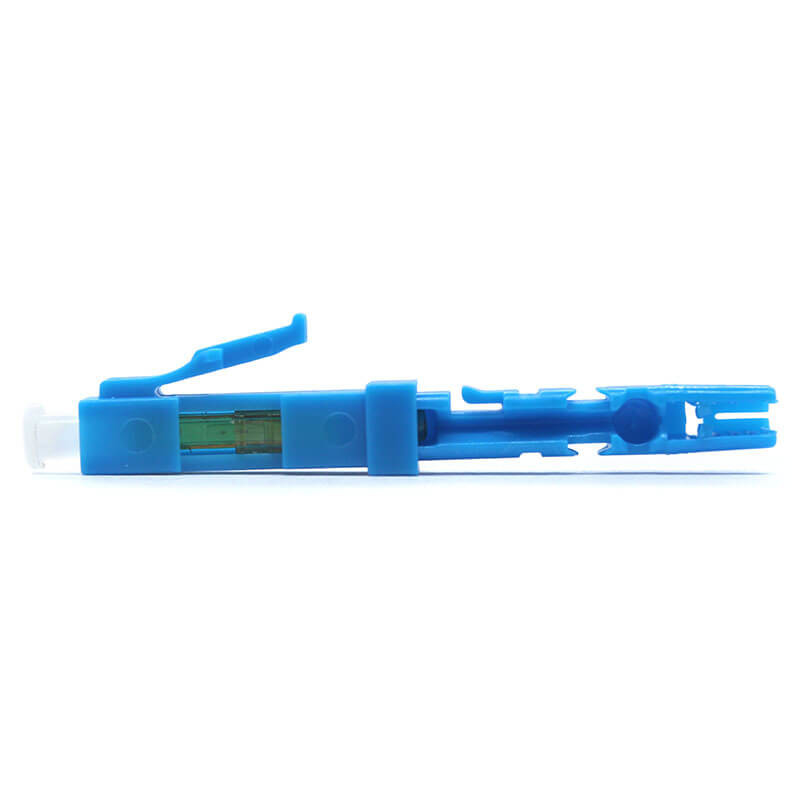

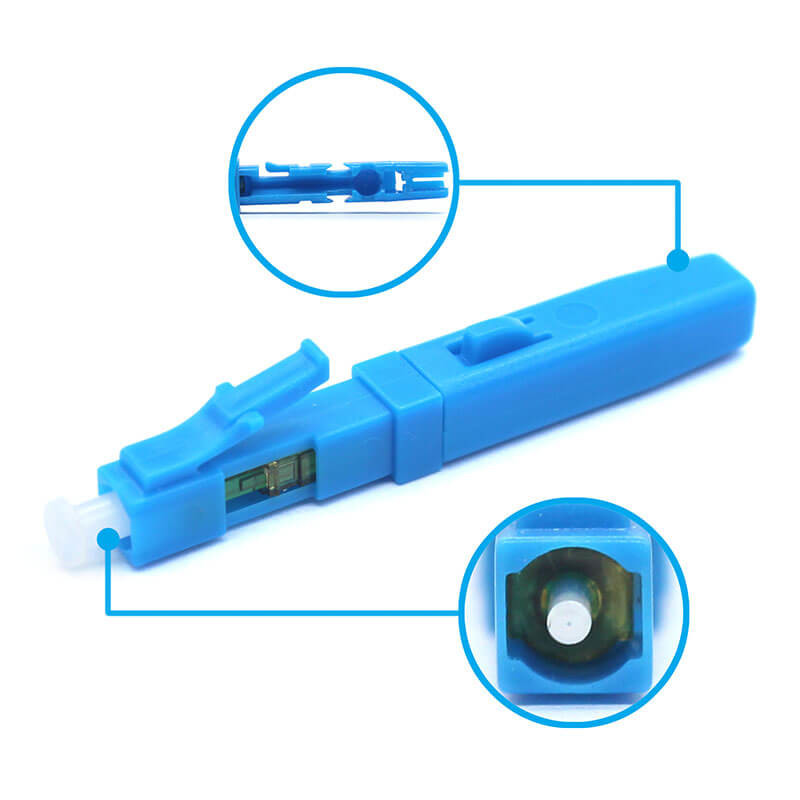

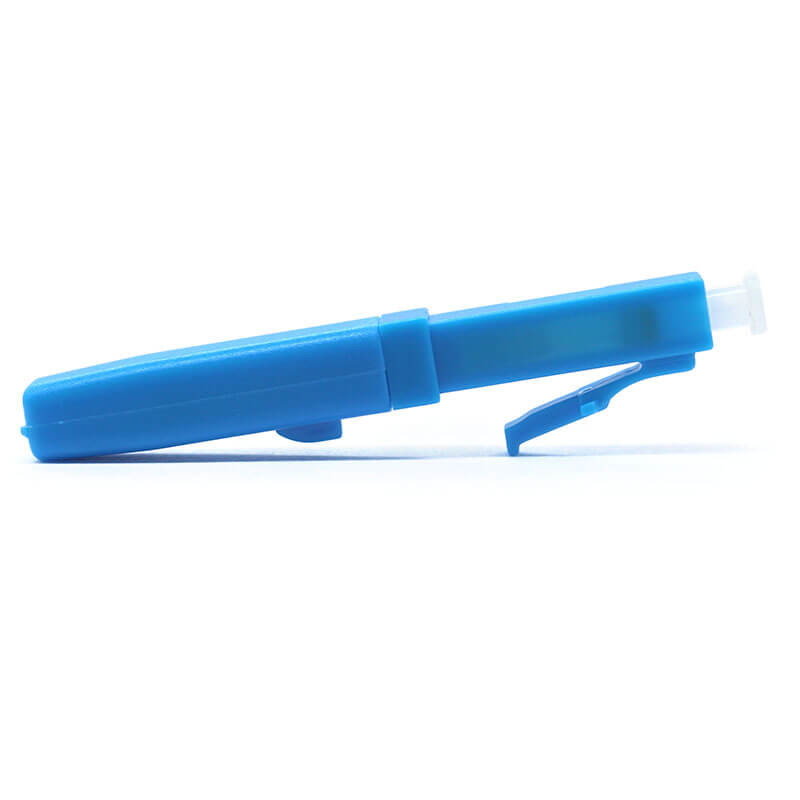

FTTH LC UPC LC APC Quickly Assembly Connector

The Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Specification:

Cable Scope Ф3.0 mm & Ф2.0 mm Cable
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 900μm
Mode SM
Operation Time about 4min(exclude fiber presetting)
Insertion Loss ≤ 0.3 dB(1310nm & 1550nm), Max ≤ 0.5 dB
Return Loss ≥50dB for UPC, ≥55dB for APC

Application:

1. FTTx,Data Room Transformation.

FTTH LC UPC LC APC Quick Connect Fiber Optic Connectors 0
