Detail Information

Color:

Black

Size:

19/25/51mmx9m

Ultimate Elongation:

1000%

Tensile Strength:

8 Lbs/in (1.4 KN/m)

Highlight:

black electrical insulating tape

black electrical insulating resin

Product Description

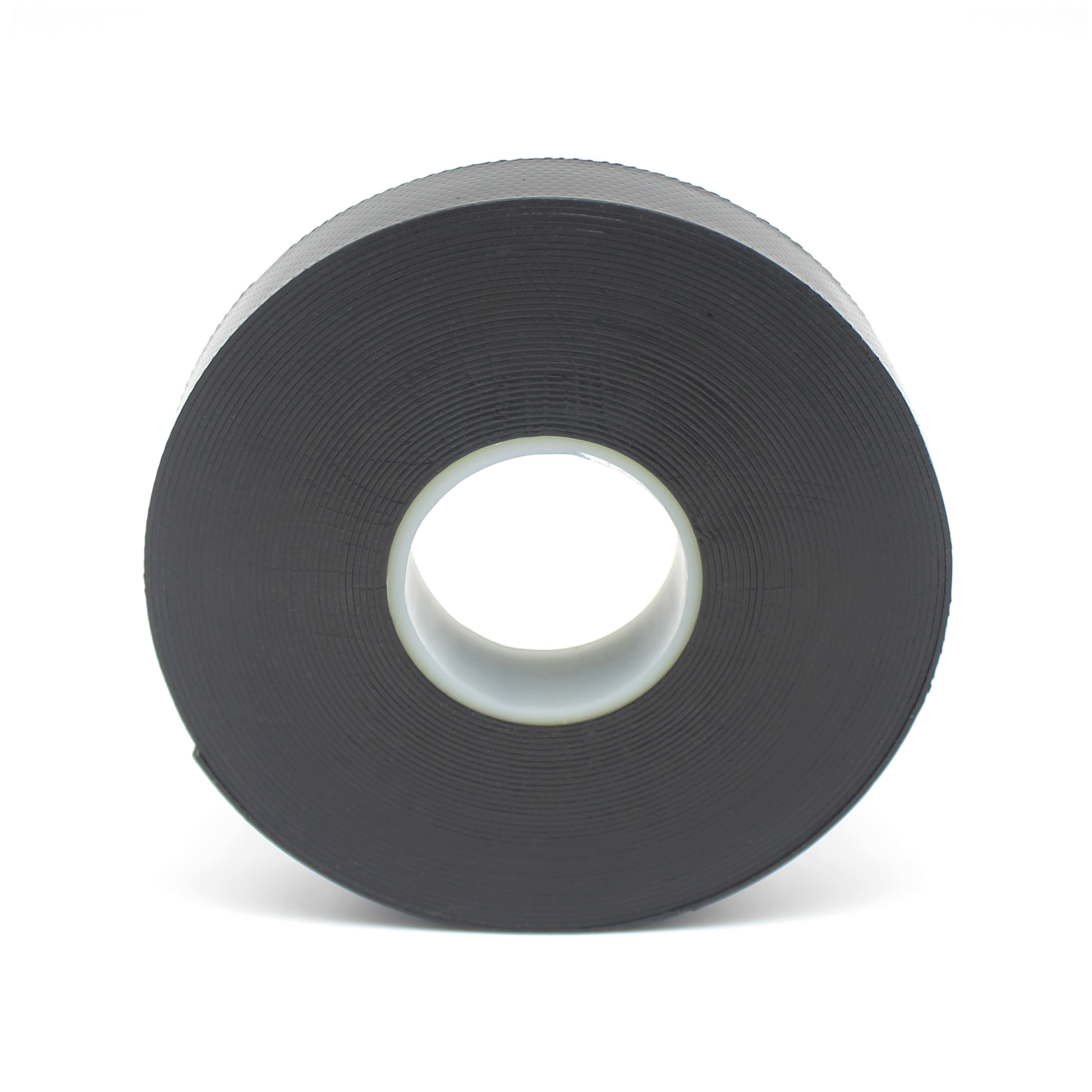

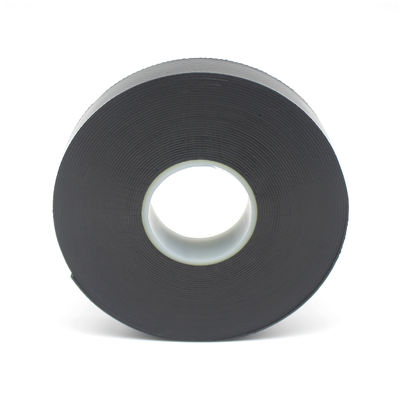

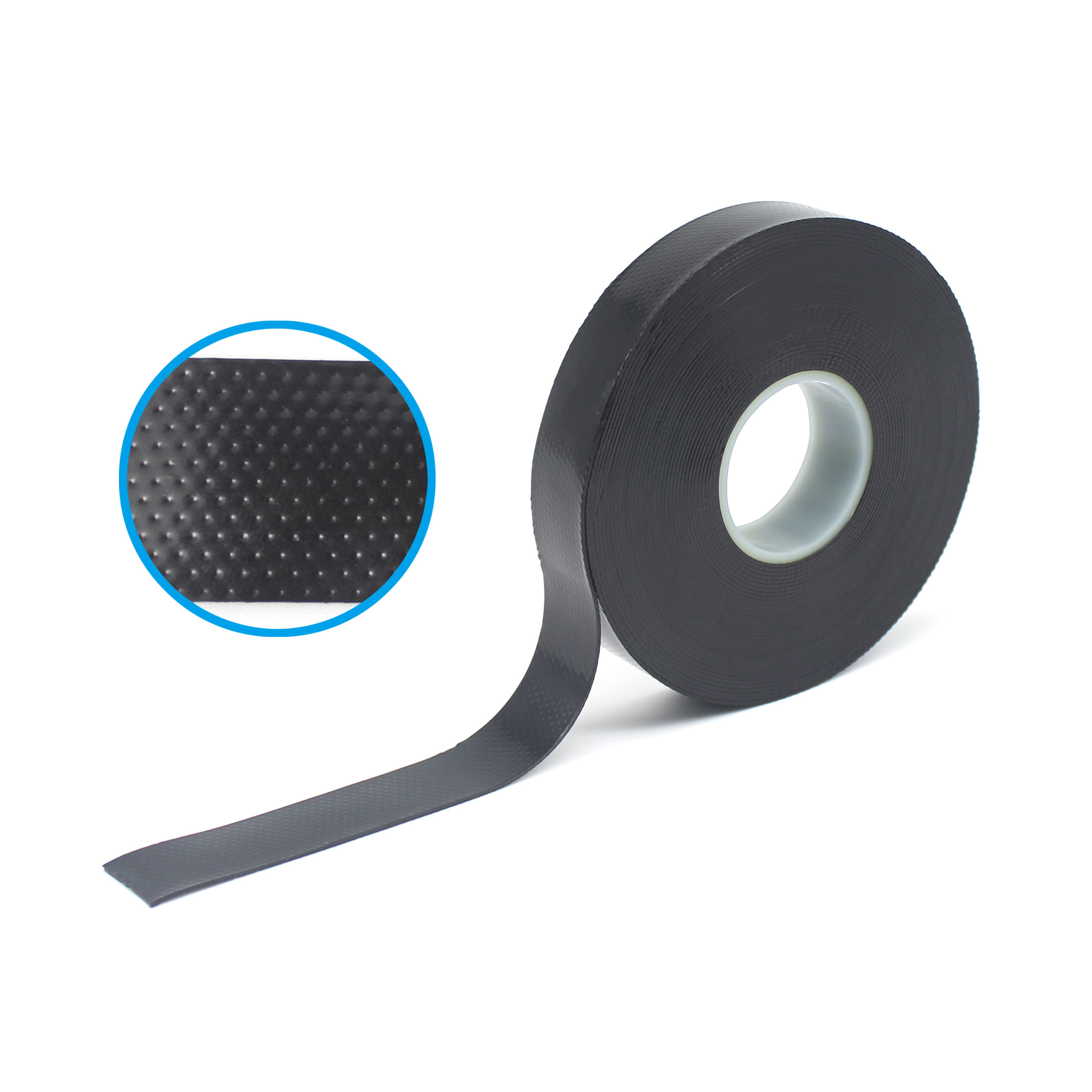

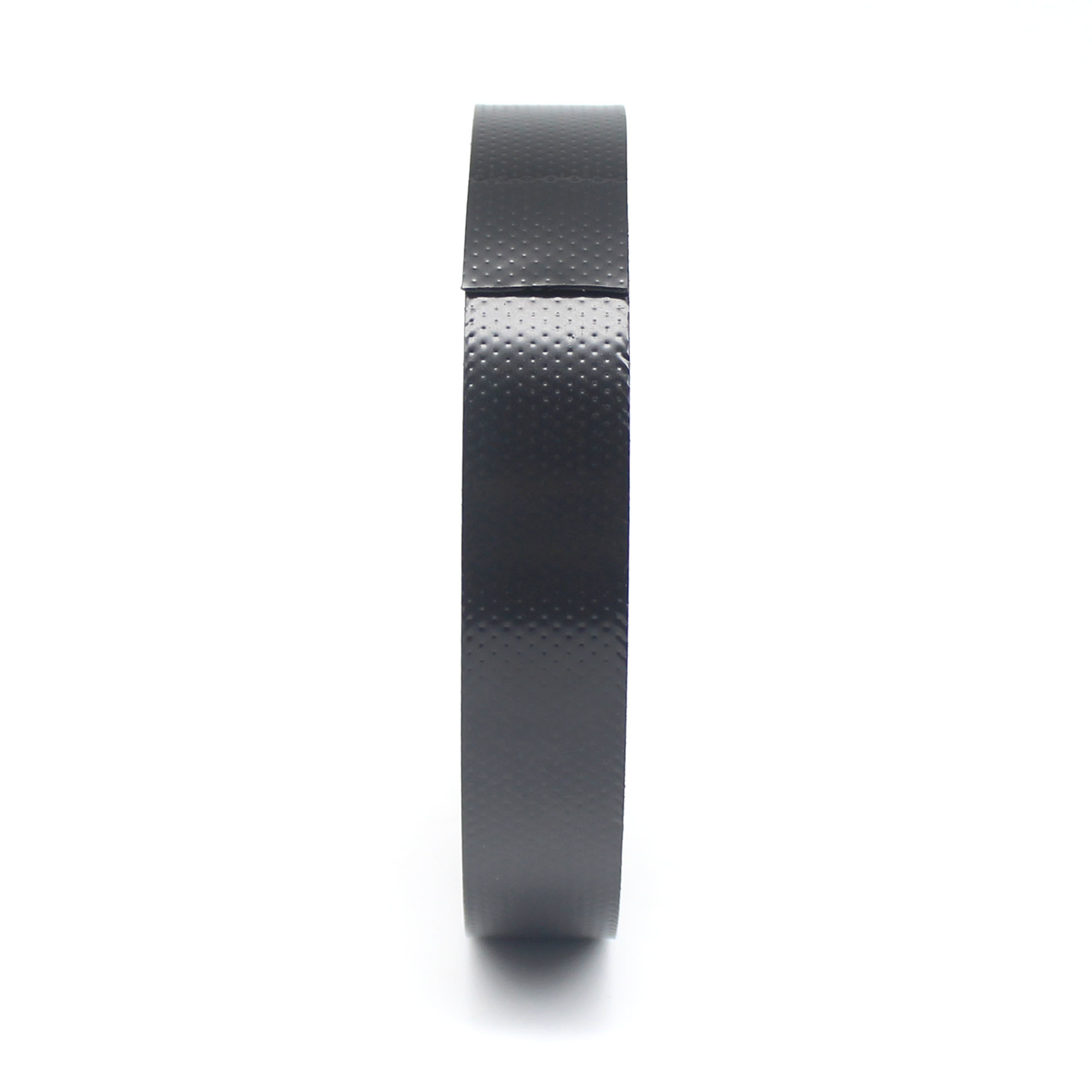

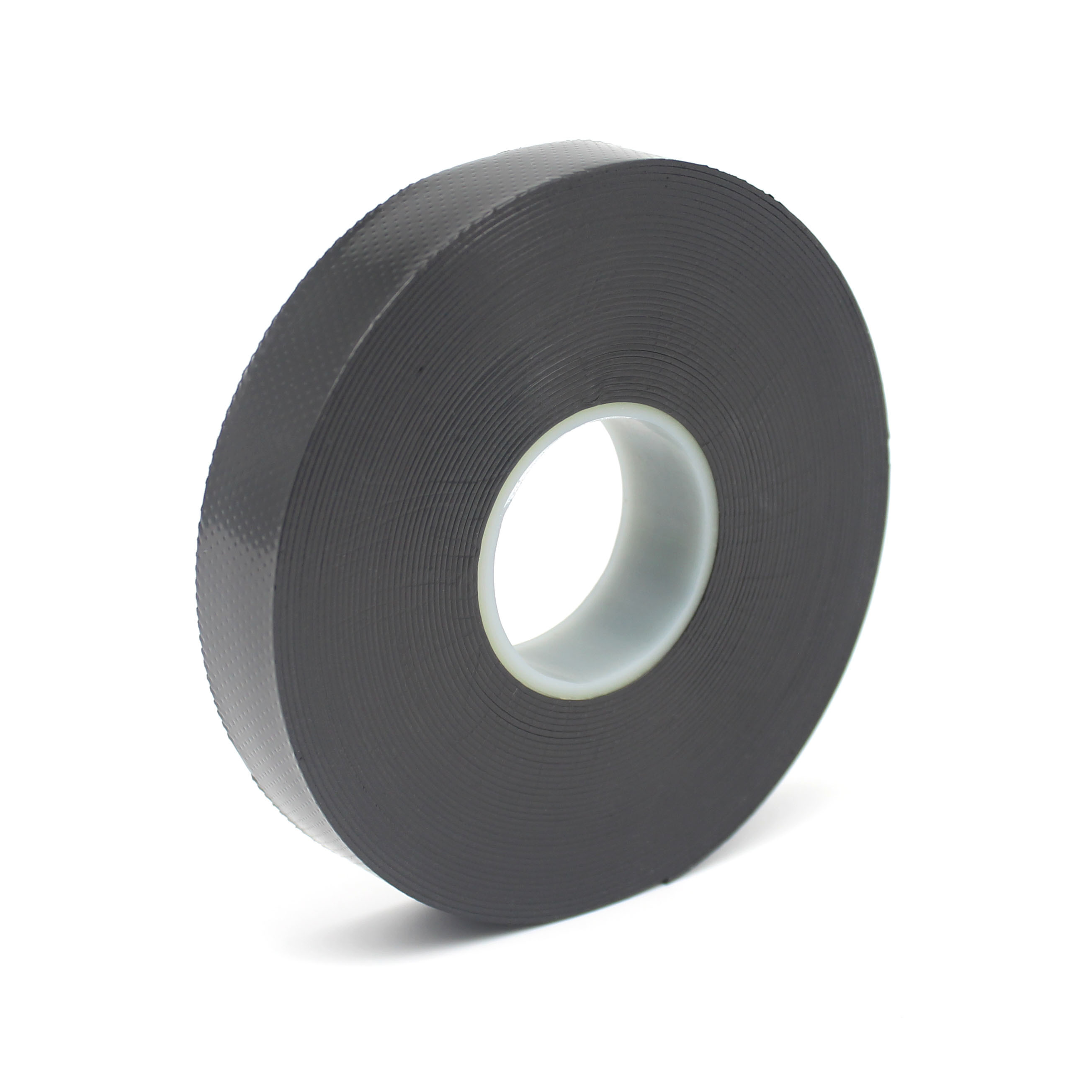

UV-resistance 23 Rubber Splicing Tape

Rubber Splicing Tape 23 has greater physical and electrical properties that are unaffected by the degree of stretch. This tape is highly resistant to split, crack and flag when exposed to indoor or outdoor environments. It is designed to splice and terminate cables whose emergency overload temperatures can reach 266 degrees F (130 degrees C). This self-fusing ethylene propylene rubber, high-insulating voltage tape has a snakeskin liner that is easily removed as the tape is applied. It is compatible with synthetic cables insulations and paper insulations cables.

Specification:

Property	Testing Method	Typical Data
Tensile Strength	ASTM D 638	8 lbs/in (1.4 KN/m)
Ultimate Elongation	ASTM D 638	1000%
Dielectric Strength	IEC 243	800 V/mil (31.5 Mv/m)
Dielectric Constant	IEC 250	3
Insulation Resistance	ASTM D 257	1x10 16Ω·cm
Adhesive and Self-amalgamation		Good
Oxygen Resistance		PASS
Flame Retardant		PASS

Tape Features:

1.1 Can be used to splice and terminate cables whose emergency overload temperatures can reach 266°F (130°C)

1.2 Based on Ethylene Propylene Rubber (EPR)

1.3 Physical and electrical properties are unaffected by the degree of stretch

1.4 Self-fusing tape

1.5 Excellent electrical properties

1.6 A special polyester liner which will not stick to the tape upon unwind

1.7 Compatible with all solid dielectric cable Insulation:

1.7.1 Polyethylene (high and low density)

1.7.2 Cross-linked Polyethylene (XLP)

1.7.3 Polyvinyl Chloride (PVC)

1.7.4 Butyl Rubber

1.7.5 Ethylene Propylene Rubber (PVC)

1.7.6 Oil-based rubber

Application:

2.1 Jacking on high-voltage splices and terminations.

2.2 Supply Moisture sealing for electrical connections and high-voltage cables.

3M Telecom Connection System:

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-23

Minimum Order Quantity:	2000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 PCS Per 7 Days
