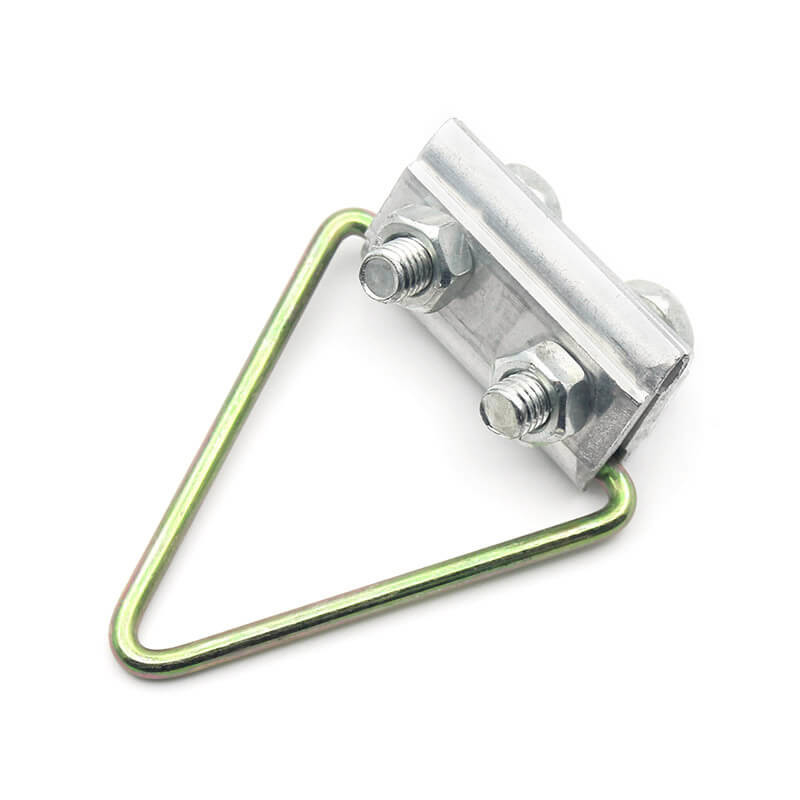

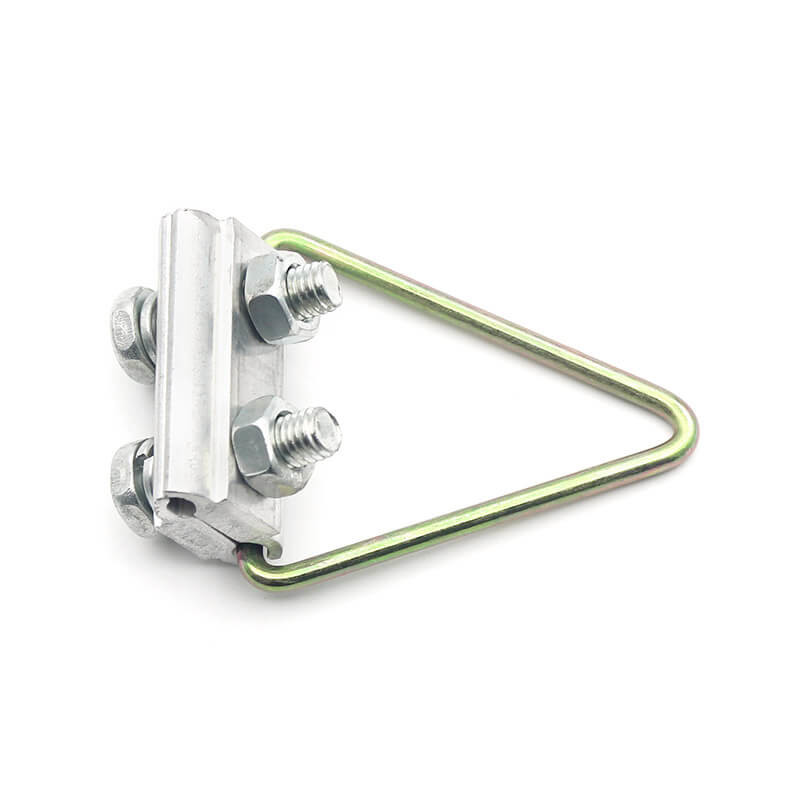

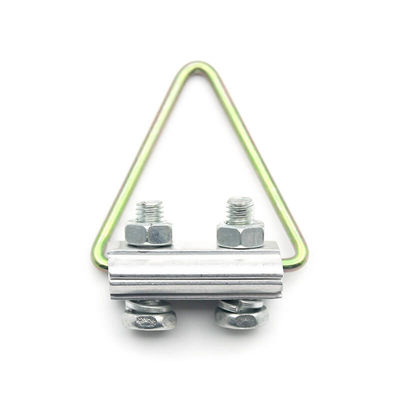

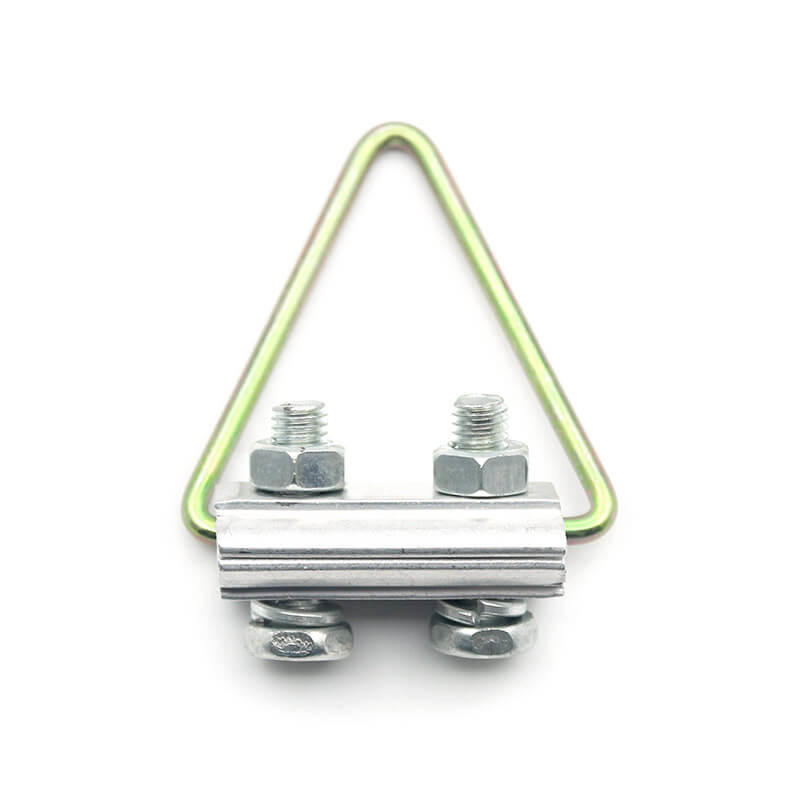

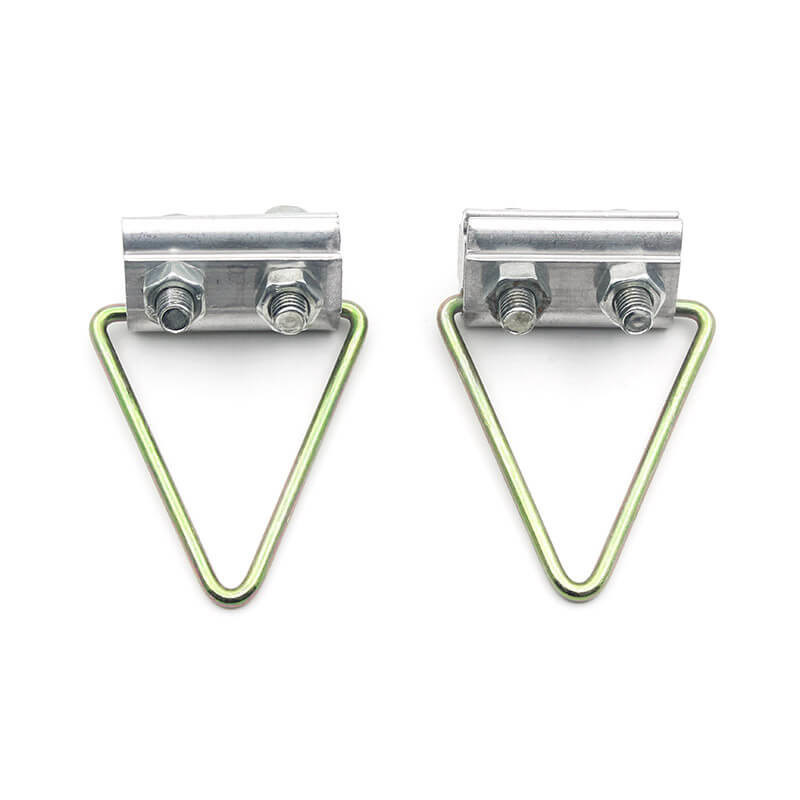

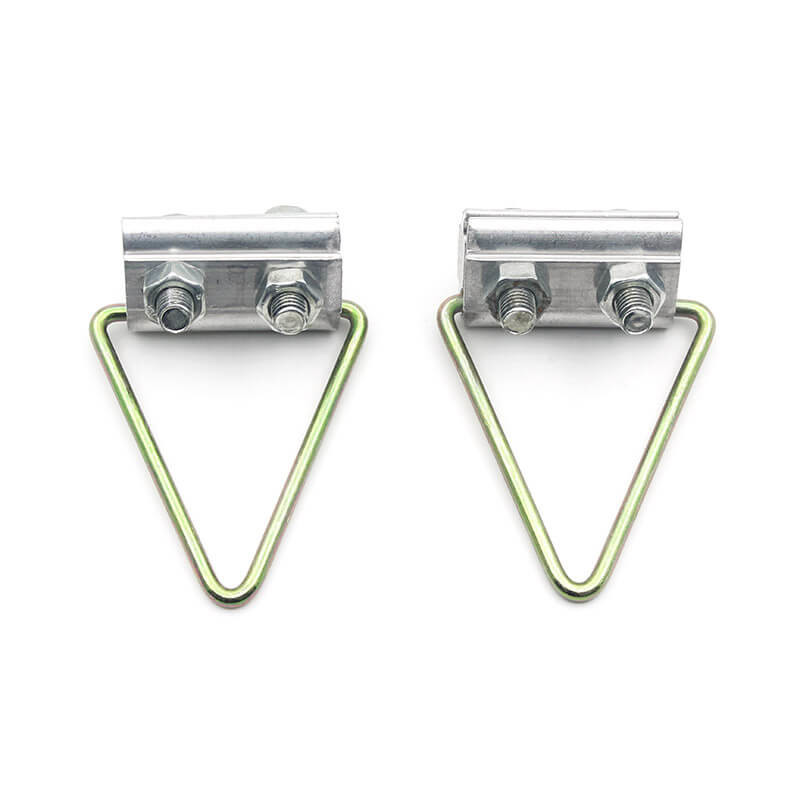

Self Supporting Durable Fiber Suspension Clamp Ftth Cable Clamp

Fasten Figure 8 Cable Pole Line Hardware Cable Fitting

Figure 8 cable clamp is designed to securely fasten fiber optic cables of the figure 8, and its tension load is 2 KN. The diameter of the outer supporting element of the fixed fiber optic cable can be from 4 to 8 mm. The clamp is recommended to be used on intermediate supports of overhead lines, communications, urban electrical facilities, elements of buildings and structures, etc. Designed for suspension of self-supporting optical cable type "8" on intermediate supports of overhead lines up to 20 kV,communications, urban electrical facilities (street lighting, ground electric transport), elements of buildings and structures with a span length of up to 110 m.

Specification:

Benefits:

1.1 Two sizes to cover the full range of Figure 8 cables from 4*5mm to 9*5mm.

1.2 The shape of the J Hook allows a running out of the cable directly in the hook

1.3 The suspension clamps can be directly secured to the poles using bolts or bandings.

Application:

2.1 FTTH drop figure 8 cabling fittings.

Our Package:
