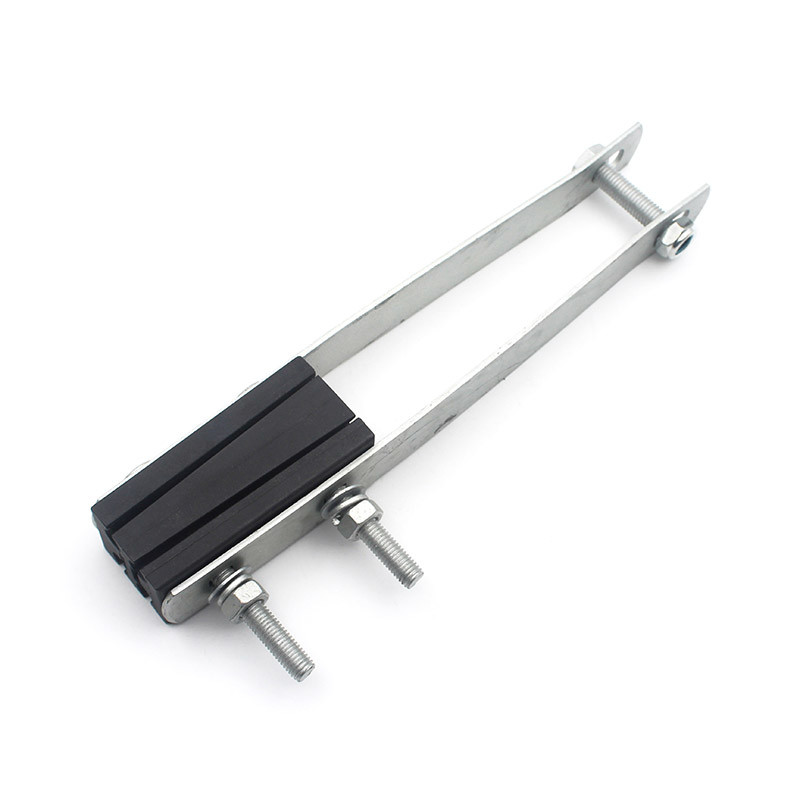

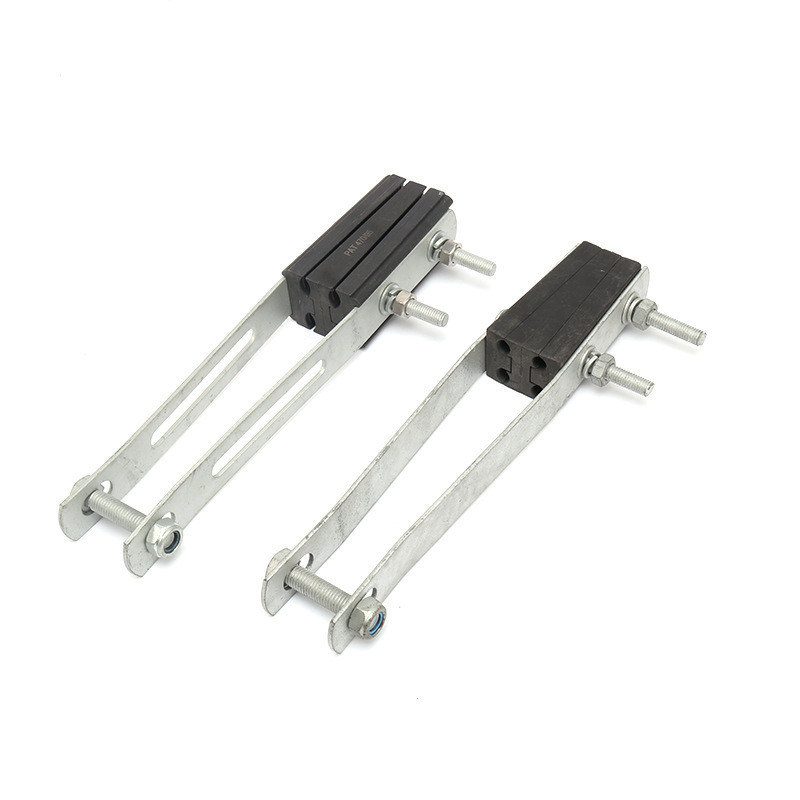

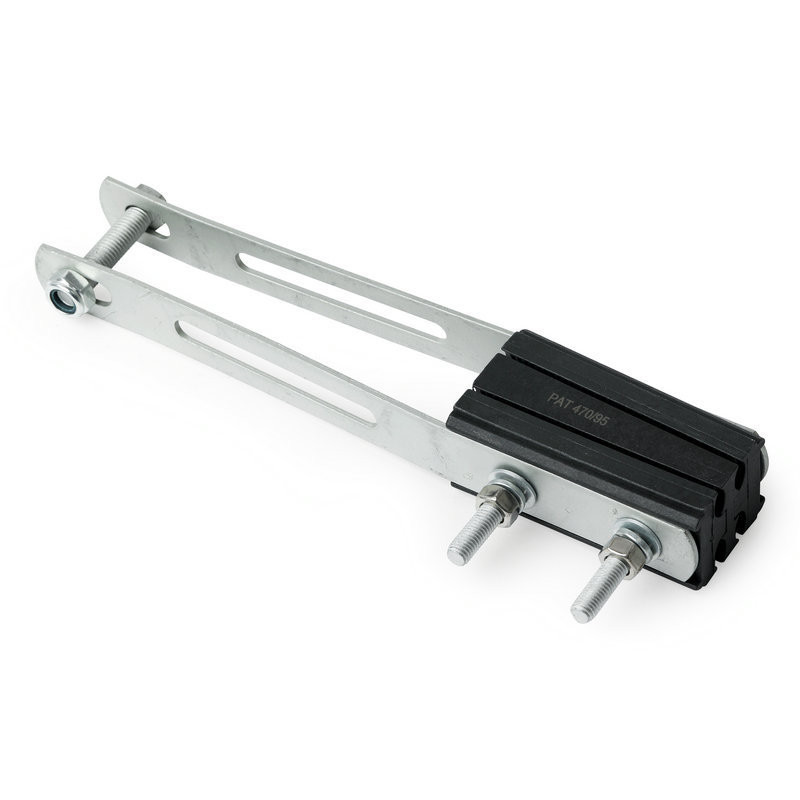

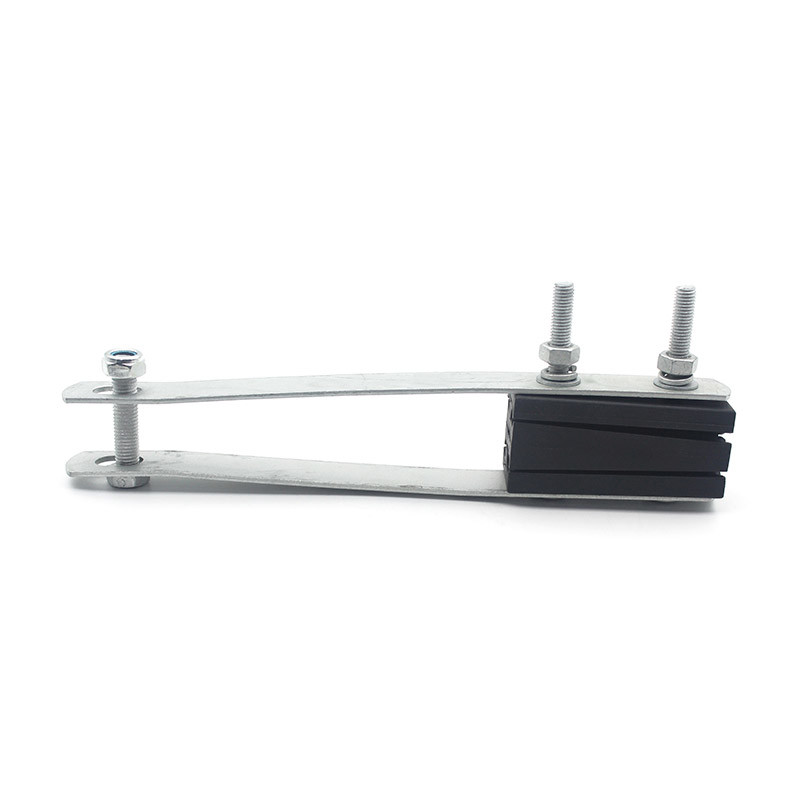

Name: UV Resistant Cable Tension Clamp Polymer PAT For Main Line 4AN Wire Tension Clamp
Brand: DOWELL INDUSTRY GROUP LIMITED
SKU: DW-AH05
Price: 0.50 USD
Availability: InStock

Detail Information

Type:

PAT50, PAT120

DIA.(mm):

11-14, 14-17

MBL(daN):

2000, 3500

Cross Section(mm²):

4x(16-50), 4x(50-120)

Highlight:

UV Resistance Cable Tension Clamp

UV Resistance Wire Tension Clamp

Polymer Cable Tension Clamp

Product Description

UV resistance Polymer PAT Tension Clamp For Main Line 4AN

The anchor clamp is designed to anchor insulated main line with 4 conductors to the Pole, or service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad. One core Anchor clamps are design to supporting the neutural messenger, the wedge can be selfadjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

Specification:

Type	Cross section(mm²)	Messenger DIA.(mm)	MBL(daN)
PAT50	4x(16-50)	11-14	2000
PAT120	4x(50-120)	14-17	3500

Application:

PAT tension clamp are applicable to four-core self-supporting low voltage aerial cables. These clamps are used for anchoring and tightening insulated conductors.

UV Resistant Cable Tension Clamp Polymer PAT For Main Line 4AN Wire Tension Clamp 0

Our Package:

More Sizes:

Production Flow:

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-AH05

Minimum Order Quantity:	100 Pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 PCS Per 7 Days
