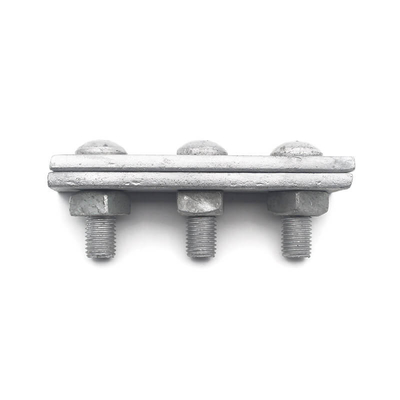

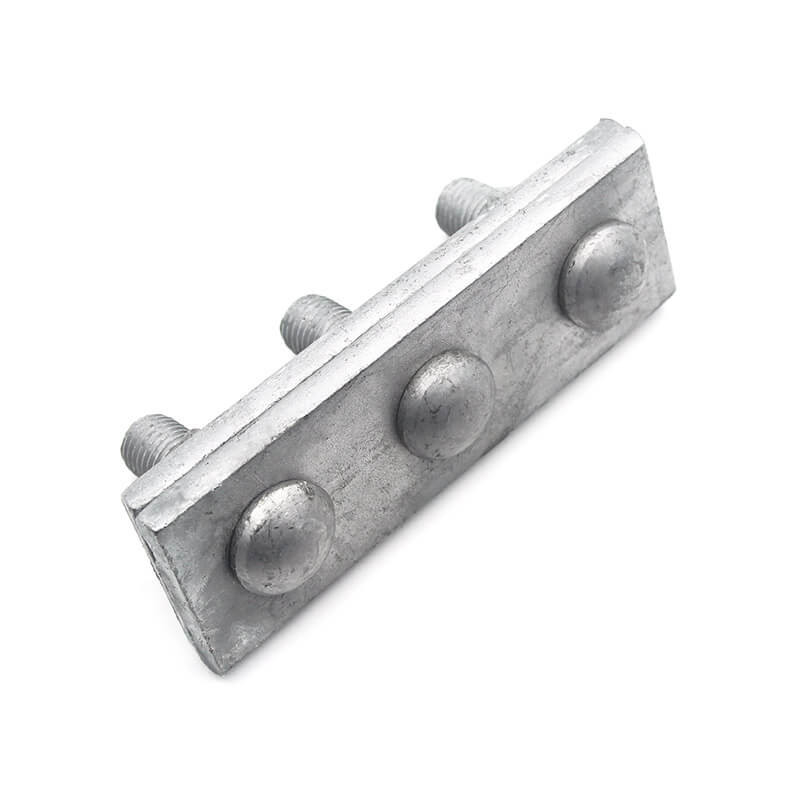

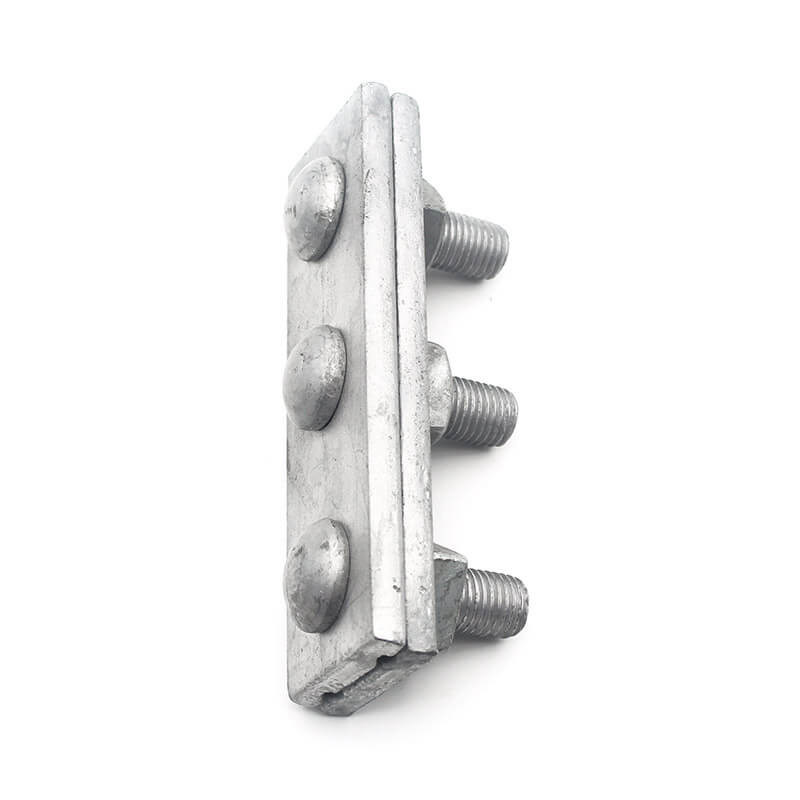

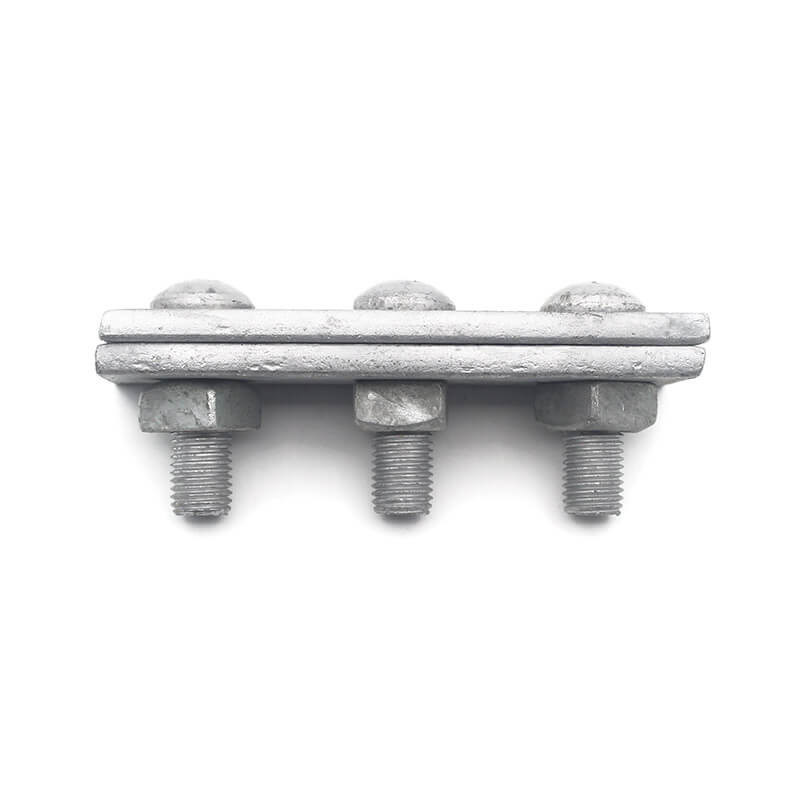

Durable 3 Bolt Guy Clamp Parallel Groove Clamp Hot Galvanized

Durable 3 Bolt Guy Clamp Parallel Groove Clamp Hot Galvanized
Durable 3 Bolt Guy Clamp Parallel Groove Clamp Hot Galvanized Durable 3 Bolt Guy Clamp Parallel Groove Clamp Hot Galvanized Durable 3 Bolt Guy Clamp Parallel Groove Clamp Hot Galvanized

Large Image :  Durable 3 Bolt Guy Clamp Parallel Groove Clamp Hot Galvanized

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-AH07
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

Durable 3 Bolt Guy Clamp Parallel Groove Clamp Hot Galvanized

Description
Highlight:

Durable 3 Bolt Guy Clamp

,

Hot Galvanized 3 Bolt Guy Clamp

,

Hot Galvanized Parallel Groove Clamp

ADSS OPGW Cable Parallel Groove Clamp with 3 Bolts ADSS OPGW Cable

Parallel groove clamp mainly used on the communication line and transmission line, it is used in loop type guy dead-ends together with the stay wire and anchor rod to make the pole stable. The guy clamp is also called guy wire clamp. According to the number of bolts, there are 3 types:1 bolt guy clamp, 2 bolt guy clamp, and 3 bolt guy clamp. 3 bolt clamp is most used due to its excellent performance.In another installation way, the guy clamp is replaced by the wire rope clip or guy grip. Some types of guy clamps have curved ends, protecting the wire from damage. The guy clamp consist of two plates with three bolts equipped with nuts. The clamping bolts have special shoulders to prevent turning when the nuts are tightened.
Specification:
No.of Bolt Bolt Diameter Inch Clamp Dimension mm
Length Width Thicknes
1 1/2 42 44 9.1
1 5/8 50 44 9.1
2 1/2 62 44 9.1
2 5/8 70 44 9.1
3 1/2 100 44 9.1
3 5/8 152 44 9.1

Application:

1. Used to secure figure 8 cable to telephone poles.

Durable 3 Bolt Guy Clamp Parallel Groove Clamp Hot Galvanized 0

Dimension:

Durable 3 Bolt Guy Clamp Parallel Groove Clamp Hot Galvanized 1

Our Package:

Durable 3 Bolt Guy Clamp Parallel Groove Clamp Hot Galvanized 2

Durable 3 Bolt Guy Clamp Parallel Groove Clamp Hot Galvanized 3
