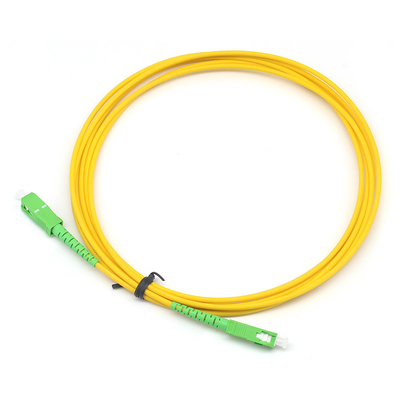

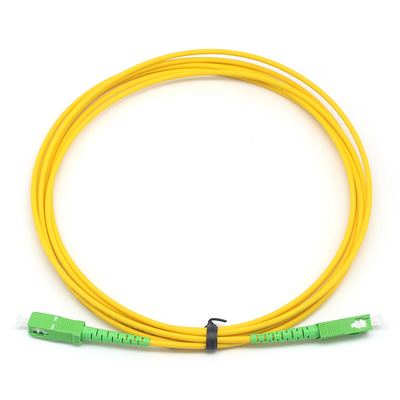

Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center

Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center
Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center
Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center

Large Image :  Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Certification: CE
Model Number: DW-SAS-SAS
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center

Description
Mode Type: SM, MM Fiber Type: G652D/G657A
Connector Type: SC, LC, FC, ST, E2000N, MTRJN, MPO Jacket: PVC, LSZH
Highlight:

simplex fiber patch cables

,

simplex fiber optic patch cord

,

sc fiber patch cables

Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center

Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

Specification

Parameter Unit Mode PC UPC APC
Type
Insertion Loss dB SM <0.3 <0.3 <0.3
MM <0.3 <0.3
Return Loss dB SM >50 >50 >60
MM >35 >35
Repeatability dB Additional loss<0.1db, return loss< 5 dB
Interchangeability dB Additional loss<0.1db, return loss< 5 dB
Connection Times times >1000
Operating Temperature °C -40 C- +75 C
Storage Temperature °C -40 C- +85 C

Application

Fiber Optic Splicing: Used to connect fiber optic cables in splice trays or closures.

Patch Panels: Installed in fiber distribution frames or patch panels for easy connectivity.

Termination Points: Used to terminate fiber optic cables in network cabinets or enclosures.

FTTH (Fiber to the Home): Deployed in residential fiber installations.

Data Centers: For high-density fiber connections between equipment.

Telecommunications: In central offices and outside plant (OSP) installations.

Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center 0

Production Flow

Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center 1

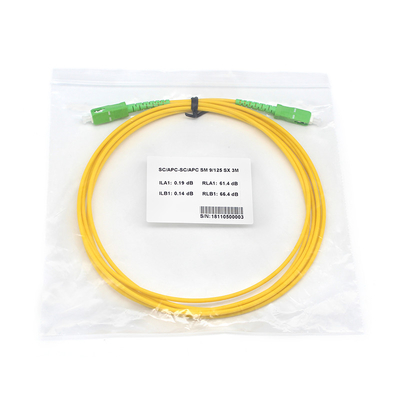

Our Package

Simplex Fiber patch cable SC APC to SC APC Single-mode For Data Center 2
