Detail Information

Parameter:	1N, 2N	Bandwidth:	1260～1650nm
Return Loss:	≥55.0dB	Directivity:	≥55dB
Operating Temperature:	-40～+85	Storage Temperature:	-40～+85
Highlight:	ftth adsl vdsl tester , ftth network cable crimping tools , sc adsl vdsl tester

Product Description

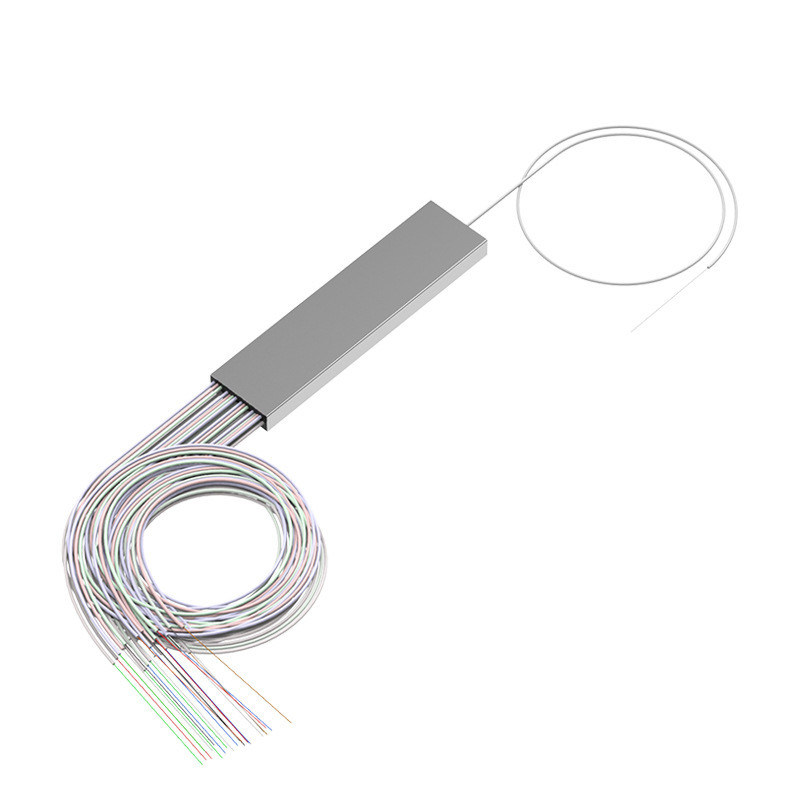

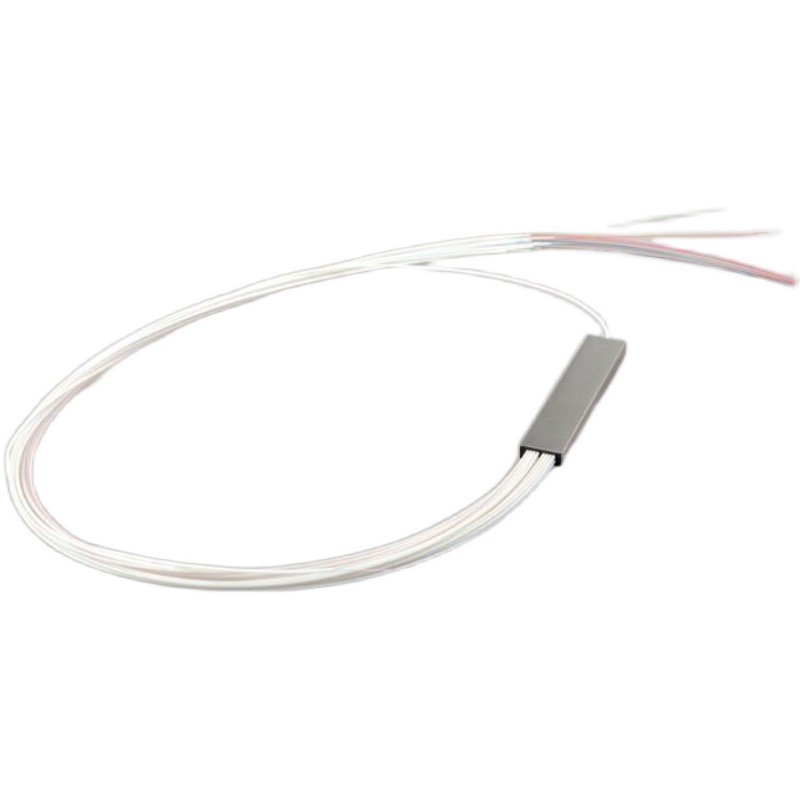

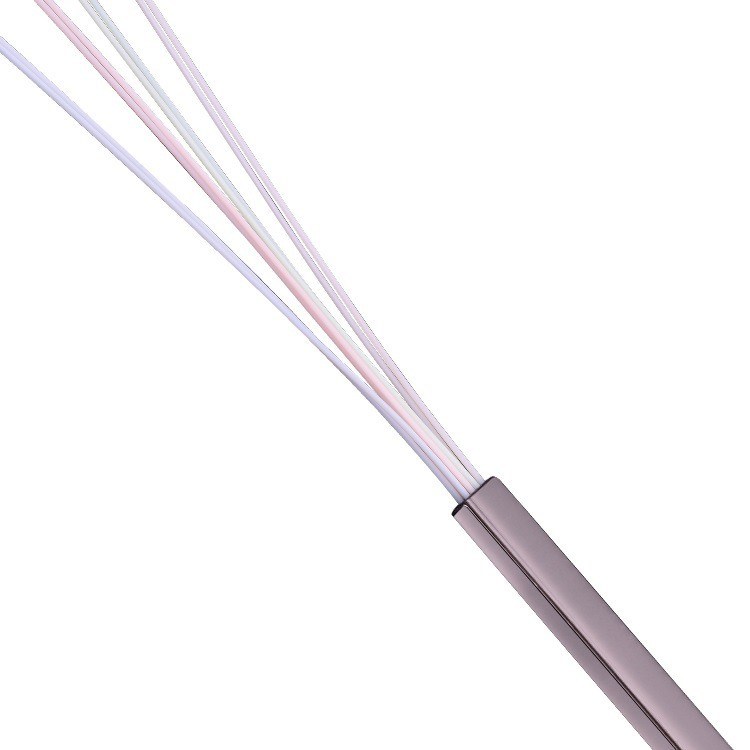

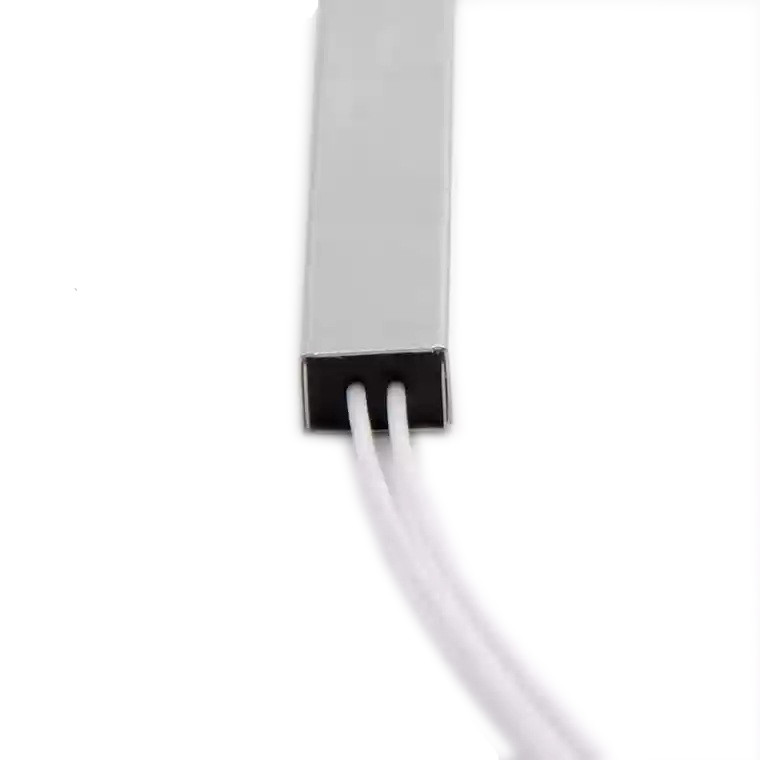

Bare Type 1X16 1X32 1X64 Fiber Optic PLC Splitter Without Connector

A Bare Type PLC Splitter is a type of Planar Lightwave Circuit (PLC) splitter that comes without any protective packaging, such as a metal or plastic housing. It is typically just the bare optical chip with input and output fiber arrays, making it more compact and cost-effective but also more vulnerable to environmental factors.

Specification:

Description	Unit	Parameter
		1x2	1×4	1×8	1×16	1×32	1×64
Bandwidth	nm	1260～1650
Insertion Loss	dB	≤3.9	≤7.2	≤10.3	≤13.5	16.9	≤20.4
PDL	dB	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.4
Loss Uniformity	dB	≤0.6	≤0.8	≤0.8	≤1.2	≤1.6	≤2.0
Return Loss	dB	≥55
Operating Temperature	℃	-40～+85
Storage Temperature	℃	-40～+85
Directivity	dB	≥55
Note:
1. The fiber optic cable is single mode and the splitter is divided equally;

Bare Type 1X16 1X32 1X64 Fiber Optic PLC Splitter Without Connector 0

Features:

1.1 PLC (Planar Light-wave Circuit) splitter is fabricated by using silica optical waveguide technology.

1.2 Good channel-to-channel uniformity, high reliability and small size

1.3 Widely used in PON networks

1.4 1 x N and 2 x N splitters that are tailored for specific applications.

Application:

2.1 FTTX (FTTP,FTTH,FTTN,FTTC)

2.2 Passive Optical Network (PON) & CATV System

2.3 Telecommunication Network and Fiber Optic Sensors

Advantages:

3.1 Small size – Fits in tight spaces.

3.2 Lower cost – No extra housing expenses.

3.3 Flexible installation – Can be integrated into custom enclosures.

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-1X8

Minimum Order Quantity:	500 pieces
Packaging Details:	Single item
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days
