Detail Information

Diameter:	0.9mm	Material:	Hytrel、PVC、LSZH Or Customized
Humidity:	≤95%（+40℃）	Color:	Yellow Or Cusomized
Operating Temp:	-40~85℃	Storage Temp:	-40~85℃
Highlight:	sc adsl vdsl tester , sc network cable crimping tools , apc adsl vdsl tester

Product Description

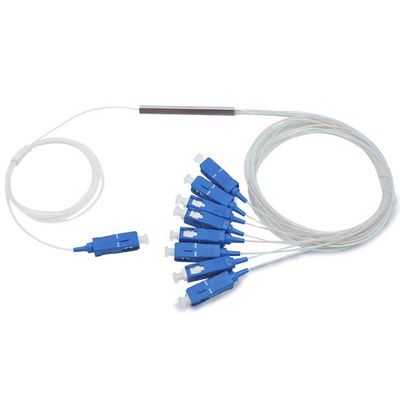

PVC LSZH 1X8 Fiber Optic PLC Splitter Mini Type 1m, 1.5m With SC UPC Connector

A Mini Type PLC Splitter is a compact version of a Planar Lightwave Circuit (PLC) splitter, designed for space-saving installations in fiber optic networks. PLC splitters are passive optical devices that evenly divide an input optical signal into multiple output signals, commonly used in FTTH (Fiber-to-the-Home), PON (Passive Optical Network), and other fiber distribution systems.

Specification:

	nx2, nx4, nx8		1x16	2x16,nx32	nx64	Tube type
L(mm)	55	60	60	80	100	diameter:Φ0.9mm or customized
W(mm)	7	7	12	20	40	Material: Hytrel,PVC,LSZH or customized
H(mm)	4	4	4	6	6	Color:blue, orange, green, brown, grey, white, red, black, or customized

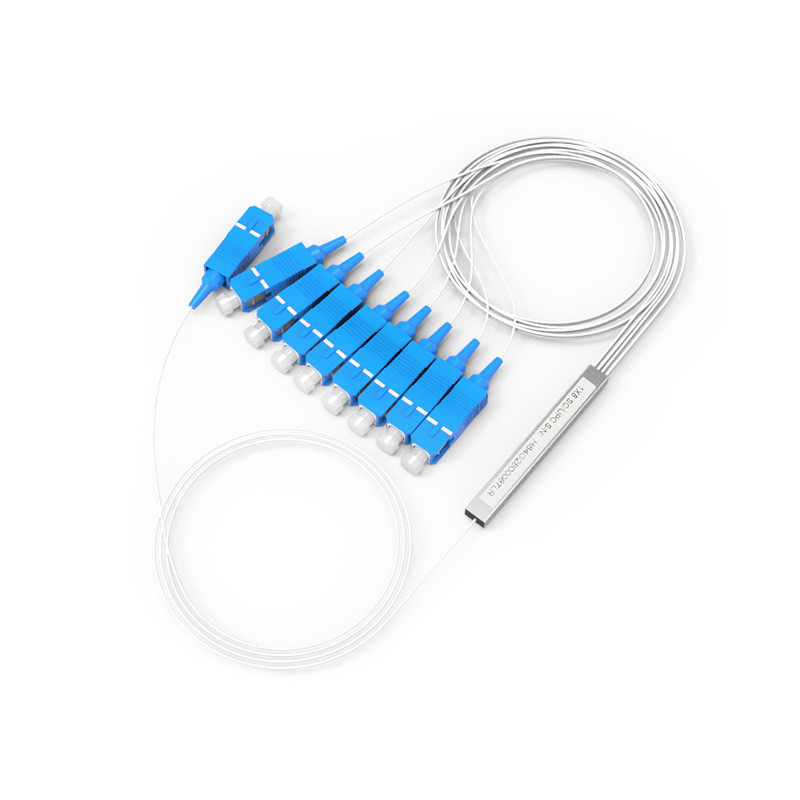

PVC LSZH Fiber Optic PLC Splitter Mini Type 1m, 1.5m With SC UPC Connector 0

Features:

1.1 Compact Size – Smaller than standard PLC splitters, making them ideal for high-density installations.
1.2 High Reliability – Uses PLC technology for stable performance with low insertion loss.
1.3 Uniform Splitting – Evenly distributes optical power across all output ports (e.g., 1×4, 1×8, 1×16, 1×32, 1×64).
1.4 Low Insertion Loss – Typically ranges from 3.6 dB (1×2) to ~21 dB (1×64).
1.5 Wide Operating Wavelength – Supports 1260–1650 nm, compatible with single-mode fibers.
1.6 Various Packaging Options:
Bare Fiber (Mini Blockless)
ABS Module (Box Type)
LGX Cassette (Rack-Mountable)
Fanout / Steel Tube Type

Common Split Ratios:

2.1 1×2, 1×4, 1×8, 1×16, 1×32, 1×64
2.2 2×4, 2×8, 2×16, 2×32, 2×64 (for redundancy)

Applications:
3.1 FTTH (Fiber-to-the-Home) Networks
3.2 PON (GPON, EPON, XGSPON) Systems
3.3 CATV & Telecommunication Distribution

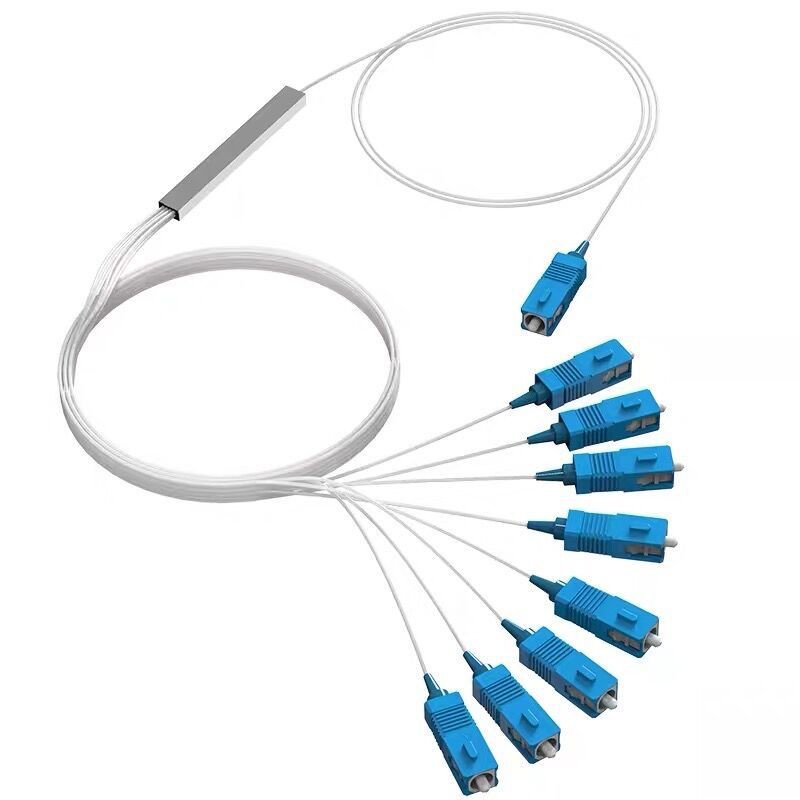

3.4 Data Centers & Local Area Networks (LAN) PVC LSZH Fiber Optic PLC Splitter Mini Type 1m, 1.5m With SC UPC Connector 1

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-M1X8

Minimum Order Quantity:	500 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500 PCS Per 7 Days

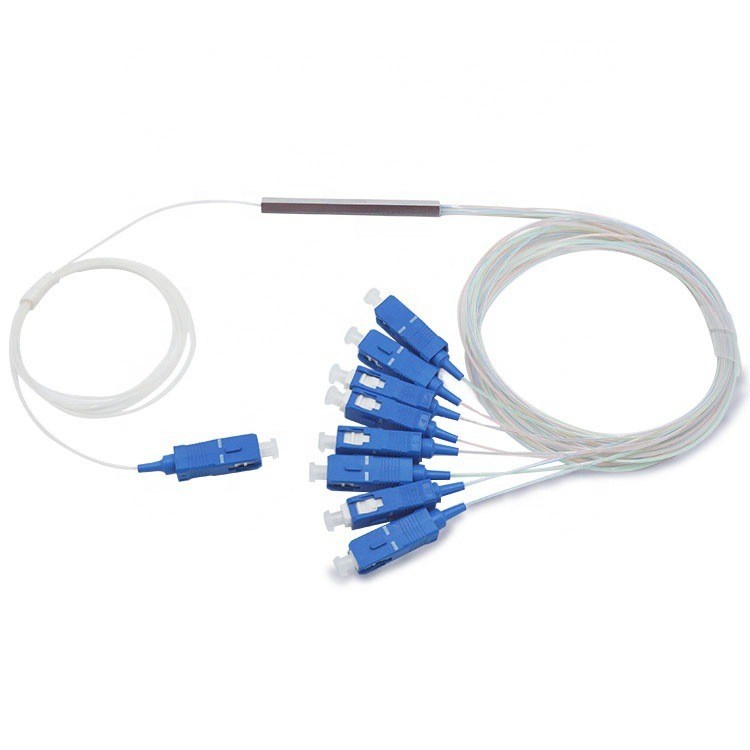

PVC LSZH Fiber Optic PLC Splitter Mini Type 1m, 1.5m With SC UPC Connector
