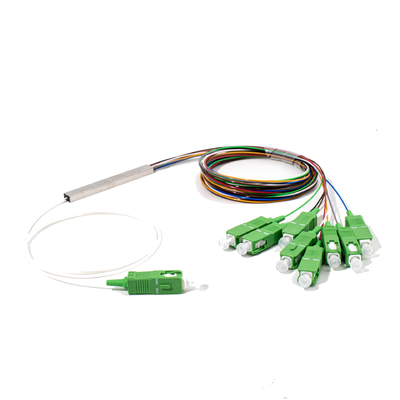

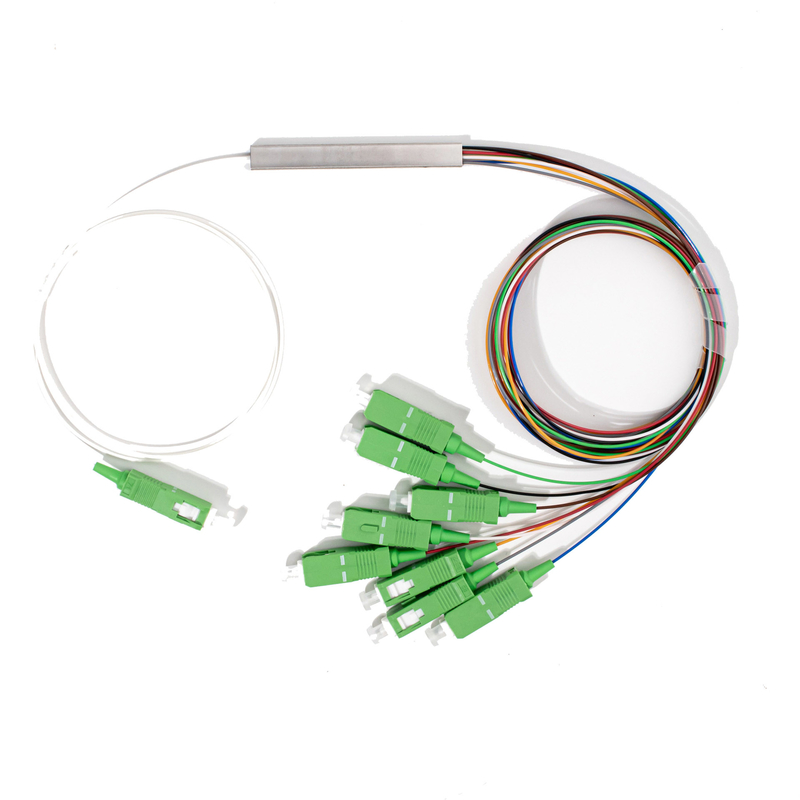

Fiber Optic 1X8 Mini PLC splitter SC APC Connector 0.9mm, 1M

Fiber Optic 1X8 Mini PLC splitter SC APC Connector 0.9mm, 1M
Fiber Optic 1X8 Mini PLC splitter SC APC Connector 0.9mm, 1M Fiber Optic 1X8 Mini PLC splitter SC APC Connector 0.9mm, 1M Fiber Optic 1X8 Mini PLC splitter SC APC Connector 0.9mm, 1M Fiber Optic 1X8 Mini PLC splitter SC APC Connector 0.9mm, 1M

Large Image :  Fiber Optic 1X8 Mini PLC splitter SC APC Connector 0.9mm, 1M

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-M1X8
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS Per 7 Days
Contact Now

Fiber Optic 1X8 Mini PLC splitter SC APC Connector 0.9mm, 1M

Description
Parameter: 1X2, 1x4, 1x8, 1x16, 1x32, 1x64 Wavelength: 1260 ～ 1650nm
Operating Temp: -40~85℃ Storage Temp: Storage Temp
Humidity: ≤95%（+40℃） Connector: SC, FC, LC
Highlight:

ftth adsl vdsl tester

,

ftth network cable crimping tools

,

sc adsl vdsl tester

Fiber Optic 1X8 Mini PLC splitter SC APC Connector 0.9mm, 1M

A mini-type fiber optic PLC (Planar Lightwave Circuit) splitter is a compact, high-performance passive optical device used to split an incoming optical signal into multiple output signals with minimal loss. It is widely used in FTTH (Fiber to the Home), PON (Passive Optical Network), and other fiber optic communication systems.

Specification:

1×N(N≥2)PLC Splitter(with connector)optical parameter





Parameter 1X2 1x4 1x8 1x16 1x32 1x64
Wavelength(nm) 1260 ～ 1650
IL(dB) ≤4.1 ≤7.4 ≤10.5 ≤13.8 ≤17.1 ≤20.4
Uniformity(dB) ≤0.6 ≤0.7 ≤0.8 ≤1.0 ≤1.5 ≤2.0
RL(dB) ≥50(PC),≥55(APC)
PDL(dB) ≤0.15 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Environment Operating temp(℃) -40~85℃
Storage temp(℃) -40~85℃
Humidity ≤95%(+40℃)
Atmospheric pressure 62~106kPa
Fiber SM G657A or customized
Connector SC, FC, LC
Pigtail(mm) 1000, 1500, 2000 or customized
Remark :(1) Test in room temperature and include connector.

                 (2) R ≥55dB without connector

Features:

1.1 Qualified with CE certificate and ROHS certificate.

1.2 Comply with GR-1209-CORE, GR-1221-CORE, YD/T 2000.1-2014 and IEC criterion.

Application:

2.1 FTTH (Fiber to the Home) networks
2.2 PON (Passive Optical Network) systems (GPON, EPON, XGSPON)
2.3 CATV & telecom distribution
2.4 Data centers & enterprise networks

Fiber Optic 1X8 Mini PLC splitter SC APC Connector 0.9mm, 1M 0
