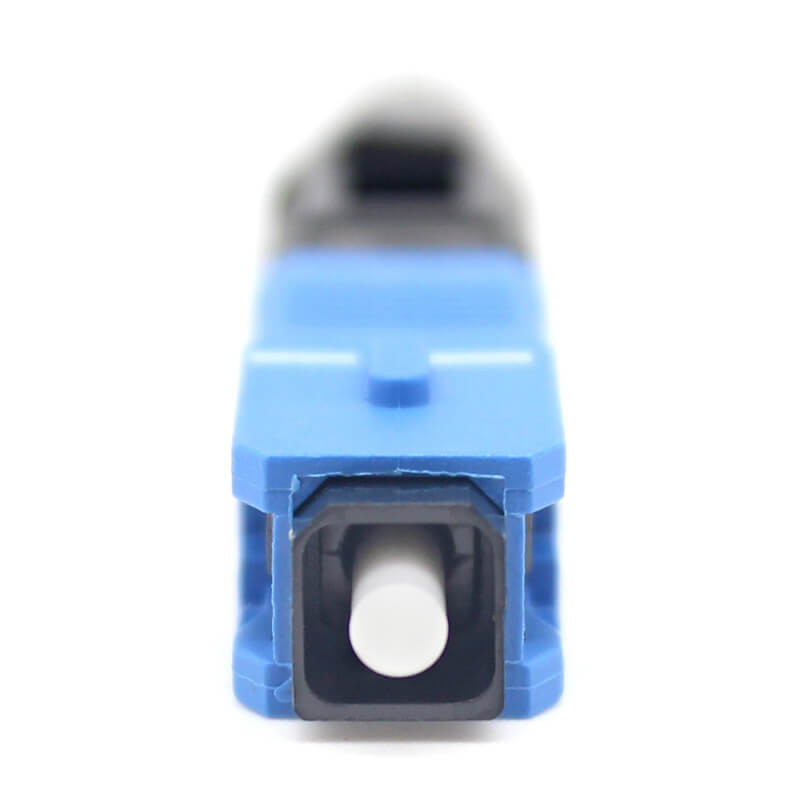

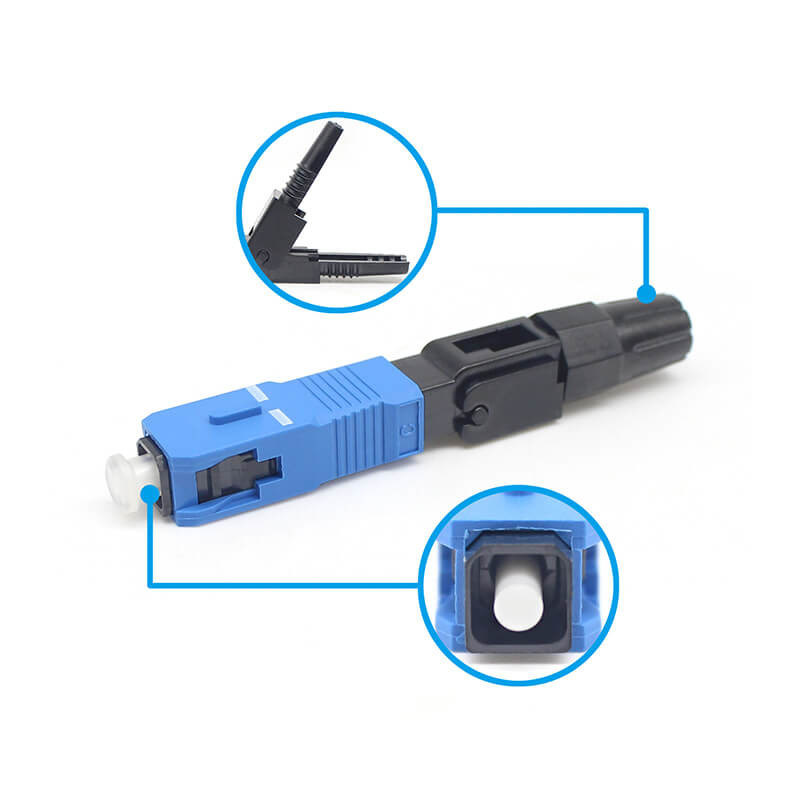

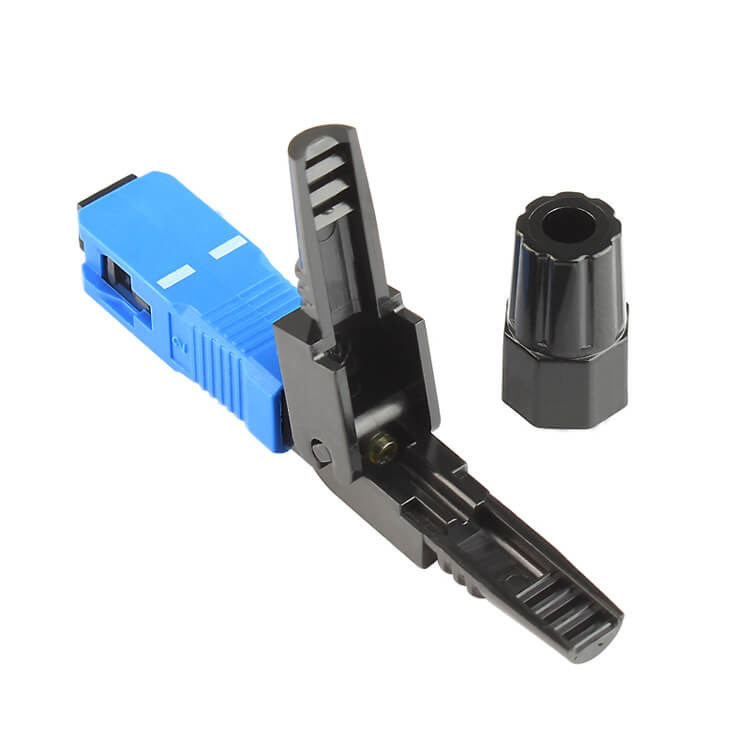

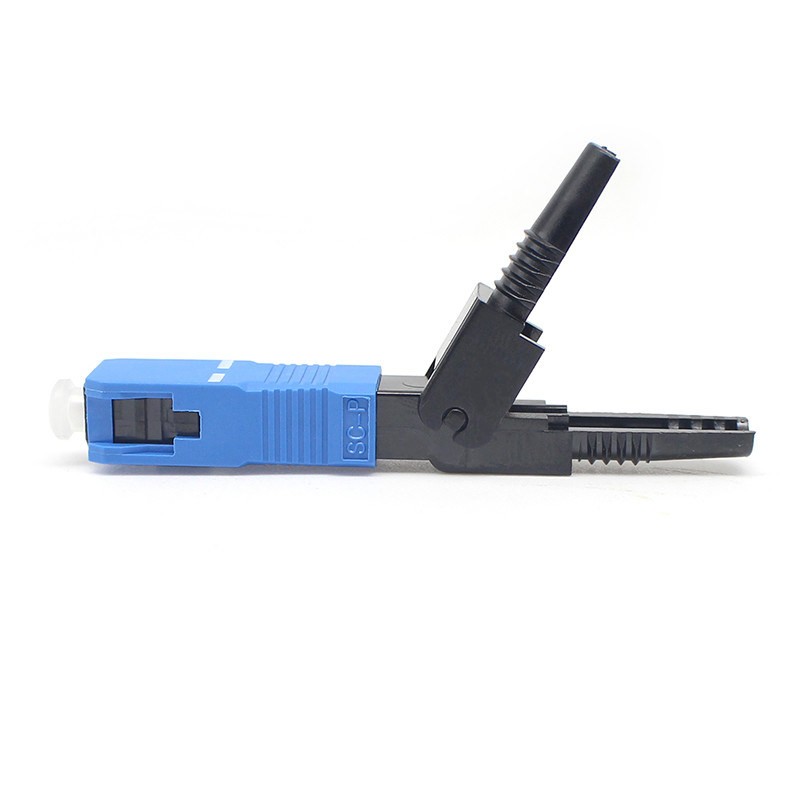

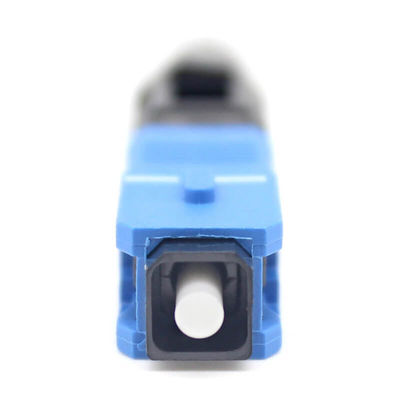

Embedded Type Optical Fiber Fast Connector SC/UPC

Embedded Type Optical Fiber Fast Connector SC/UPC
Embedded Type Optical Fiber Fast Connector SC/UPC Embedded Type Optical Fiber Fast Connector SC/UPC Embedded Type Optical Fiber Fast Connector SC/UPC Embedded Type Optical Fiber Fast Connector SC/UPC

Large Image :  Embedded Type Optical Fiber Fast Connector SC/UPC

Product Details:
Place of Origin: China,Zhejiang
Brand Name: DOWELL
Model Number: DW-1041-U
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

Embedded Type Optical Fiber Fast Connector SC/UPC

Description
Mode: SM SC/UPC Size: 50 X 8.7 X 8.3 Mm
Coating Diameter: 250μm Fiber Diameter: 125μm ( 652 & 657 )
Tension: 20N Temperature: 40℃～+85℃
Highlight:

sc lc fiber connector

,

sc waterproof fiber optic connector

,

upc lc fiber connector

250μm SC/UPC Optical Fiber Fast Connector

Fiber optic fast connectors are widely used in scenarios requiring quick, on-site termination without the need for splicing machines or lengthy polishing processes. Are best suited for FTTH, quick repairs, data centers, and field deployments where speed and simplicity matter. For permanent, low-loss links, fusion splicing is still preferred.

Specification:

Cable Scope ① 3.0 x 2.0 mm bow-type drop cable
②Φ0.9mm fiber cable		 Size 50 x 8.7 x 8.3 mm
without dust cap
Fiber Diameter 125μm ( 652 & 657 ) Coating Diameter 250μm
Mode SM SC/UPC Operation Time about 15s (exclude fiber presetting)
Insertion Loss ≤0.3dB (1310nm & 1550nm) Return Loss ≥55dB
Success Rate >98% Reusable Times >10 times

Application:

1. Connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.

Embedded Type Optical Fiber Fast Connector SC/UPC 0

Package:

Embedded Type Optical Fiber Fast Connector SC/UPC 1

Tag:

sc fiber connector,

lc upc connector,

fiber optic cable ends
